Product Model: NECM000HSD00
Retail Price: US$6,891.00
Email Us To Get Special Price Now: [email protected]
Huawei NetEngine05E router NECM000HSD00 is cloud service architecture design oriented, large cache to ensure the best service experience; IP pipeline firmness and flexibility, support IP soft pipes for statistical multiplexing to improve resource efficiency and IP hard pipe exclusive resources to ensure the best customer experience. Huawei NetEngine series Mid-range Service router NECM000HSD00 help customers implement new services quickly on-line, help customers build resilient and scalable networks.
1) 24Gbps Forwarding Performance with Service
2) 4 * Gigabit Ethernet SFP, 4 * Gigabit Ethernet ports,4 * GE Combo(RJ-45/SFP),16E1 ports, DC power supply
3) Any service bearer solutions portfolio: MS PW, L3VPN to edge, Native IP, MPLS-TP and so on
4) Any environment installation: can be mounted in the cabinet, on the wall, pole and desktop, rain and dust protection design, covering indoor and outdoor installation environment
5) Leading industrial design, energy efficiency green concept, environment protection
Quick Specs

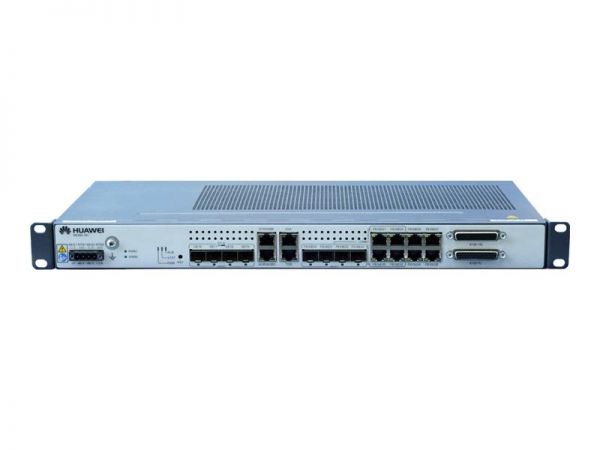

Figure 1 shows the appearance of Huawei Router – NECM000HSD00.
?
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router – NECM000HSD00 |
|
Forwarding Capacity |
24 Gbit/s |
|
Forwarding Capability (IMIX) |
17.856 Mpps |
|
Interfaces |
4 x GE/FE(O) + 4 x G |
|
Clock |
1588 V2, ACR, E1 line clock, and sync clock |
|
Slots |
none |
|
Power COM |
30.55W |
|
Weight |
4?kg |
|
Dimensions (W x D x H) |
44.45 mm x 442 mm x 220 mm (1U) |
Compare to Similar Items
Table 2 shows the comparison between NECM000HSD00 and NECM00HOST06.?
|
Model |
NECM000HSD00 |
NECM00HOST06 |
|
Forwarding Capacity |
24 Gbit/s |
24 Gbit/s |
|
Forwarding Capability (IMIX) |
17.856 Mpps |
17.85 Mpps |
|
Interfaces |
4 x GE/FE(O) + 4 x G |
10 GE/GE/FE, Smart E1/T1, Channelize STM-1, GPON, XDSL, RS232, RS485, FXO, FSO, E&M, and X.21/V.35/X.24, etc. |
|
Slots |
none |
1 MPU 2 FICs |
|
Weight |
4?kg |
4.8 kg |
|
Dimensions (W x D x H) |
44.45 mm x 442 mm x 220 mm (1U) |
44.45 mm x 442 mm x 220 mm (1U) |
Get more information
Do you have any?question?about?the?NECM000HSD00
Contact us now via Live Chat or [email protected].
Specification
NECM000HSD00 Datasheet
NECM000HSD00 Specification |
|
|
Forwarding Capacity (IPv4/IPv6) |
24 Gbit/s |
|
Forwarding Capability (IMIX) |
17.856 Mpps |
|
Interfaces |
SH: 4 x GE/FE(O) + 4 x GE/FE(E) + 4 x GE/FE Combo + 2 x 8 E1 |
|
Clock |
1588 V2, ACR, E1 line clock, and sync clock |
|
Power COM |
SH: 30.55W |
|
Voltage |
-38.4V to -72V DC 100V to 240V AC |
|
Slots |
0 |
|
Dimensions (H x W x D) |
44.45 mm x 442 mm x 220 mm (1U) |
|
Weight |
4 kg |
|
Operating Temperature |
-40°C to 65°C |
|
Humidity |
5% RH to 95% RH, non-condensing |
