Product Model: NECM000AIC00
Retail Price: US$2,982.00
Email Us To Get Special Price Now: [email protected]
Huawei NetEngine NE05E-SJ series Mid-range Service router NECM000AIC00 has 2 * Gigabit Ethernet ports and AC power supply. By utilizing SDN technology, the routing control plane of Huawei NE05E can be moved to the aggregation layer router for unified management, the NE05E device can be virtualized as aggregation layer remote boards to achieve centralized control, and all network operations for edge routers can concentrate on the aggregation routers, so as to simplify the network, improve operation and maintenance efficiency.
1) 24Gbps Forwarding Performance with Service, 2 * Gigabit Ethernet, AC power supply
2) Any service bearer solutions portfolio: MS PW, L3VPN to edge, Native IP, MPLS-TP and so on
3) Any environment installation: can be mounted in the cabinet, on the wall, pole and desktop, rain and dust protection design, covering indoor and outdoor installation environment
4) Leading industrial design, energy efficiency green concept, environment protection
Quick Specs

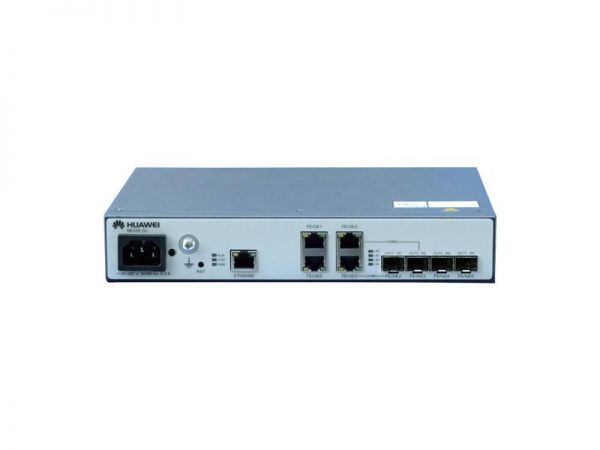

Figure 1 shows the appearance of Huawei Router – NECM000AIC00.
?
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router – NECM000AIC00 |
|
Forwarding Capacity |
12 Gbit/s |
|
Forwarding Capability (IMIX) |
8.688 Mpps |
|
Interfaces |
2 x FE/GE(O) + 2 x GE/GE(E) + 2 x FE/GE Combo |
|
Clock |
1588 V2, ACR, E1 line clock, and sync clock |
|
Slots |
none |
|
Power COM |
9.9W |
|
Weight |
1.81 kg |
|
Dimensions (W x D x H) |
44 mm x 250 mm x 180 mm |
Compare to Similar Items
Table 2 shows the comparison between NECM000AIC00 and NECM00HOST06.?
|
Model |
NECM000AIC00 |
NECM00HOST06 |
|
Forwarding Capacity |
12 Gbit/s |
24 Gbit/s |
|
Forwarding Capability (IMIX) |
8.688 Mpps |
17.85 Mpps |
|
Interfaces |
2 x FE/GE(O) + 2 x GE/GE(E) + 2 x FE/GE Combo |
10 GE/GE/FE, Smart E1/T1, Channelize STM-1, GPON, XDSL, RS232, RS485, FXO, FSO, E&M, and X.21/V.35/X.24, etc. |
|
Slots |
none |
1 MPU 2 FICs |
|
Weight |
1.81 kg |
4.8 kg |
|
Dimensions (W x D x H) |
44 mm x 250 mm x 180 mm |
44.45 mm x 442 mm x 220 mm (1U) |
Get more information
Do you have any?question?about?the?NECM000AIC00
Contact us now via Live Chat or [email protected].
Specification
NECM000AIC00 Datasheet
NECM000AIC00 Specification |
|
|
Forwarding Capacity (IPv4/IPv6) |
8 Gbit/s |
|
Forwarding Capability (IMIX) |
688 Mpps |
|
Interfaces |
2 x FE/GE(O) + 2 x GE/GE(E) + 2 x FE/GE Combo Support GPON ONU |
|
Clock |
1588 V2, ACR, E1 line clock, and sync clock |
|
Power COM |
9.9W |
|
Voltage |
90V to 260V AC |
|
Slots |
0 |
|
Dimensions (H x W x D) |
44 mm x 250 mm x 180 mm |
|
Weight |
1.81 kg |
|
Operating Temperature |
-40°C to 65°C |
|
Humidity |
5% RH to 95% RH, non-condensing |
