Product Model: CR5B0BKP0871
Retail Price: US$13,488.00
Email Us To Get Special Price Now: [email protected]
Huawei NetEngine40E series universal service router CR5B0BKP0871?NE40E-X8 basic configuration includes:
1) NE40E-X8 Chassis, 2 * SRUs, 1 * SFU, 4 AC Power supplies, 2 MPU slots, 1 SFU slots, 8 LPU slots, Huawei VRP platform
2) Up to 7.08Tbit/s switching capacity, 2880Mpps forwarding performance
3) 1+1 backup for SRUs, 2+1 backup for SFUs
4) Extremely Large Capacity Line Card, Energy Saving Design, IPv6-Compatible Solutions, Enhanced Metro Ethernet Features, Enhanced User Management Functions
5) Interface type: 100GE/40GE, 10G-LAN/WAN, GE/FE OC-192c/STM-64c POS, OC-48c/STM-16c POS, OC-12c/STM-4c POS, OC-3c/STM-1c POS, Channelized STM-4, Channelized OC-3/STM-1, OC-3c/STM-1c ATM, OC-12c/STM-4c ATM, E3/CT3 CE1/CT1 E1/T1
6) IPv4/IPv6, MPLS, QoS, Multicast, Security, VPNs, Value-added services
Quick Specs

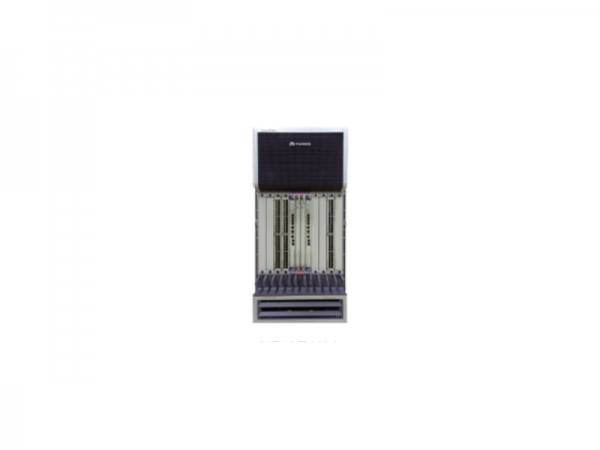

Figure 1 shows the appearance of Huawei Router – CR5B0BKP0871.
?
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router – CR5B0BKP0871 |
|
Switching Capacity |
7.08 Tbit/s |
|
Forwarding Performance |
2,880 Mpps |
|
MPU Slots |
2 |
|
SFU Slots |
1 |
|
LPU Slots |
8 |
|
Service Card Slots |
Maximum 32 |
|
Weight |
136 kg (240G) |
|
Dimensions (W x D x H) |
620 mm x 442 mm x 650 mm (14U) |
Product Details
Figure 2 shows the?front?panel of Huawei Router – CR5B0BKP0871.
?
Figure 3 shows the back panel of Huawei Router – CR5B0BKP0871.
?
The Optical transceiver
Table 2 shows the recommended elements for the Huawei Router – CR5B0BKP0871.
|
Model |
Description |
|
FE-SFP Optical Transceiver |
|
|
SFP-FE-SX-MM1310 |
SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) |
|
eSFP-FE-LX-SM1310 |
eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
|
S-SFP-FE-LH40-SM1310 |
eSFP,FE,Single-mode Module(1310nm,40km,LC) |
|
GE-SFP Optical Transceiver |
|
|
SFP-1000BaseT |
SFP,GE,Electrical Interface Module(100m,RJ45) |
|
eSFP-GE-SX-MM850 |
eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
|
SFP-GE-LX-SM1310 |
eSFP,GE,Single-mode Module(1310nm,10km,LC) |
|
S-SFP-GE-LH40-SM1310 |
eSFP,GE,Single-mode Module(1310nm,40km,LC) |
|
S-SFP-GE-LH40-SM1550 |
eSFP,GE,Single-mode Module(1550nm,40km,LC) |
Compare to Similar Items
Table 3?shows the comparison between CR5B0BKP0871 and CR5P03BASA73.?
|
Model |
CR5B0BKP0871 |
CR5P03BASA73 |
|
Switching Capacity |
7.08 Tbit/s |
1.08 Tbit/s |
|
Forwarding Performance |
2,880 Mpps |
540 Mpps |
|
MPU Slots |
2 |
2 |
|
SFU Slots |
1 |
none |
|
LPU Slots |
8 |
3 |
|
Service Card Slots |
Maximum 32 |
Maximum 12 |
|
Dimensions (W x D x H) |
620 mm x 442 mm x 650 mm (14U) |
175 mm x 442 mm x 650 mm (DC 4U) |
Get more information
Do you have any?question?about?the?CR5B0BKP0871
Contact us now via Live Chat or [email protected].
Specification
CR5B0BKP0871 Datasheet
NE40E-X8A Integrated Chassis DC Components (Including 2 Fan Tray)
