Product Model: Huawei FusionServer RH5885 V3 Rack Server
Retail Price: Price has expired
Email Us To Get Special Price Today: [email protected]
Huawei new-generation FusionServer RH5585 rack server offers cost-effective, energy-efficiency solution for databases, enterprise resource planning system (ERP), business intelligence (BI), big data and virtualization. This 4U rack server supports up to 4 Intel Xeon E7 V2 or V3 series processors, 48 DDR4 DIMMs, 23 2.5” SAS or SATA disks and 8 PCIe slots. Huawei FusionServer RH5585 v3 supports 53 Reliability, availability and serviceability (RAS) features to ensure system stability, which include memory mirroring, memory sparing, automatic link recovery and predictive failure analysis.
Quick Specs

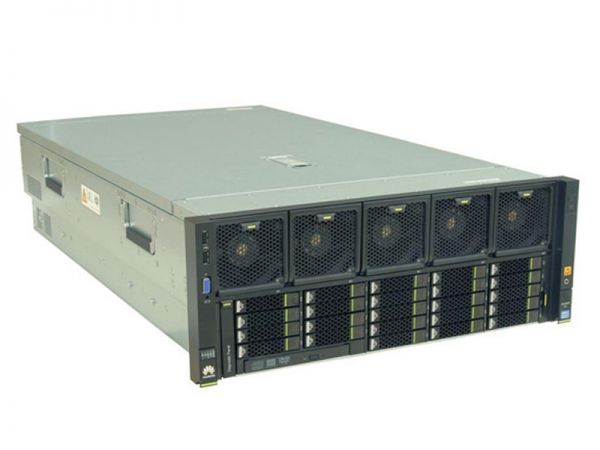

Figure 1 shows the appearance of Huawei FusionServer RH5885 V3 Rack Server.
Table 1 shows the Quick Specs.
|
Product |
Huawei FusionServer RH5885 V3 Rack Server |
|
Form factor |
4U rack server |
|
Number of processors |
2 or 4 |
|
Processor model |
Intel® Xeon® E7-4800 v3/v4 or E7-8800 v3/v4 processors, with an L3 cache capacity of 60 MB maximum |
|
Number of DIMM slots |
48 DIMMs, up to 3 TB (64 GB DIMMs) |
|
Memory |
48 DIMMs |
|
Internal Storage |
8 or 23 x 2.5-inch SAS/SATA HDDs or SSDs, or 8 x 2.5-inch SAS/SATA HDDs + 4 x 2.5-inch NVMes |
|
RAID |
RAID 0, 1, 10, 5, 50, 6, or 60 (Optional) Configured with a supercapacitor or Battery Backup Unit (BBU) for power-off protection |
|
LOM Network Ports |
2 GE or 4 GE ports, or 2 x 10 GE ports |
|
PCIe Expansion |
Up to 8 PCIe slots (including one for RAID) |
|
Fan Modules |
5 hot-swappable fan modules in N+1 redundancy mode |
|
Power Supply Units |
2 hot-swappable PSUs in 1+1 redundancy mode 4 hot-swappable PSUs in 2+2 redundancy mode |
|
Management |
Provides independent ports; supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios |
|
Operating Temperature |
5ºC to 40ºC (41ºF to 104ºF), ASHRAE Class A3 compliant |
|
Dimensions (H x W x D) |
447 mm x 790 mm x 175 mm (17.60 in. x 31.10 in. x 6.89 in.) |
Product Details
Figure 2 shows the front panel of Huawei FusionServer RH5885 V3 Rack Server.
Note:
|
① |
Fan modules (numbered 1 to 5 from left to right) |
② |
Network port link status indicators |
|
③ |
Health indicator |
④ |
UID button/indicator |
|
⑤ |
Power button/indicator |
⑥ |
Fan status indicator |
|
⑦ |
Label (including the ESN label) |
⑧ |
Hard disk fault indicator |
|
⑨ |
Hard disk activity indicator |
⑩ |
Hard disks |
|
DVD drive |
LED diagnosis panel |
||
|
VGA port |
USB port 2 |
||
|
USB port 1 |
– |
– |
Figure 3 shows the back panel of Huawei FusionServer RH5885 V3 Rack Server.
Note:
|
① |
PCIe slot 1 |
② |
PCIe slot 2 |
|
③ |
PCIe slot 3 |
④ |
PCIe slot 4 |
|
⑤ |
PCIe slot 7 |
⑥ |
PCIe slot 6 |
|
⑦ |
PCIe slot 5 |
⑧ |
Serial port |
|
⑨ |
VGA port |
⑩ |
USB port |
|
iMana 200 management network port |
UID indicator |
||
|
NIC |
PSU indicator |
||
|
PSU 4 |
PSU 3 |
||
|
PSU 2 |
PSU 1 |
Compare to Similar Items
Table 3 shows the comparison of Huawei FusionServer RH5885 V3 Rack Server, Huawei FusionServer 5288 V3 rack server and Huawei FusionServer RH5885H V3 Rack Server.
|
Product |
Huawei FusionServer RH5885 V3 Rack Server |
Huawei FusionServer 5288 V3 rack server |
Huawei FusionServer RH5885H V3 Rack Server |
|
Form factor |
4U rack server |
4 U rack server |
4U rack server |
|
Number of processors |
2 or 4 |
One or two |
2 or 4 |
|
Processor model |
Intel® Xeon® E7-4800 v3/v4 or E7-8800 v3/v4 processors, with an L3 cache capacity of 60 MB maximum |
Intel® Xeon® E5-2600 v3/v4 series processors |
Intel® Xeon® E7-4800 v3/v4 or E7-8800 v3/v4 processors, with an L3 cache capacity of 60 MB maximum |
|
Number of DIMM slots |
48 DIMMs, up to 3 TB (64 GB DIMMs) |
8 or 16 slots for DDR4 RDIMMs or LRDIMMs |
96 DIMMs, up to 6 TB (using 64 GB DIMMs) |
|
Memory |
48 DIMMs |
16 DDR4 RDIMMs/LRDIMMs |
96 DIMMs |
|
Internal Storage |
8 or 23 x 2.5-inch SAS/SATA HDDs or SSDs, or 8 x 2.5-inch SAS/SATA HDDs + 4 x 2.5-inch NVMes |
5288 V3 with 40 hard disks ·24 x 3.5-inch SAS/SATA HDDs Rear: ·16 x 3.5-inch SAS/SATA HDDs 5288 V3 with 28 hard disks ·24 x 3.5-inch SAS/SATA HDDs Rear: ·4 x 3.5-inch SAS/SATA HDDs |
8 or 23 x 2.5-inch SAS/SATA HDDs or SSDs, or 8 x 2.5-inch SAS/SATA HDDs + 4 x 2.5-inch NVMes |
Get more information
Do you have any question about the Huawei FusionServer RH5885 V3 Rack Server
Contact us now via Live Chat or [email protected].
Huawei FusionServer RH5885 V3 Rack Server Datasheet
Huawei FusionServer RH5885 V3 Rack Server Manual |
|
|
Form factor |
4U rack server |
|
Number of processors |
2 or 4 |
|
Processor model |
Intel® Xeon® E7-4800 v3/v4 or E7-8800 v3/v4 processors, with an L3 cache capacity of 60 MB maximum |
|
Number of DIMM slots |
48 DIMMs, up to 3 TB (64 GB DIMMs) |
|
Memory |
48 DIMMs |
|
Internal Storage |
8 or 23 x 2.5-inch SAS/SATA HDDs or SSDs, or 8 x 2.5-inch SAS/SATA HDDs + 4 x 2.5-inch NVMes |
|
RAID |
RAID 0, 1, 10, 5, 50, 6, or 60 (Optional) Configured with a supercapacitor or Battery Backup Unit (BBU) for power-off protection |
|
LOM Network Ports |
2 GE or 4 GE ports, or 2 x 10 GE ports |
|
PCIe Expansion |
Up to 8 PCIe slots (including one for RAID) |
|
Fan Modules |
5 hot-swappable fan modules in N+1 redundancy mode |
|
Power Supply Units |
2 hot-swappable PSUs in 1+1 redundancy mode 4 hot-swappable PSUs in 2+2 redundancy mode |
|
Management |
Provides independent ports; supports standard management interfaces, such as SNMP and IPMI; provides GUI, remote KVM, virtual media, SOL, Predictive Failure Analysis (PFA), intelligent power supply, remote control, and hardware monitoring Supports Huawei eSight management software and integration with third-party management systems, such as VMware vCenter, Microsoft System Center, and Nagios |
|
Operating Temperature |
5ºC to 40ºC (41ºF to 104ºF), ASHRAE Class A3 compliant |
|
Dimensions (H x W x D) |
447 mm x 790 mm x 175 mm (17.60 in. x 31.10 in. x 6.89 in.) |
