Product Model: Huawei CH220 V3 I/O Expansion Compute Node
Retail Price: Price has expired
Email Us To Get Special Price Today: [email protected]
Huawei FusionServer CH220 V3 I/O Expansion Compute Node is designed for application acceleration; server, network, and desktop virtualization; and superior scalability. It can be expanded for I/O acceleration components such as PCIe SSDs, GPUs, and High-Performance Computing. It forms part of the CH100 and CH200 families of compute nodes, which are fully compatible with Huawei’s E9000 Blade Server. This efficient compute node features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power. Carrier-class design, manufacturing, and components ensure high quality.
Quick Specs

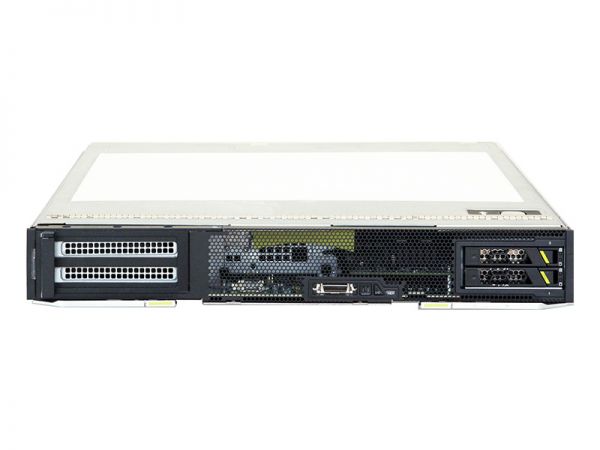

Figure 1 shows the appearance of Huawei CH220 V3 I/O Expansion Compute Node.
Table 1 shows the Quick Specs.
|
Product Model |
Huawei CH220 V3 I/O Expansion Compute Node |
|
Form Factor |
Full-width 2-socket compute node |
|
Number of Processors |
1 or 2 |
|
Processor Model |
Intel® Xeon® E5-2600 v3/v4 series |
|
Number of DIMMs |
16 DDR4 DIMMs, providing a maximum memory capacity of 1 TB |
|
Number of Hard Disks |
2 x 2.5-inch SSDs, SAS HDDs, or SATA HDDs |
|
Built-in Storage |
2 x Mini-SSDs (SATA DOM) 2 x Micro-SD cards (RAID 1) 1 x USB 3.0 |
|
RAID Support |
RAID 0 and 1 |
|
PCIe Expansion |
2 PCIe x 16 + 2 PCIe x 8 Mezz modules, supporting 6 standard PCIe slots. The following configuration modes are supported: 6 full-height, half-length single-slots 1 full-height, full-length, dual-slot and 4 full-height, half-length single-slots 2 full-height, full-length dual-slots 2 full-height, full-length, single-slots and 4 full-height, half-length single-slots |
|
Operating Temperature |
5ºC to 40ºC, ASHRAE Class A3 compliant |
|
Dimensions |
Height: 60.46 mm (2.38 in.) Width: 423 mm (16.65 in.) Depth: 537.2 mm (21.15 in.) |
Product Details
Figure 2 shows the front panel of Huawei CH220 V3 I/O Expansion Compute Node.
Note:
|
① |
Ejector lever |
② |
Spring |
|
③ |
High-density port |
④ |
Power button/indicator |
|
⑤ |
UID button/indicator |
⑥ |
HLY indicator |
|
⑦ |
Hard disk |
⑧ |
Product model |
Compare to Similar Items
Table 3 shows the comparison of Huawei CH220 V3 I/O Expansion Compute Node, Huawei CH222 V3 Storage Compute Node, Huawei CH226 V3 Storage Expansion Compute Node and Huawei CH242 V3 Compute Node.
|
Product Model |
Huawei CH220 V3 I/O Expansion Compute Node |
Huawei CH222 V3 Storage Compute Node |
Huawei CH226 V3 Storage Expansion Compute Node |
Huawei CH242 V3 Compute Node |
|
Form Factor |
Full-width 2-socket compute node |
Full-width 2-socket compute node |
Full-width, 2-socket compute node |
Full-width 4-socket compute node |
|
Number of Processors |
1 or 2 |
1 or 2 |
1 or 2 |
2 or 4 |
|
Processor Model |
Intel® Xeon® E5-2600 v3/v4 series |
Intel® Xeon® E5-2600 v3/v4 series |
Intel® Xeon® E5-2600 v3/v4 series |
Intel® Xeon® E7 v3/v4 series, up to 24-core processor |
|
Number of DIMMs |
16 DDR4 DIMMs, providing a maximum memory capacity of 1 TB |
24 DDR4 DIMMs, providing a maximum memory capacity of 1.5 TB |
24 DDR4 DIMMs, providing a maximum memory capacity of 1.5 TB |
32 DDR4 DIMMs, providing a maximum memory capacity of 2 TB |
|
Number of Hard Disks |
2 x 2.5-inch SSDs, SAS HDDs, or SATA HDDs |
15 x 2.5 in. SAS/SATA HDDs or SSDs |
6 x 3.5 in. SAS/SATA HDDs, and 2 x 2.5 in. SAS/SATA HDDs or SSDs |
8 x 2.5-inch SAS/SATA HDDs, or SSDs, among them 4 slots support NVMe SSDs |
Get more information
Do you have any question about the Huawei CH220 V3 I/O Expansion Compute Node
Contact us now via Live Chat or [email protected].
Huawei CH220 V3 I/O Expansion Compute Node Datasheet
Huawei CH220 V3 I/O Expansion Compute Node Manual |
|
|
Form Factor |
Full-width 2-socket compute node |
|
Number of Processors |
1 or 2 |
|
Processor Model |
Intel® Xeon® E5-2600 v3/v4 series |
|
Number of DIMMs |
16 DDR4 DIMMs, providing a maximum memory capacity of 1 TB |
|
Number of Hard Disks |
2 x 2.5-inch SSDs, SAS HDDs, or SATA HDDs |
|
Built-in Storage |
2 x Mini-SSDs (SATA DOM) 2 x Micro-SD cards (RAID 1) 1 x USB 3.0 |
|
RAID Support |
RAID 0 and 1 |
|
PCIe Expansion |
2 PCIe x 16 + 2 PCIe x 8 Mezz modules, supporting 6 standard PCIe slots. The following configuration modes are supported: 6 full-height, half-length single-slots 1 full-height, full-length, dual-slot and 4 full-height, half-length single-slots 2 full-height, full-length dual-slots 2 full-height, full-length, single-slots and 4 full-height, half-length single-slots |
|
Operating Systems Supported |
Microsoft Windows Server 2008/2012 VMware |
|
Operating Temperature |
5ºC to 40ºC, ASHRAE Class A3 compliant |
|
Dimensions |
Height: 60.46 mm (2.38 in.) Width: 423 mm (16.65 in.) Depth: 537.2 mm (21.15 in.) |
