Product Model: Huawei CH140 V3 Compute Node for E9000
Retail Price: Price has expired
Email Us To Get Special Price Today: [email protected]
Optimized for HPC and dense computing enterprise services, Huawei new generation FusionServer CH140 V3 Compute Node for E9000 provides ultra-high computing capabilities. A half-width slot supports two 2-socket compute nodes; each node can be maintained independently. The CH140 V3 uses Intel Xeon E5-2600 v3 series processors, supports eight DIMM slots and one hard disk, as well as 2 built-in Micro-SD slots supporting RAID 1. This efficient compute node features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power. Carrier-class design, manufacturing, and components ensure high quality.
Quick Specs

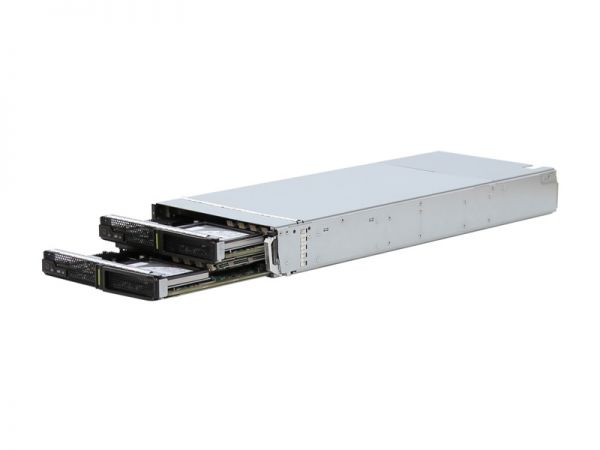

Figure 1 shows the appearance of Huawei CH140 V3 Compute Node for E9000.
Table 1 shows the Quick Specs.
|
Product Model |
Huawei CH140 V3 Compute Node for E9000 |
|
Form Factor |
Two 2-socket, twin compute nodes in a half-width slot |
|
Number of Processors |
1 or 2 in each 2-socket compute node |
|
Processor Models |
Intel® Xeon® E5-2600 v3/v4 series |
|
Number of DIMMs |
8 DDR4 DIMMs for each 2-socket compute node |
|
Number of Hard Disks |
One 2.5-inch SSD/SATA for each 2-socket compute node |
|
RAID Support |
N/A |
|
PCIe Expansion |
2 twin nodes share 2 Mezz modules |
|
OS Support |
Microsoft Windows Server 2008/2012 Red Hat Enterprise Linux SUSE Linux Enterprise Server Oracle Linux CentOS Citrix XenServer VMware |
|
Operating Temperature |
5°C to 35°C |
|
Dimensions |
Height: 60.46 mm (2.38 in.) Width: 210 mm (8.27 in.) Depth: 537.2 mm (21.15 in.) |
Product Details
Figure 2 shows the front panel of Huawei CH140 V3 Compute Node for E9000.
Note:
|
① |
Customization label (with an ESN label) |
② |
Power button/indicator |
|
③ |
UID button/indicator |
④ |
Health indicator |
|
⑤ |
Hard disk indicator |
⑥ |
Spring |
|
⑦ |
Ejector lever (child compute node) |
⑧ |
Child compute node A |
|
⑨ |
Child compute node B |
⑩ |
Product model |
|
Ejector lever |
Ejector lever extension bar |
||
|
Release button |
– |
– |
Compare to Similar Items
Table 3 shows the comparison of Huawei CH140 V3 Compute Node for E9000 and Huawei CH121 V3 Compute Node.
|
Product Model |
Huawei CH140 V3 Compute Node for E9000 |
Huawei CH121 V3 Compute Node |
|
Form Factor |
Two 2-socket, twin compute nodes in a half-width slot |
Half-width 2-socket compute node |
|
Number of Processors |
1 or 2 in each 2-socket compute node |
1 or 2 |
|
Processor Models |
Intel® Xeon® E5-2600 v3/v4 series |
Intel® Xeon® E5-2600 v3/v4 series |
|
Number of DIMMs |
8 DDR4 DIMMs for each 2-socket compute node |
24 DDR4 DIMMs, providing a maximum memory capacity of 1.5 TB |
|
Number of Hard Disks |
One 2.5-inch SSD/SATA for each 2-socket compute node |
2 x 2.5-inch SSDs, SAS HDDs, or SATA HDDs, supporting 2 x NVMe SSDs |
|
RAID Support |
N/A |
RAID 0 and 1 |
|
PCIe Expansion |
2 twin nodes share 2 Mezz modules |
2 PCIe x 16 Mezz modules 1 standard PCIe x 16 full-height, half-length card |
Get more information
Do you have any question about the Huawei CH140 V3 Compute Node for E9000
Contact us now via Live Chat or [email protected].
Huawei CH140 V3 Compute Node for E9000 Datasheet
Huawei CH140 V3 Compute Node for E9000 Manual |
|
|
Form Factor |
Two 2-socket, twin compute nodes in a half-width slot |
|
Number of Processors |
1 or 2 in each 2-socket compute node |
|
Processor Models |
Intel® Xeon® E5-2600 v3/v4 series |
|
Number of DIMMs |
8 DDR4 DIMMs for each 2-socket compute node |
|
Number of Hard Disks |
One 2.5-inch SSD/SATA for each 2-socket compute node |
|
RAID Support |
N/A |
|
PCIe Expansion |
2 twin nodes share 2 Mezz modules |
|
OS Support |
Microsoft Windows Server 2008/2012 Red Hat Enterprise Linux SUSE Linux Enterprise Server Oracle Linux CentOS Citrix XenServer VMware |
|
Operating Temperature |
5°C to 35°C |
|
Dimensions |
Height: 60.46 mm (2.38 in.) Width: 210 mm (8.27 in.) Depth: 537.2 mm (21.15 in.) |
