Product Model: Huawei CH121 Compute Node for E9000
Retail Price: Price has expired
Email Us To Get Special Price Today: [email protected]
Huawei CH121 compute node combines dense computing capabilities with an ultra-large memory capacity. It’s optimized for enterprise service applications such as virtualization, cloud computing, and HPC, and employs Intel Xeon processors. This efficient compute node features dynamic energy-saving and power-capping technologies that manage and control power consumption with remarkably reduced low-load operating power. Carrier-class design, manufacturing, and components ensure high quality.
Quick Specs

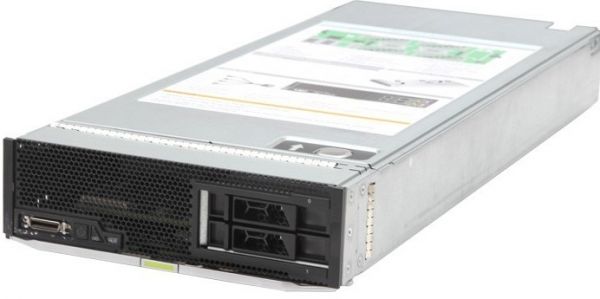

Figure 1 shows the appearance of Huawei CH121 Compute Node for E9000.
Table 1 shows the Quick Specs.
|
Product Model |
Huawei CH121 Compute Node for E9000 |
|
Form Factor |
Half-width 2-socket compute node |
|
Number of Processors |
1 or 2 |
|
Processor Model |
Intel® Xeon® E5-2600 and E5-2600 v2 series |
|
Number of DIMMs |
24 DDR3 DIMMs, providing a maximum memory capacity of 768 GB |
|
Number of Hard Disks |
2 x 2.5″ SAS/SATA HDDs or SSDs |
|
RAID Support |
RAID 0 and 1 |
|
PCIe Expansion |
2 PCIe x16 mezz modules 1 standard PCIe x8 full-height half-length card |
|
Operating Systems Supported |
Microsoft Windows Server 2008/2012 Red Hat Enterprise Linux SUSE Linux Enterprise Server Oracle Linux Oracle Solaris CentOS Huawei Fusionsphere Citrix XenServer VMware |
|
Operating Temperature |
5°C to 40°C |
|
Dimensions |
210mm(width) x 537.2mm(depth) x 60.46mm(height) |
Product Details
Figure 2 shows the front panel of Huawei CH121 Compute Node for E9000.
Note:
|
① |
Customization label (with an ESN label) |
② |
High-density port |
|
③ |
Power button/indicator |
④ |
UID button/indicator |
|
⑤ |
HLY indicator |
⑥ |
Spring |
|
⑦ |
Ejector lever |
⑧ |
Hard disk |
|
⑨ |
Hard disk fault indicator |
⑩ |
Hard disk active indicator |
|
Product model |
– |
– |
Compare to Similar Items
Table 3 shows the comparison of Huawei CH121 Compute Node for E9000 and Huawei CH140 Compute Node for E9000.
|
Product Model |
Huawei CH121 Compute Node for E9000 |
Huawei CH140 Compute Node for E9000 |
|
Form Factor |
Half-width 2-socket compute node |
Two 2-socket twin compute nodes in a half-width slot |
|
Number of Processors |
1 or 2 |
1 or 2 in each 2-socket compute node |
|
Processor Model |
Intel® Xeon® E5-2600 and E5-2600 v2 series |
Intel® Xeon® E5-2600 and E5-2600 v2 series |
|
Number of DIMMs |
24 DDR3 DIMMs, providing a maximum memory capacity of 768 GB |
8 DDR3 DIMMs for each 2-socket compute node |
|
Number of Hard Disks |
2 x 2.5″ SAS/SATA HDDs or SSDs |
One 2.5″ SSD/SAS/SATA for each 2-socket compute node |
|
PCIe Expansion |
2 PCIe x16 mezz modules 1 standard PCIe x8 full-height half-length card |
2 twin nodes share 2 PCIe x8 MEZZ modules |
Get more information
Do you have any question about the Huawei CH121 Compute Node for E9000
Contact us now via Live Chat or [email protected].
Huawei CH121 Compute Node for E9000 Datasheet
CH121 Compute Node Manual |
|
|
Form Factor |
Half-width 2-socket compute node |
|
Number of Processors |
1 or 2 |
|
Processor Model |
Intel Xeon E5-2600 and E5-2600 v2 series |
|
Number of DIMMs |
24 DDR3 DIMMs, providing a maximum memory capacity of 1.5 TB |
|
Number of Hard Disks |
2 x 2.5-inch SSDs, SAS HDDs, or SATA HDDs |
|
RAID Support |
RAID 0 and 1 |
|
PCIe Expansion |
2 PCIe x16 Mezz modules |
|
OS Support |
Microsoft Windows Server 2008/2012 |
|
Operating Temperature |
5°C to 40°C |
|
Dimensions |
Height: 60.46 mm (2.38 in) |
