Product Model: Huawei BH620 V2 Blade Server
Retail Price: Price has expired
Email Us To Get Special Price Today: [email protected]
When high-performance processors need to be balanced by cost-effective, large-capacity storage components, Huawei BH620V2 blade server is your best choice. It features Intel Xeon E5-2400 and E5-2400 v2 series processors, and up to four HDDs or SSDs for storage and 12 DIMMs for memory.The server is designed for universal mid-range and high-end services such as telecommunications, enterprise, and Internet applications, making it a great choice for a balanced solution.
Quick Specs

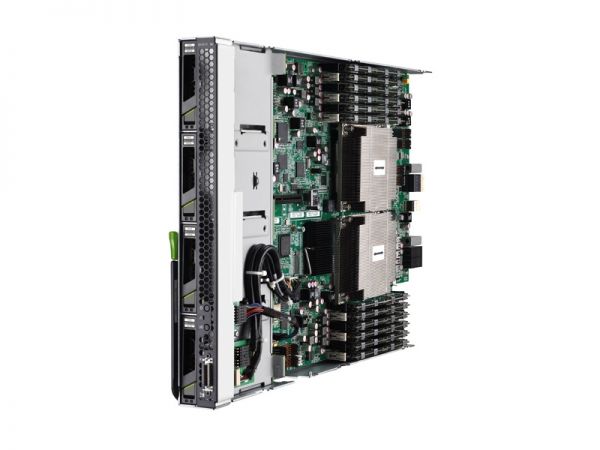

Figure 1 shows the appearance of Huawei BH620 V2 Blade Server.
Table 1 shows the Quick Specs.
|
Product Model |
Huawei BH620 V2 Blade Server |
|
Form Factor |
Full-height 2-socket server blade |
|
Number of CPUs |
One or two |
|
CPU model |
All Intel Sandy Bridge-EN Xeon E5-2400 series quad-core/six-core/eight-core CPUs |
|
Number of memory slots |
12 DDR3 DIMM slots |
|
Number of HDD |
Four 2.5-inch SAS disks, SATA disks, or SSDs |
|
Maximum internal storage capacity |
4 TB SATA |
|
RAID Support |
RAID 0, 1, 10, 5, and 6 |
|
Expansion Slots |
Two PCIe x 8 mezz slots for GE, 4 GFC, 8G FC, and 10 GE mezz cards |
|
Dimensions (W x D x H) |
41.8 mm x 496 mm x 310 mm (1.65 in. x 19.53 in. x 12.20 in.) |
Product Details
Figure 2 shows the front panel of Huawei BH620 V2 Blade Server.
Note:
|
① |
Hard disk (HD0) |
|
② |
Hard disk (HD1) |
|
③ |
Hard disk (HD2) |
|
④ |
Hard disk (HD3) |
|
⑤ |
Hard disk handle |
|
⑥ |
High-density port |
Compare to Similar Items
Table 3 shows the comparison of Huawei BH620 V2 Blade Server, Huawei BH622 V2 Blade server, and Huawei BH640 V2 Blade Server.
|
Product Model |
Huawei BH622 V2 Blade server |
Huawei BH620 V2 Blade Server |
Huawei BH640 V2 Blade Server |
|
Form Factor |
Full-height 2-socket server blade |
Full-height 2-socket server blade |
Full-height 4-socket server blade |
|
Number of Processors |
One or two |
One or two |
two or Four |
|
Processors |
Intel Xeon E5-2600 and E5-2600 v2 series processors |
Intel Xeon E5-2400 and E5-2400 v2 series processors |
Intel Xeon E5-4600 and E5-4600 v2 series processors |
|
Memory |
24 DDR3 DIMMs |
12 DDR3 DIMMs |
24 DDR3 DIMMs |
|
Internal Storage |
2 x 2.5-inch SAS/SATA HDDs or SSDs |
4 x 2.5-inch SAS/SATA HDDs or SSDs |
2 x 2.5-inch SAS/SATA HDDs or SSDs |
|
RAID Support |
RAID 0 and 1 |
RAID 0, 1, 10, 5, and 6 |
RAID 0 and 1 |
|
Expansion Slots |
Two PCIe x 8 mezz slots for GE, 4G FC, 8G FC, and 10 GE mezz cards |
Two PCIe x 8 mezz slots for GE, 4 GFC, 8G FC, and 10 GE mezz cards |
Two PCIe x 8 mezz slots for GE, 4G FC, 8G FC, and 10 GE mezz cards |
Get more information
Do you have any question about the Huawei BH620 V2 Blade Server
Contact us now via Live Chat or [email protected].
Huawei BH620 V2 Blade Server Datasheet
Huawei BH620 V2 Blade Server Specifications |
|
|
Form Factor |
Full-height 2-socket server blade |
|
Number of CPUs |
One or two |
|
CPU model |
All Intel Sandy Bridge-EN Xeon E5-2400 series quad-core/six-core/eight-core CPUs |
|
Number of memory slots |
12 DDR3 DIMM slots |
|
Number of HDD |
Four 2.5-inch SAS disks, SATA disks, or SSDs |
|
Maximum internal storage capacity |
4 TB SATA |
|
RAID Support |
RAID 0, 1, 10, 5, and 6 |
|
Expansion Slots |
Two PCIe x 8 mezz slots for GE, 4 GFC, 8G FC, and 10 GE mezz cards |
|
Network |
Integrates 2 GE controllers that use Intel 82580 chips |
|
Management |
Integrates the BMC and supports management features such as IPMI, SOL, KVM over IP, and virtual media |
|
Operating Systems Supported |
Microsoft Windows Server |
|
Operating Temperature |
5ºC to 35ºC (41ºF to 95ºF) |
|
Dimensions (W x D x H) |
41.8 mm x 496 mm x 310 mm (1.65 in. x 19.53 in. x 12.20 in.) |
