Product Model: AR207V-P
Retail Price: US$1,352.00
Email Us To Get Special Price Now: [email protected]
Huawei AR G3 AR200 Series – AR207V-P?fixed interface access voice router with POE capacity AR0M2073BA provides routing and switching functionality for small business or branch offices. Huawei AR207V-PV-P integrates 1 ADSL2+ ANNEX A/M WAN, 8 Fast Ethernet 10/100 LAN(POE),4FXS+1FXO,1USB and 1 PoE Power Adapter. The comprehensive security features with and fault detection ensure safe, secure, scalable communications. AR200 series router voice features provide industry-leading voice quality and user experience and can easily be integrated within new or existing data networks. FXO&FXS ports connect with PBX system serves as the SIP access gateway for a branch office, transforming phone signals into VoIP signals. Huawei AR G3 AR169FGVW-L router offers most efficient solution for the small business, remote office or branch office.
Quick Specs
Figure 1 shows the appearance of Huawei Router – AR207V-P.
?
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router – AR207V-P |
|
Memory |
512 MB |
|
Flash |
512 MB |
|
Service?interfaces (standard configuration) |
WAN interfaces: 1 ADSL-A/M interface LAN interfaces: 8 10/100M auto-sensing Ethernet electrical interfaces Voice interface: 4 FXS interfaces and 1 FXO interface |
|
Extended slots |
Not supported |
|
Interface number |
LAN interfaces: FE0-FE7 |
|
Power module type |
External power adapter |
|
Weight |
2.8 kg (6.17 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
Product Details

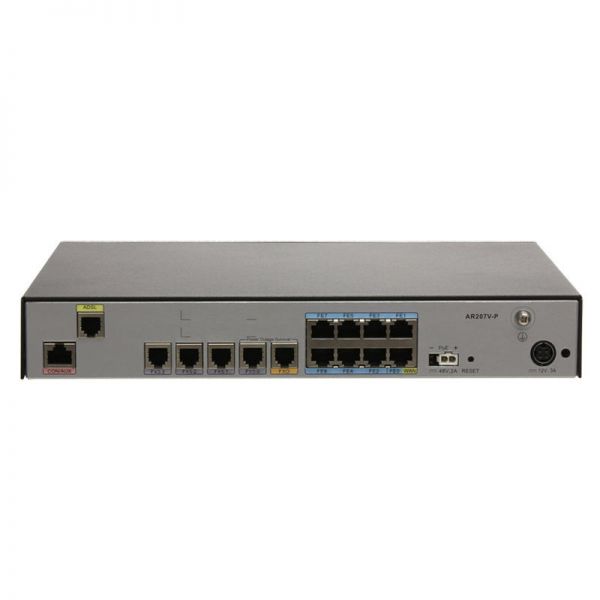

Figure 2 shows the?back?panel of Huawei Router – AR207V-P.
?
Note:
|
① |
CON/AUX?interface |
|
② |
WAN interface: ADSL-A/M interface |
|
③ |
Four FXS interfaces |
|
④ |
One FXO interface |
|
⑤ |
LAN interfaces: eight FE electrical interfaces |
|
⑥ |
PoE power jack |
|
⑦ |
RST button |
|
⑧ |
Power interface |
|
⑨ |
Jack for power cable locking strap |
Compare to Similar Items
Table 2?shows the comparison between AR207V-P and AR2220E.?
|
Model |
AR207V-P |
AR2220E |
|
SIC Slots |
0 |
4 |
|
Memory |
512 MB |
1 GB |
|
Flash |
512 MB |
512 MB |
|
Weight |
2.8 kg (6.17 lb) |
6 kg (13.2 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
442.0 mm x 420.0 mm x 44.5 mm |
Get more information
Do you have any?question?about?the?AR207V-P
Contact us now via Live Chat or [email protected].
Specification
AR207V-P Datasheet
AR207V-P Specification |
|
|
Memory |
512 MB |
|
Flash |
512 MB |
|
Service interfaces (standard configuration) |
WAN interfaces: 1 ADSL-A/M interface LAN interfaces: 8 10/100M auto-sensing Ethernet electrical interfaces Voice interface: 4 FXS interfaces and 1 FXO interface |
|
Extended slots |
Not supported |
|
Interface number |
LAN interfaces: FE0-FE7 |
|
Power module type |
External power adapter |
|
Weight |
2.8 kg (6.17 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
