Product Model: AR208E
Retail Price: US$0
Email Us To Get Special Price Now: [email protected]
Huawei AR G3 AR200 Series router AR208E fixed interface access enterprise router?AR0M008EBA00?provides routing and switching functionality for small business or branch offices. Huawei AR G3 AR0M008EBA00 equips 1 G.SHDSL 8-wired WAN port, 8 Fast Ethernet 10/100 LAN ports,1 USB and provides total 150Mbps system capacity. Dual-core processor separate data and control planes to ensure the high performance. Robust security feature include build-in, comprehensive authentication, defense mechanisms and a broad range of VPN options.
Quick Specs

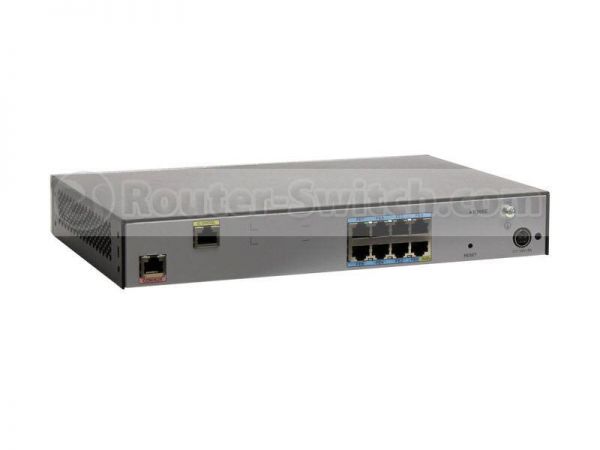

Figure 1 shows the appearance of Huawei Router – AR208E.
?
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router – AR208E |
|
Memory |
512 MB |
|
Flash |
512 MB |
|
Service?interfaces (standard configuration) |
WAN interfaces: 1 G.SHDSL interface LAN interfaces: 8 10/100M auto-sensing Ethernet electrical interfaces |
|
Extended slots |
Not supported |
|
Interface number |
LAN interfaces: FE0-FE7 |
|
Power module type |
External power adapter |
|
Weight |
2.8 kg (6.17 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
Product Details
Figure 2 shows the?back?panel of Huawei Router – AR208E.
?
Note:
|
① |
CON/AUX?interface |
|
② |
WAN interface: ADSL-A/M interface |
|
③ |
LAN interfaces: eight FE electrical interfaces |
|
④ |
RST button |
|
⑤ |
Power interface |
|
⑥ |
Jack for power cable locking strap |
Compare to Similar Items
Table 2?shows the comparison between AR208E and AR2220E.?
|
Model |
AR208E |
AR2220E |
|
SIC Slots |
0 |
4 |
|
Memory |
512 MB |
1 GB |
|
Flash |
512 MB |
512 MB |
|
Weight |
2.8 kg (6.17 lb) |
6 kg (13.2 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
442.0 mm x 420.0 mm x 44.5 mm |
Get more information
Do you have any?question?about?the?AR208E
Contact us now via Live Chat or [email protected].
Specification
AR208E Datasheet
AR208E Specification |
|
|
Memory |
512 MB |
|
Flash |
512 MB |
|
Service interfaces (standard configuration) |
WAN interfaces: 1 G.SHDSL interface LAN interfaces: 8 10/100M auto-sensing Ethernet electrical interfaces |
|
Extended slots |
Not supported |
|
Interface number |
LAN interfaces: FE0-FE7 |
|
Power module type |
External power adapter |
|
Weight |
2.8 kg (6.17 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
