Product Model: AR161FGW-La
Retail Price: US$0
Email Us To Get Special Price Now: Julie@corenet.vip
Huawei next-generation wireless router AR161FGW-La is designed for the enterprise branch or small business to deliver a comprehensive set of services which include routing, switching and wireless access. The AR161FGW-Laa comes with fixed 1 * Combo WAN interface (SFP/RJ-45) and 4 * 10/100 switching LAN interface, security functions, 3G, wireless AP management and wireless capability all in one device. AR161FGW-Laa is a mature, stable and quiet router and delivers the high performance functionality for small network which greatly increase productivity with lower the cost. the router is easy to deploy, configure and customize to greatly reduce the cost of deployment and maintenance.
Quick Specs

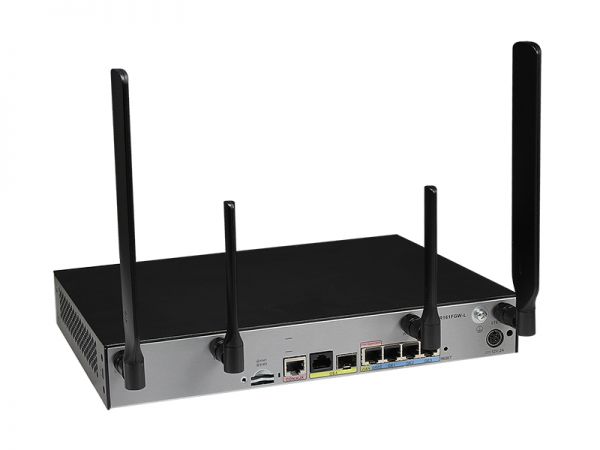

Figure 1 shows the appearance of Huawei Router – AR161FGW-La.
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router – AR161FGW-La |
|
Memory |
512 MB |
|
Flash |
512 MB |
|
Service interfaces (standard configuration) |
WAN interfaces: 1 ADSL-B/J interface LAN interfaces: 4 10/100M auto-sensing Ethernet electrical interfaces |
|
Extended slots |
Not supported |
|
Interface number |
LAN interfaces: GE0-GE3 |
|
Power module type |
External power adapter |
|
Weight |
2.8 kg (6.17 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
Product Details
Figure 2 shows the back panel of Huawei Router – AR161FGW-La.
Note:
|
① |
USB host |
|
② |
CON/AUX interface |
|
③ |
WAN GE Combo interfaces |
|
④ |
4 FE electrical interfaces |
|
⑤ |
RST button |
|
⑥ |
Power interface |
The Optical transceiver
Table 2 shows the recommended elements for the Huawei Router – AR161FGW-La.
|
Model |
Description |
|
FE-SFP Optical Transceiver |
|
|
SFP-FE-SX-MM1310 |
SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) |
|
eSFP-FE-LX-SM1310 |
eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
|
S-SFP-FE-LH40-SM1310 |
eSFP,FE,Single-mode Module(1310nm,40km,LC) |
|
GE-SFP Optical Transceiver |
|
|
SFP-1000BaseT |
SFP,GE,Electrical Interface Module(100m,RJ45) |
|
eSFP-GE-SX-MM850 |
eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
|
SFP-GE-LX-SM1310 |
eSFP,GE,Single-mode Module(1310nm,10km,LC) |
|
S-SFP-GE-LH40-SM1310 |
eSFP,GE,Single-mode Module(1310nm,40km,LC) |
|
S-SFP-GE-LH40-SM1550 |
eSFP,GE,Single-mode Module(1550nm,40km,LC) |
Compare to Similar Items
Table 3 shows the comparison between AR161FGW-La and AR2220E.
|
Model |
AR161FGW-La |
AR2220E |
|
SIC Slots |
0 |
4 |
|
Memory |
512 MB |
1 GB |
|
Flash |
512 MB |
512 MB |
|
Weight |
2.8 kg (6.17 lb) |
6 kg (13.2 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
442.0 mm x 420.0 mm x 44.5 mm |
Get more information
Do you have any question about the AR161FGW-La
Contact us now via Live Chat or Julie@corenet.vip.
Specification
AR161FGW-La Datasheet
AR161FGW-La Specification |
|
|
Memory |
512 MB |
|
Flash |
512 MB |
|
Service interfaces (standard configuration) |
WAN interfaces: 1 ADSL-B/J interface LAN interfaces: 4 10/100M auto-sensing Ethernet electrical interfaces |
|
Extended slots |
Not supported |
|
Interface number |
LAN interfaces: GE0-GE3 |
|
Power module type |
External power adapter |
|
Weight |
2.8 kg (6.17 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
