Product Model: AR169FVW
Retail Price: US$1,155.00
Email Us To Get Special Price Now: [email protected]
Huawei AR G3 AR160 Series – AR169FVW intelligence enterprise router combines voice, wireless, wireless controller and security firewall functionality all in one device. Easy installation and configuration, quiet, fanless is only the few benefit of this intelligence router. Huawei AR G3 AR169FVW?enterprise voice & wireless router equips 1 Gigabit Ethernet 10/100/1000 COMBO (RJ-45 or SFP) WAN,4 Gigabit Ethernet 10/100/1000 LAN,1 USB,4 FXS,1FXO. Integrated with wireless controller functionality allows centralized management of wired and wireless networks, meet the customers’ requirements of building different scale enterprises networks.
Quick Specs

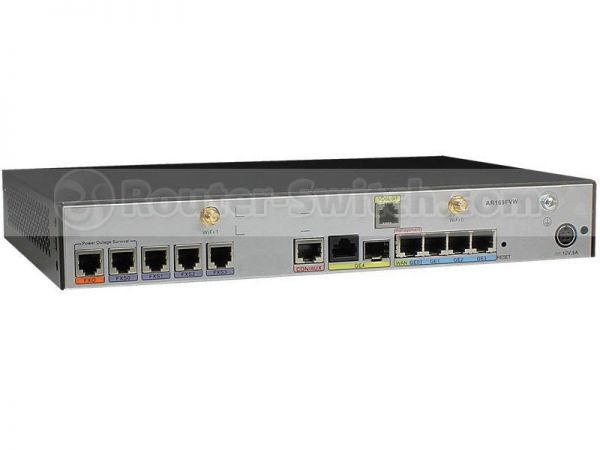

Figure 1 shows the appearance of Huawei Router – AR169FVW.
?
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router – AR169FVW |
|
Memory |
1 GB |
|
Flash |
512 MB |
|
Service?interfaces (standard configuration) |
WAN interfaces: 1 VDSL interface and 1 GE combo interface LAN interfaces: 4 10/100/1000M auto-sensing Ethernet electrical interfaces Voice interface: 4 FXS interfaces and 1 FXO interface |
|
Antenna interfaces |
2 Wi-Fi antenna interfaces |
|
Extended slots |
Not supported |
|
Interface number |
LAN interfaces: GE0-GE3 |
|
Power module type |
External power adapter |
|
Weight |
2.8 kg (6.17 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
Product Details
Figure 2 shows the?back?panel of Huawei Router – AR169FVW.
?
Note:
|
① |
One FXO interface |
|
② |
Four FXS interfaces |
|
③ |
CON/AUX?interface |
|
④ |
WAN interface: GE combo interface |
|
⑤ |
LAN interfaces: four GE electrical interfaces |
|
⑥ |
RST button |
|
⑦ |
Power interface |
|
⑧ |
Jack for power cable locking strap |
|
⑨ |
WAN interface: VDSL interface |
The Optical transceiver
Table 2 shows the recommended elements for the Huawei Router – AR169FVW.
|
Model |
Description |
|
FE-SFP Optical Transceiver |
|
|
SFP-FE-SX-MM1310 |
SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) |
|
eSFP-FE-LX-SM1310 |
eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
|
S-SFP-FE-LH40-SM1310 |
eSFP,FE,Single-mode Module(1310nm,40km,LC) |
|
GE-SFP Optical Transceiver |
|
|
SFP-1000BaseT |
SFP,GE,Electrical Interface Module(100m,RJ45) |
|
eSFP-GE-SX-MM850 |
eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
|
SFP-GE-LX-SM1310 |
eSFP,GE,Single-mode Module(1310nm,10km,LC) |
|
S-SFP-GE-LH40-SM1310 |
eSFP,GE,Single-mode Module(1310nm,40km,LC) |
|
S-SFP-GE-LH40-SM1550 |
eSFP,GE,Single-mode Module(1550nm,40km,LC) |
Compare to Similar Items
Table 3?shows the comparison between AR169FVW and AR2220E.?
|
Model |
AR169FVW |
AR2220E |
|
SIC Slots |
0 |
4 |
|
Memory |
1 GB |
1 GB |
|
Flash |
512 MB |
512 MB |
|
Weight |
2.8 kg (6.17 lb) |
6 kg (13.2 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
442.0 mm x 420.0 mm x 44.5 mm |
Get more information
Do you have any?question?about?the?AR169FVW
Contact us now via Live Chat or [email protected].
Specification
AR169FVW Datasheet
AR169FVW Specification |
|
|
Memory |
1 GB |
|
Flash |
512 MB |
|
Service interfaces (standard configuration) |
WAN interfaces: 1 VDSL interface and 1 GE combo interface LAN interfaces: 4 10/100/1000M auto-sensing Ethernet electrical interfaces Voice interface: 4 FXS interfaces and 1 FXO interface |
|
Antenna interfaces |
2 Wi-Fi antenna interfaces |
|
Extended slots |
Not supported |
|
Interface number |
LAN interfaces: GE0-GE3 |
|
Power module type |
External power adapter |
|
Weight |
2.8 kg (6.17 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
