Product Model: AR168F
Retail Price: US$0
Email Us To Get Special Price Now: [email protected]
Huawei AR G3 AR160 Series?AR168F?fixed interface access enterprise router bring good user experience and secure environment, fanless design provide quiet environment.
Quick Specs

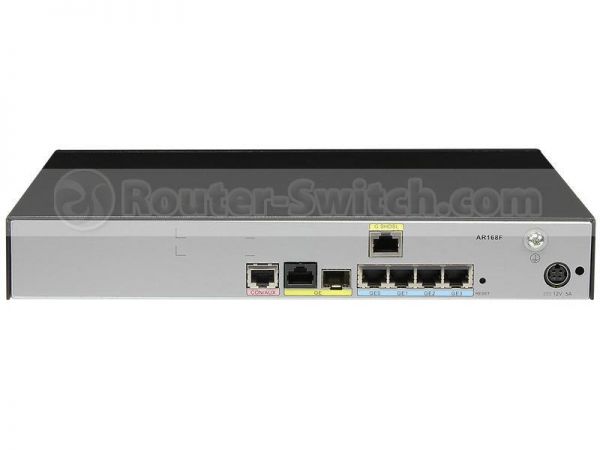

Figure 1 shows the appearance of Huawei Router – AR168F.
?
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router – AR168F |
|
Memory |
512 MB |
|
Flash |
512 MB |
|
Service?interfaces (standard configuration) |
WAN interfaces: 1 G.SHDSL interface and 1 GE combo interface LAN interfaces: 4 10/100/1000M auto-sensing Ethernet electrical interfaces |
|
Extended slots |
Not supported |
|
Interface number |
LAN interfaces: GE0-GE3 |
|
Power module type |
External power adapter |
|
Weight |
2.8 kg (6.17 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
Product Details
Figure 2 shows the?back?panel of Huawei Router – AR168F.
?
Note:
|
① |
CON/AUX?interface |
|
② |
WAN GE Combo?interfaces |
|
③ |
4 FE electrical interfaces |
|
④ |
RST button |
|
⑤ |
G.SHDSL interface |
|
⑥ |
Power interface |
|
⑦ |
Jack for power cable locking strap |
The Optical transceiver
Table 2 shows the recommended elements for the Huawei Router – AR168F.
|
Model |
Description |
|
FE-SFP Optical Transceiver |
|
|
SFP-FE-SX-MM1310 |
SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) |
|
eSFP-FE-LX-SM1310 |
eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
|
S-SFP-FE-LH40-SM1310 |
eSFP,FE,Single-mode Module(1310nm,40km,LC) |
|
GE-SFP Optical Transceiver |
|
|
SFP-1000BaseT |
SFP,GE,Electrical Interface Module(100m,RJ45) |
|
eSFP-GE-SX-MM850 |
eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
|
SFP-GE-LX-SM1310 |
eSFP,GE,Single-mode Module(1310nm,10km,LC) |
|
S-SFP-GE-LH40-SM1310 |
eSFP,GE,Single-mode Module(1310nm,40km,LC) |
|
S-SFP-GE-LH40-SM1550 |
eSFP,GE,Single-mode Module(1550nm,40km,LC) |
Compare to Similar Items
Table 3?shows the comparison between AR168F and AR2220E.
|
Model |
AR168F |
AR2220E |
|
SIC Slots |
0 |
4 |
|
Memory |
512 MB |
1 GB |
|
Flash |
512 MB |
512 MB |
|
Weight |
2.8 kg (6.17 lb) |
6 kg (13.2 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
442.0 mm x 420.0 mm x 44.5 mm |
Get more information
Do you have any?question?about?the?AR168F
Contact us now via Live Chat or [email protected].
Specification
AR168F Datasheet
AR168F Specification |
|
|
Memory |
512 MB |
|
Flash |
512 MB |
|
Service interfaces (standard configuration) |
WAN interfaces: 1 G.SHDSL interface and 1 GE combo interface LAN interfaces: 4 10/100/1000M auto-sensing Ethernet electrical interfaces |
|
Extended slots |
Not supported |
|
Interface number |
LAN interfaces: GE0-GE3 |
|
Power module type |
External power adapter |
|
Weight |
2.8 kg (6.17 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
