Product Model: AR157VW
Retail Price: US$771.00
Email Us To Get Special Price Now: [email protected]
Huawei AR G3 AR150 Series – AR157VW?fixed interface access voice & wireless router AR0M1577BA00 provides routing, switching, voice and wireless functionality for small business or branch offices.?
Quick Specs

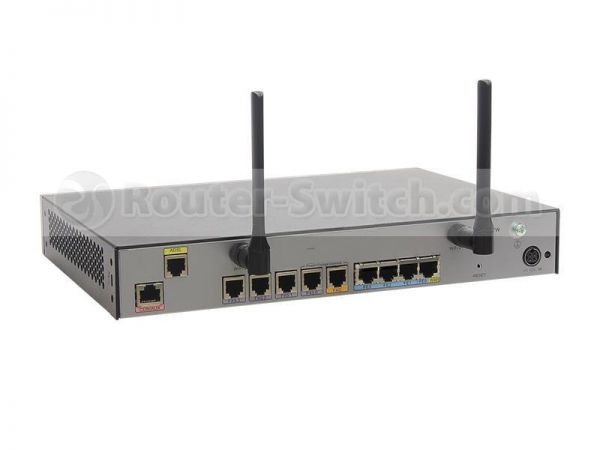

Figure 1 shows the appearance of Huawei Router – AR157VW.
?
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router – AR157VW |
|
Memory |
512 MB |
|
Flash |
512 MB |
|
Service?interfaces (standard configuration) |
WAN interfaces: 1 ADSL-A/M interface LAN interfaces: 4 10/100M auto-sensing Ethernet electrical interfaces Voice interface: 4 FXS interfaces and 1 FXO interface |
|
Extended slots |
Not supported |
|
Interface number |
LAN interfaces: FE0-FE3 |
|
Power module type |
External power adapter |
|
Weight |
2.8?kg |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
Product Details
Figure 2 shows the?back?panel of Huawei Router – AR157VW.
?
Note:
|
① |
CON/AUX?interface |
|
② |
WAN?interfaces |
|
③ |
Four FXS interfaces |
|
④ |
FXO interface |
|
⑤ |
LAN interfaces: 4 FE electrical |
|
⑥ |
RST button |
|
⑦ |
Power interface |
|
⑧ |
Jack for power cable locking strap |
Compare to Similar Items
Table 2?shows the comparison between AR157VW and AR2220E.?
|
Model |
AR157VW |
AR2220E |
|
SIC Slots |
0 |
4 |
|
Memory |
512 MB |
1 GB |
|
Flash |
512 MB |
512 MB |
|
Weight |
2.8?kg |
6 kg (13.2 lb) |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
442.0 mm x 420.0 mm x 44.5 mm |
Get more information
Do you have any?question?about?the?AR157VW
Contact us now via Live Chat or [email protected].
Specification
AR157VW Datasheet
AR157VW Specification |
|
|
Memory |
512 MB |
|
Flash |
512 MB |
|
Service interfaces (standard configuration) |
WAN interfaces: 1 ADSL-A/M interface LAN interfaces: 4 10/100M auto-sensing Ethernet electrical interfaces Voice interface: 4 FXS interfaces and 1 FXO interface |
|
Extended slots |
Not supported |
|
Interface number |
LAN interfaces: FE0-FE3 |
|
Power module type |
External power adapter |
|
Weight |
2.8 kg |
|
Dimensions (W x D x H) |
300.0 mm x 216.4 mm x 44.0 mm |
Product Details
Figure 2 shows the back panel of Huawei Router – AR157VW.
Note:
|
① |
CON/AUX interface |
|
② |
WAN interfaces |
|
③ |
Four FXS interfaces |
|
④ |
FXO interface |
|
⑤ |
LAN interfaces: 4 FE electrical |
|
⑥ |
RST button |
|
⑦ |
Power interface |
|
⑧ |
Jack for power cable locking strap |
