Product Model: AR151-S2
Retail Price: US$0
Email Us To Get Special Price Now: [email protected]
Huawei AR G3 AR150 Series – AR151-S2 fixed interface access enterprise router provides routing and switching functionality for small business or branch offices. Huawei AR G3 AR151-S2 equips 1 Gigabit Ethernet WAN port, 4 Gigabit Ethernet LAN ports, and 1 USB.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router – AR151-S2 |
|
Memory |
512 MB |
|
Flash |
512 MB |
|
Service interfaces (standard configuration) |
WAN interfaces: 1 Gigabit Ethernet electrical interface LAN interfaces: 4 Gigabit Ethernet electrical interfaces |
|
Extended slots |
Not supported |
|
Interface number |
LAN interfaces: GE0-GE3 |
|
Power module type |
External power adapter |
|
Package Weight |
6 kg |
|
Dimensions (H x W x D) |
44.5 x 300 x 220 mm |
Product Details

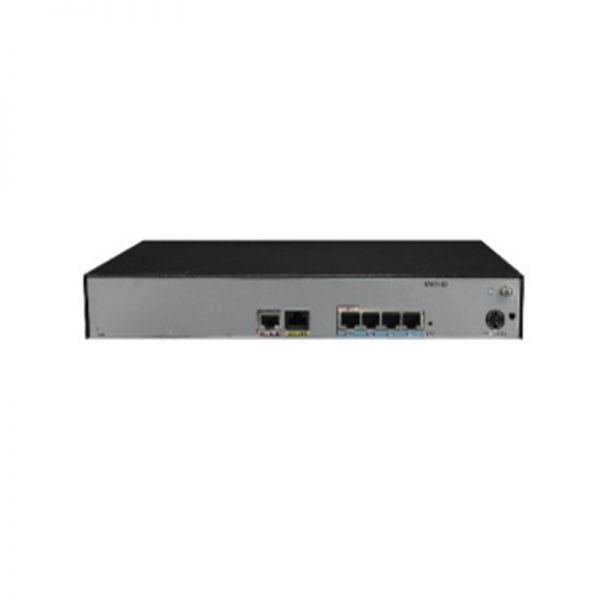

Figure 1 shows the back panel of Huawei Router – AR151-S2.
Note:
|
① |
CON/AUX interface |
|
② |
WAN FE electrical interfaces |
|
③ |
4 GE electrical interfaces |
|
④ |
RST button |
|
⑤ |
Power interface |
Compare to Similar Items
Table 2 shows the comparison between AR151-S and AR151-S2.
|
Model |
AR151-S |
AR151-S2 |
|
Ports |
4 × FE Ports |
4 × GE Ports |
|
Memory |
512 MB |
512MB |
|
Flash |
512 MB |
512MB |
|
Dimensions (H x W x D) |
44.5 x 300 x 220 mm |
44.5 x 300 x 220 mm |
Get more information
Do you have any question about the AR151-S2
Contact us now via Live Chat or [email protected].
Specification
AR151-S2 Datasheet
AR151-S2 Specifications |
|
|
Package Weight |
6 kg |
|
Dimensions (H x W x D) |
44.5 x 300 x 220 mm |
|
Memory |
512 MB |
|
Flash |
512 MB |
|
Hard disk |
None |
|
Service and Router Unit (SRU) |
Not supported |
|
Network data encryption (SM1/2/3/4) card |
Not supported |
|
Management interface |
Supported |
|
Console interface (RJ45) |
Supported |
|
Console interface (Mini USB) |
None |
|
USB 2.0 interface (host) |
Supported |
|
USB 2.0 interface (OTG) |
None |
|
Micro SD card (default) |
None |
|
Antenna interfaces |
None |
|
Service interfaces (standard configuration) |
WAN interfaces: 1 Gigabit Ethernet electrical interface LAN interfaces: 4 Gigabit Ethernet electrical interfaces |
|
Interface number |
LAN interfaces: GE0-GE3 NOTE: FE0 can be configured as a WAN interface. |
|
Extended slots |
Not supported |
|
Power module type |
External power adapter |
|
Rated voltage range |
100 V AC/240 V AC, 50 Hz/60 Hz |
|
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
|
RPS150 |
Not supported |
|
PoE |
Not supported |
|
Maximum PoE power for PDs |
None |
|
PoE+ interfaces |
None |
|
Operating temperature |
0°C to 45°C (32°F to 113°F) |
|
Operating altitude |
0-5000 m (0-16404 ft.) |
|
Fan type |
No fans |
|
Heat dissipation mode |
Natural heat dissipation |
|
Installation mode |
Desk mounting, wall mounting, rack mounting |
