Product Model: AR0MNTEH10401
Retail Price: US$1,683.00
Email Us To Get Special Price Now: [email protected]
Huawei AR G3 AR2200 series router AR0MNTEH10401 BT-NTE-H104 bundle including AR2220 base configuration, 8-Port 10/100BASE(RJ45) and 1-Port 10/100/1000BASE(RJ45)-L2/L3 Ethernet Interface Card,3m Shielded Straight through Ethernet Cable and Britain type power cable.
Quick Specs

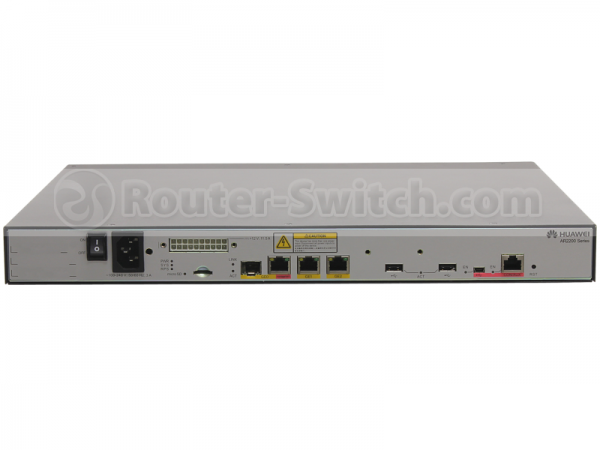

Figure 1 shows the appearance of Huawei Router – AR0MNTEH10401.
?
Table 1 shows the Quick Specs.
|
Product Code |
Huawei Router – AR0MNTEH10401 |
|
Memory |
2 GB |
|
Flash |
16?MB |
|
Service?interfaces (standard configuration) |
WAN interfaces: 2 GE electrical interfaces and 1 GE combo interface LAN interfaces: none |
|
Extended slots |
4 SIC slots and 2 WSIC slots |
|
Power module type |
Built-in AC power module |
|
Weight |
7 kg (15.4 lb) |
|
Dimensions (W x D x H) |
442.0 mm x 420.0 mm x 44.5 mm |
Product Details
Figure 2 shows the front panel of Huawei Router – AR0MNTEH10401.
?
Note:
|
① |
Power switch |
|
② |
AC power jack |
|
③ |
Jack for power cable locking strap |
|
④ |
Micro SD card interface |
|
⑤ |
GE combo interface |
|
⑥ |
Two GE electrical interfaces |
|
⑦ |
Two USB interfaces (host) |
|
⑧ |
Mini USB interface |
|
⑨ |
CON/AUX interface |
|
⑩ |
RST button |
Figure 3?shows the back?panel of Huawei Router – AR0MNTEH10401.
?
Note:
|
① |
ESD Jack |
|
② |
Ground point |
|
③ |
Two WSIC slots(The installed cards must be ordered separately.) |
|
④ |
Four SIC slots(The installed cards must be ordered separately.) |
The?Optical Transceivers, Cards
Table 2 shows the recommended elements for the Huawei Router – AR0MNTEH10401.
|
Model |
Description |
|
Ethernet LAN interface card |
|
|
AR-4ES2G-S |
4-Port 1000BASE-RJ45 L2 Ethernet Interface Card |
|
AR-9ES2-W |
8 Port 100M-RJ45 and 1 Port 1000M- RJ45 L2 Ethernet Interface Card |
|
FE-SFP Optical Transceiver |
|
|
SFP-FE-SX-MM1310 |
SFP,100M/155M,Multi-mode Module(1310nm,2km,LC) |
|
eSFP-FE-LX-SM1310 |
eSFP,100M/155M,Single-mode Module(1310nm,15km,LC) |
|
S-SFP-FE-LH40-SM1310 |
eSFP,FE,Single-mode Module(1310nm,40km,LC) |
|
GE-SFP Optical Transceiver |
|
|
SFP-1000BaseT |
SFP,GE,Electrical Interface Module(100m,RJ45) |
|
eSFP-GE-SX-MM850 |
eSFP,GE,Multi-mode Module(850nm,0.55km,LC) |
|
SFP-GE-LX-SM1310 |
eSFP,GE,Single-mode Module(1310nm,10km,LC) |
|
S-SFP-GE-LH40-SM1310 |
eSFP,GE,Single-mode Module(1310nm,40km,LC) |
|
S-SFP-GE-LH40-SM1550 |
eSFP,GE,Single-mode Module(1550nm,40km,LC) |
Compare to Similar Items
Table 3?shows the comparison between AR0MNTEH10401 and AR2204-27GE.
|
Model |
AR0MNTEH10401 |
AR2204-27GE |
|
WAN Speed with Services |
400 Mbit/s |
200 Mbit/s |
|
SIC Slots |
4 |
4 |
|
Fixed WAN Ports |
3 x GE (1 x Combo) |
3 x GE (1 x Combo) |
|
Memory |
2 GB |
512 MB |
|
Dimensions (W x D x H) |
442.0 mm x 420.0 mm x 44.5 mm |
44.5 mm x 442 mm x 420 mm |
Get more information
Do you have any?question?about?the?AR0MNTEH10401
Contact us now via Live Chat or [email protected].
Specification
AR0MNTEH10401 Datasheet
AR0MNTEH10401 Specification |
|
|
WAN Speed with Services*** |
400 Mbit/s |
|
Firewall Performance (large packets) |
1.9 Gbit/s |
|
Number of recommended users |
300 |
|
Fixed WAN Ports |
3 x GE (1 x Combo port) |
|
SIC Slots |
4 |
|
WSIC Slots (default/max**) |
2/4 |
|
XSIC Slots (default/max**) |
0/2 |
|
EXSIC Slot (shared with XSIC slots) |
0 |
|
DSP Slots |
1 |
|
USB 2.0 Ports |
2 |
|
Mini-USB Ports |
1 |
|
Console Port |
1 |
|
Memory |
2 GB |
|
Flash |
2 GB/8 GB |
|
Maximum Power |
150W |
|
Redundant Power Supply |
– |
|
AC Power |
100V to 240V |
|
Frequency |
50 Hz/60 Hz |
|
DC Power |
-48V to -60V |
|
Dimensions (height x width x depth) |
44.5 mm x 442 mm x 420 mm |
|
Weight |
4.95 kg (without power module and interface card) |
|
Ambient Temperature |
0°C to 45°C |
|
Relative Humidity |
5% to 95% (non-condensing) |
