HPE JL070A – Aruba 2530 Series Switches Price & Product Datasheet

Product Model: JL070A

Retail Price: US$676.00

Email Us To Get Special Price Today: [email protected]

JL070A is the switch with 8-PoE+ Internal Power Supply. The Aruba 2530 Switch Series provides security, reliability, and ease of use for enterprise edge, branch office, and SMB deployments.?

Quick Specs

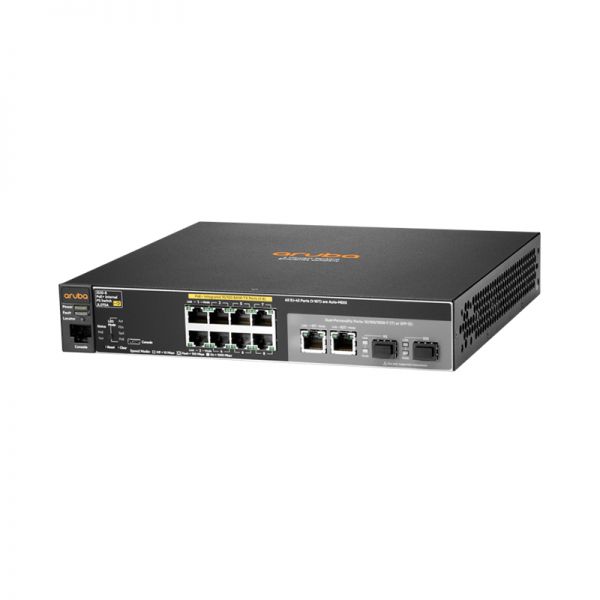

Figure 1 shows the appearance of JL070A.

Table 1 shows the Quick Specs.

Product Code	JL070A
Dimensions	10(w) x 9.68(d) x 1.75(h) in (25.4 x 24.59 x 4.45 cm) (1U height)
Switching capacity	5.6 Gbps
MAC address table size	16000 entries
AC voltage	100 – 127/200 – 240 VAC
Current	0.9/0.5 A
Maximum power rating	70.2 W
Idle power	5.3 W
PoE power	67 W PoE

Product Details

Figure 2 shows the front panel of JL070A.

JL070A provides these features:

• ● ?Cost-effective, reliable and secure Aruba Layer 2 switch series
• ● ?Flexible Management via Aruba AirWave, Aruba Central, and Aruba ClearPass Policy Manager
• ● ?Right size deployment with choice of 8, 24 and 48 port Gigabit and Fast Ethernet models
• ● ?Up to 370W PoE+ to power IoT, APs and cameras
• ● ?REST API support
• ● ?Simple deployment with Zero Touch Provisioning

Quality of Service (QoS)

• ● ?Traffic prioritization (IEEE 802.1p) for real-time traffic classification. Support for eight priority levels mapped to either two or four queues, and uses weighted deficit round robin (WDRR) or strict priority
• ● ?Simplified quality of service (QoS) configuration

– Port-based traffic prioritization by specifying a port and priority level

– VLAN-based traffic prioritization by specifying a VLAN and priority level

• ● ?Class of Service (CoS) sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source port, and DiffServ
• ● ?Rate limiting establishes per-port ingress-enforced maximums for all traffic or for broadcast, multicast, or unknown destination traffic
• ● ?Layer 4 prioritization enables priorities based on TCP/UDP port numbers
• ● ?Flow control delivers reliable communication during full-duplex operation

Simplified Configuration and Management

• ● ?Aruba Central cloud-based management platform offers a simple, secure and cost effective way to manage switches. Complies with RFC 7030 for encryption key enrollment
• ● ?Zero-Touch-Provisioning (ZTP) simplifies installation of the switch infrastructure using DHCP-based process with AirWave
• ● ?Flexible management ¨C Supports both cloud-based Central and on-premise AirWave without ripping and replacing switching infrastructure
• ● ?Choice of management interfaces

– HTML-based easy-to-use Web GUI allows configuration of the switch from any Web browser

– Robust CLI provides advanced configuration and diagnostics

– Simple network management protocol (SNMPv1/v2c/v3) allows the switch to be managed with a variety of third-party network management applications

• ● ?Provides single IP address management for up to 16 switches individually
• ● ?sFlow? (RFC 3176) delivers wire-speed traffic accounting and monitoring, configured by SNMP and CLI with three terminal encrypted receivers
• ● ?IEEE 802.1AB Link-Layer Discovery Protocol (LLDP) automates device discovery protocol for easy mapping by network management applications
• ● ?Provides local and remote logging of events via SNMP (v2c and v3) and syslog; provides log throttling and log filtering to reduce the number of log events generated
• ● ?Port mirroring allows traffic to be mirrored on any port or a network analyzer to assist with diagnostics or detecting network attacks
• ● ?Remote monitoring (RMON) provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events
• ● ?Friendly port names allows assignment of descriptive names to ports
• ● ?Dual flash images provides independent primary and secondary operating system files for backup while upgrading
• ● ?Multiple configuration files are easily stored with a flash image
• ● ?Front-panel LEDs

– Locator LEDs allows users to set the locator LED on a specific switch to turn on, blink, or turn off; and simplifies troubleshooting by making it easy to locate a particular switch within a rack of similar switches

– Per-port LEDs provides an at-a-glance view of the status, activity, speed, and full-duplex operation

– Power and fault LEDs display issues, if any

?Product architecture

• ● ?Energy-efficient design

– IEEE 802.3az reduces power consumption during periods of low data activity on Gigabit Ethernet switches

– Port low-power mode enables the port to automatically go into low-power mode to conserve energy when no link is detected

– Fan-less and variable-speed fans decrease power consumption in fan-less (all 8-port, 2530-24, and 2530-48 PoE+ switches) as well as variable-speed fan switches

– Port LEDs conserves energy by optionally turning off port link and activity LEDs

• ● ?Switch on a chip provides a highly integrated, highperformance switch design with a nonblocking architecture

Flexibility

• ● ?Power Savings with Energy Efficient Design

– Rack mountable allows the switch to be mounted on a standard 19-inch rack, with the hardware included

– Wall mountable allows the switch to be mounted on a wall, using the hardware included

– Surface mountable allows the switch to be mounted above or below a surface (such as a desk or table), using the hardware included

• ● ?Quiet operation lowers noise, making it suitable for deployments in acoustically sensitive environments such as conference rooms and office spaces
• ● ?Compact size reduces space requirements (refer to the product specifications for the exact dimensions)

Compare to Similar Items

Table 2 shows the comparison of JL070A.

Module	JL070A	J9773A
Dimensions	10(w) x 9.68(d) x 1.75(h) in (25.4 x 24.59 x 4.45 cm) (1U height)	17.44 (w) x 13.00 (d) x 1.75 (h) in (44.3 x 33.02 x 4.45 cm) (1U height)
Frequency	50/60 Hz	50/60 Hz
Maximum heat dissipation	29 BTU/hr (30.6 kJ/hr), (switch only: 29 BTU/hr; combined switch + max. PoE devices: 239 BTU/hr)	135 BTU/hr (142.42 kJ/hr), (switch only: 135 BTU/hr; combined switch + max. PoE devices: 843 BTU/hr)
AC voltage	100 – 127/200 – 240 VAC	100 – 127/200 – 240 VAC
Current	0.9/0.5 A	3.2/1.6 A
Maximum power rating	70.2 W	247 W
Idle power	5.3 W	25.2 W
PoE power	67 W PoE	195 W
