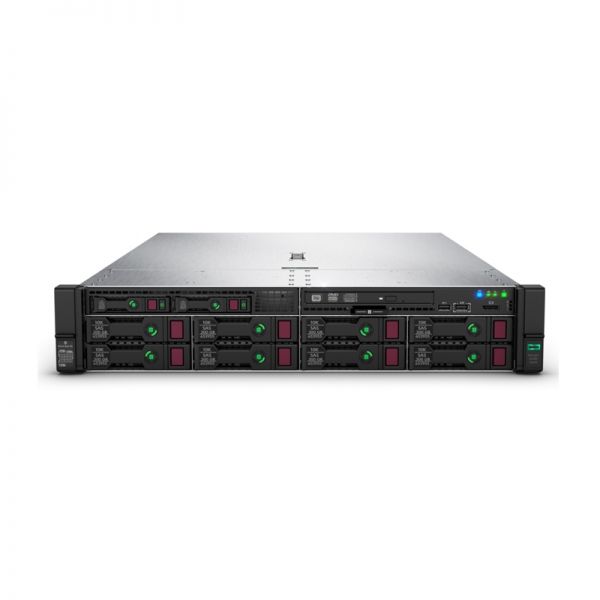

Product Model: HPE DL388 Gen10 8LFF BTO
Retail Price: US$1,593.75
Email Us To Get Special Price Today: [email protected]
HPE DL388 Gen10 8LFF provides 3 bundles, including:
– HPE DL388 Gen10 3204 (6-Core, 1.9 GHz) 1P 16G S100i 8LFF 500W PS Server
– HPE DL388 Gen10 4208 (8-Core, 2.1 GHz) 1P 16G S100i 8LFF 500W PSServer
Product Details
Figure 1 shows the HPE DL388 Gen10 8LFF front panel components.
Note:
|
① |
Drives (optional) |
② |
LFF power switch module |
③ |
Drive bays |
Figure 2 shows the rear panel components. These installed drives need to be purchased separately.
Note：
|
① |
Primary riser slots 1-3 (Optional drive cage) |
⑤ |
Power supply 2 |
⑨ |
iLO management port |
|
② |
Optional riser slots 4-6 (Optional drive cage) |
⑥ |
Video port |
⑩ |
USB 3.0 ports |
|
③ |
Optional riser slots 7-8 (Optional drive cage) |
⑦ |
Serial port (optional)* |
FlexibleLOM slot |
|
|
④ |
Power supply 1 |
⑧ |
1Gb RJ-45 ports 1–4 |
|
|
*When a tertiary riser cage is installed as shown, the serial port can be installed in riser slot 6.
Supported Hard Drives
Table 1 shows the supported LFF hard drives.
|
Model |
Description |
|
P09153-B21 |
HPE 14TB SAS 7.2K LFF SC He 512e DS HDD |
|
881779-B21 |
HPE 12TB SAS 7.2K LFF SC He 512e DS HDD |
|
857644-B21 |
HPE 10TB SAS 12G 7.2K LFF SC He 512e DS HDD |
|
819201-B21 |
HPE 8TB SAS 7.2K LFF SC 512e DS HDD |
|
861754-B21 |
HPE 6TB SAS 7.2K LFF SC 512e DS HDD |
|
872487-B21 |
HPE 4TB SAS 7.2K LFF SC DS HDD |
|
872485-B21 |
HPE 2TB SAS 7.2K LFF SC DS HDD |
|
846524-B21 |
HPE 1TB SAS 7.2K LFF SC DS HDD |
|
P09163-B21 |
HPE 14TB SATA 7.2K LFF SC He 512e DS HDD |
|
881785-B21 |
HPE 12TB SATA 7.2K LFF SC He 512e DS HDD |
|
857648-B21 |
HPE 10TB SATA 6G 7.2K LFF (3.5in) SC He 512e DS HDD |
|
819203-B21 |
HPE 8TB SATA 7.2K LFF SC 512e DS HDD |
|
861750-B21 |
HPE 6TB SATA 7.2K LFF SC 512e DS HDD |
|
872491-B21 |
HPE 4TB SATA 7.2K LFF SC DS HDD |
|
872489-B21 |
HPE 2TB SATA 7.2K LFF SC DS HDD |
|
861691-B21 |
HPE 1TB SATA 7.2K LFF SC DS HDD |
Get More Information
Do you have any question about the HPE DL388 Gen10 8LFF
Contact us now via Live Chat or [email protected].
HPE DL388 Gen10 8LFF BTO Datasheet
HPE DL388 Gen10 Specification |
|
|
Processor |
– Up to 2 Intel Xeon Scalable 8100/8200 Series Or Intel Xeon Scalable 6100/6200 Series Intel Xeon Scalable 5100/5200 Series Intel Xeon Scalable 4100/4200 Series Intel Xeon Scalable 3100/3200 Series – 4 to 28 cores, depending on models |
|
Memory |
24 × DDR4 DIMM slots, Supports RDIMMS/LRDIMMS, 3.0 TB with 128 GB DDR4; 6.0 TB with HPE 512 GB 2666 Persistent Memory kit |
|
Storage Controllers |
1 HPE Smart Array S100i and/or 1 HPE Smart Array P408i-a and/or 1 HPE Smart Array P816i-a and/or 1 HPE Smart Array E208i-a, depending on model |
|
Drive Bays |
8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD; 2 M.2 SATA SSD standard on primary riser, depending on configuration; 6 SFF rear drive optional or 3 LFF rear drive optional and 2 SFF or 2 Dual UFF rear drive optional; 20 SFF NVMe optional; NVMe support via Express Bay will limit maximum drive capacity Max 459TB |
|
Power Supplies |
Up to 2 HPE Flexible Slot Power Supplies |
|
Dimension |
Imperial: 17.54 × 27.75 × 3.44 in Metric: 44.55 × 73.03 × 8.74 cm |
