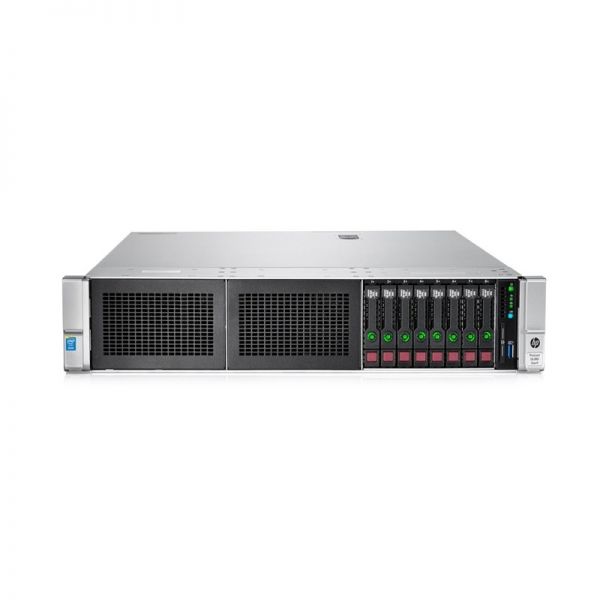

Product Model: HPE DL380 8 SFF CTO P19720-B21
Retail Price: US$4,155.65
Email Us To Get Special Price Today: [email protected]
Configuration
Table 1 shows the configuration.
|
Category |
SKU |
Description |
QTY |
|
Basic Chassis |
P19720-B21 |
HPE ProLiant DL380 Gen10 8 SFF NC CTO Server |
1 |
|
CPU |
P02502-L21 |
HPE DL380 Gen10 Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) FIO Processor Kit |
1 |
|
Memory |
P00924-B21 |
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
1 |
|
HDD Drive |
P19903-B21 |
HPE 960GB SAS RI SFF SC SSD |
1 |
|
Smart Array |
804331-B21 |
HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller |
1 |
|
Smart Storage Battery |
P01366-B21 |
HPE 96W Smart Storage Battery (up to 20 Devices/145mm Cable) Kit |
1 |
|
Network Card |
629135-B22 |
HPE Ethernet 1Gb 4-port 331FLR Adapter |
1 |
|
Power supply |
865414-B21 |
HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
1 |
|
Rail kit |
733660-B21 |
HP 2U Small Form Factor Easy Install Rail Kit |
1 |
Product Details
Figure 1 shows the DL380 Front View – SFF chassis with optional Universal Media bay with optical and 2 NVME plus 16 NVMe shown.
Note:
|
① |
Quick removal access panel |
|
② |
Optional Universal Media bay. 2 USB 2.0 and Display port standard (8 SFF bay or 6 SFF+2NVMe or 8NVMe optional) |
|
③ |
Optional Optical drive. Requires Universal Media bay |
|
④ |
Optional USB 2.0 (via Universal Media Bay) |
|
⑤ |
Drive Bay 2. NVMe shown (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional) |
|
⑥ |
8 SFF Drive Cage Bay |
|
⑦ |
Serial label pull tag |
|
⑧ |
Power On/Standby button and system power LED button |
|
⑨ |
Health LED |
|
⑩ |
NIC status |
|
UID button |
|
|
iLO Front Service Port |
|
|
USB 3.0 |
|
|
Box 3 |
|
|
Box 2 |
|
|
Box 1 |
|
|
Optional 2 SFF HDD, requires optional Universal Media bay |
|
|
Optional USB 2.0 (via Universal Media Bay) |
|
|
Optional front display port (Via Universal Media Bay) |
Figure 2 shows the DL380 back view.
Note:
|
① |
Primary Riser. PCI Slots (Slots 1-3 top to bottom, riser shipped standard, not shown), optional 2SFF rear drives |
|
② |
Secondary Riser. PCI Slots (Slots 4-6top to bottom, not shown, requires second riser card, and second processor). Showing optional 2 SFF rear |
|
③ |
Optional serial port |
|
④ |
Tertiary Riser (Slots 7-8). Optional rear 2 SFF HDD (supported in 24 SFF or 12 LFF front end) |
|
⑤ |
Power supply Power connection |
|
⑥ |
Power supply Power LED |
|
⑦ |
HPE Flexible Slot Power Supply bay 1 (800W shown) |
|
⑧ |
Power supply Power connection |
|
⑨ |
Power supply Power LED |
|
⑩ |
HPE Flexible Slot Power Supply bay 2 (800W shown) |
|
VGA connector |
|
|
Embedded 4 x 1GbE Network Adapter |
|
|
Dedicated iLO management port |
|
|
USB connectors 3.0 (2) |
|
|
Unit ID LED |
|
|
Optional FlexibleLOM ports (Shown: 4 x 1GbE) |
Get More Information
Do you have any question about the HPE DL380 8 SFF CTO Configured Server P19720-B21
Contact us now via Live Chat or [email protected].
HPE DL380 8 SFF CTO P19720-B21 Datasheet
HPE DL380 8 SFF CTO Configured Server P19720-B21 Specification |
|
|
Basic Chassis |
HPE ProLiant DL380 Gen10 8 SFF NC CTO Server |
|
CPU |
HPE DL380 Gen10 Intel Xeon-Gold 6230 (2.1GHz/20-core/125W) FIO Processor Kit |
|
Memory |
HPE 32GB (1x32GB) Dual Rank x4 DDR4-2933 CAS-21-21-21 Registered Smart Memory Kit |
|
HDD Drive |
HPE 960GB SAS RI SFF SC SSD |
|
Smart Array |
HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular Controller |
|
Smart Storage Battery |
HPE 96W Smart Storage Battery (up to 20 Devices/145mm Cable) Kit |
|
Network Card |
HPE Ethernet 1Gb 4-port 331FLR Adapter |
|
Power supply |
HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit |
|
Rail kit |
HP 2U Small Form Factor Easy Install Rail Kit |
