Product Model: HPE DL360 Gen10 8SFF BTO
Retail Price: US$1,832.60
Email Us To Get Special Price Today: [email protected]
The HPE ProLiant DL360 Gen10 8SFF BTO provides 3 bundles:
– HPE DL360 Gen10 3206R (8-Core, 1.9 GHz, 85W) 1P 16G NC P408i-a 2G 8SFF 500W Server
– HPE DL360 Gen10 4210R (10-Core, 2.4 GHz, 100W) 1P 16G NC P408i-a 2G 8SFF 500W Server
– HPE DL360 Gen10 4214R 2.4GHz 12-core 1P 32GBR P408i-a 8SFF 500W PS Server
Product Details

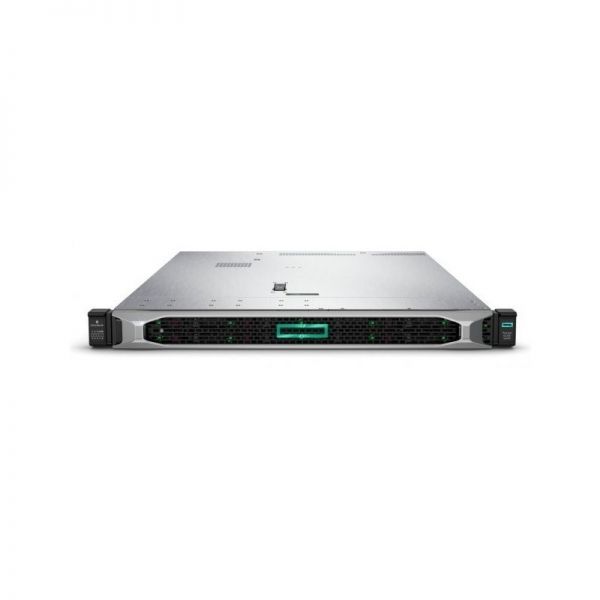

Figure 1 shows the appearance of HPE DL360 Gen10 8SFF.
Figure 2 shows the front panel of HPE DL360 Gen10 8SFF.
Note:
|
① |
Drive support label |
|
② |
Quick removal access panel |
|
③ |
Serial no. label pull tab |
|
④ |
Universal Media Bay Options: Option shown: +2 SFF SAS/SATA (total 10SFF) Option: +2 SFF NVMe drives Option: DVD-RW or DVD-ROM + Display port & USB 2.0 port Kit Option: +2 Dual uFF (4x M.2 cartridges) Option: Display port + USB 2.0 port Kit + Blank |
|
⑤ |
Power On/Standby button and system power LED |
|
⑥ |
Health LED |
|
⑦ |
NIC status LED |
|
⑧ |
UID button/LED |
|
⑨ |
USB 3.0 port |
|
⑩ |
iLO Service Port |
|
Standard 8 SAS/SATA/SSD drive bays |
Figure 3 shows the back panel of HPE DL360 Gen10.
Note:
|
① |
Slot 1 PCIe 3.0 port Option: Rear Drive +1 SFF or 1 uFF SSD (2x M.2 cartridges) |
|
② |
Slot 2 PCIe 3.0 |
|
③ |
Option: Slot 3 PCIe 3.0 (Requires 2nd processor) |
|
④ |
Power Supply 2 |
|
⑤ |
Power Supply 1 |
|
⑥ |
VGA port |
|
⑦ |
Embedded 4x 1GbE Adapter |
|
⑧ |
iLO Management Port |
|
⑨ |
Option: Serial Port |
|
⑩ |
USB 3.0 Ports |
|
Option: FlexibleLOM (Shown: 4x 1GbE) |
The Accessories
Table 2 shows the recommended elements for the HPE DL360 Gen10 8SFF.
|
Product number |
Description |
|
872475-B21 |
HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872477-B21 |
HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
870753-B21 |
HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
872479-B21 |
HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD |
|
868818-B21 |
HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
|
875503-B21 |
HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD |
Get more information
Do you have any question about the HPE DL360 Gen10 8SFF
Contact us now via Live Chat or [email protected].
HPE DL360 Gen10 8SFF BTO Datasheet
HPE DL360 Gen10 Server Specification |
|
|
Processor Type |
Intel |
|
Processor Family |
Intel Xeon Scalable 8100/8200 series – Intel Xeon Scalable 3100/3200 series |
|
Processor Core Available |
4 to 28 core, depending on model |
|
Processor Cache Installed |
8.25 – 38.50 MB L3, depending on processor |
|
Maximum Memory |
3.0 TB with 128 GB DDR4; 6.0 TB with HPE 512GB 2666 Persistent Memory Kit |
|
Memory Slots |
24 DIMM slots |
|
Memory Type |
HPE DDR4 SmartMemory and HPE Persistent Memory, depending on model |
|
NVDIMM Type |
HPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors |
|
NVDIMM Rank |
Single rank |
|
NVDIMM Capacity |
16 GB |
|
Drive Supported |
4 LFF SAS/SATA, 8 SFF SAS/SATA + 2 NVMe, 10 SFF SAS/SATA, 10 SFF NVMe, 1 SFF or 1 Dual UFF rear drive optional depending on model |
|
Network Controller |
Embedded 4 X 1GbE Ethernet Adapter (select models) or HPE FlexibleLOM and optional PCIe stand-up cards, depending on model |
|
Storage Controller |
HPE Smart Array S100i and/or HPE Essential or Performance RAID controllers, depending on model |
|
Product Dimensions (imperial) |
SFF Chassis: 1.69 x 17.11 x 27.83 in, LFF Chassis: 1.69 x 17.11 x 29.5 in |
|
Product Dimensions (metric) |
SFF Chassis: 4.29 x 43.46 x 70.7 cm, LFF Chassis: 4.29 x 43.46 x 74.98 cm |
