Product Model: HPE DL360 8 SFF CTO P19766-B21
Retail Price: US$6,548.00
Email Us To Get Special Price Today: [email protected]
The refurbished HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. It supports the Intel Xeon Scalable processor with up to a 60% performance gain and 27% increase in cores, along with 2933 MT/s HPE DDR4 SmartMemory supporting up to 3.0 TB with an increase in performance of up to 82%.
With the added performance that HPE Persistent Memory, HPE NVDIMMs and 10 NVMe bring, the HPE ProLiant DL360 Gen10 means business. Deploy, update, monitor and maintain with ease by automating essential server life cycle management tasks with HPE OneView and HPE Integrated Lights Out 5 (iLO 5). Deploy this 2P secure platform for diverse workloads in space constrained environments.
Product Details

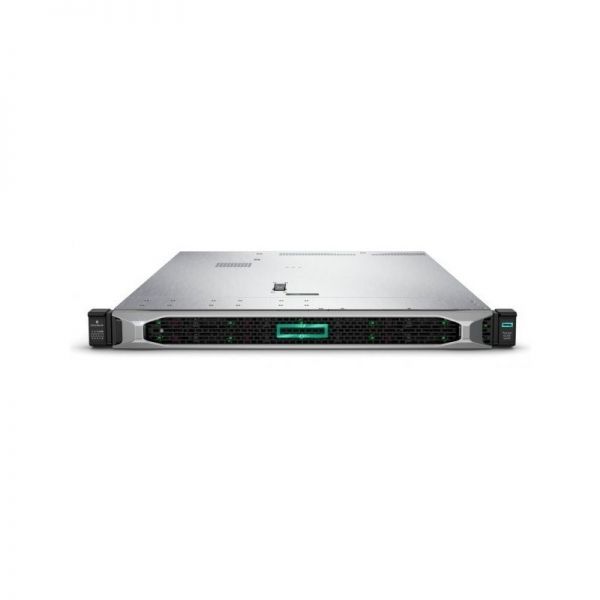

Figure 1 shows the appearance of HPE DL360 Gen10 8SFF.
Figure 2 shows the front panel of HPE DL360 Gen10 8SFF.
Note:
|
1 |
Drive support label |
|
2 |
Quick removal access panel |
|
3 |
Serial no. label pull tab |
|
4 |
Universal Media Bay Options: Option shown: +2 SFF SAS/SATA (total 10SFF) Option: +2 SFF NVMe drives Option: DVD-RW or DVD-ROM + Display port & USB 2.0 port Kit Option: +2 Dual uFF (4x M.2 cartridges) Option: Display port + USB 2.0 port Kit + Blank |
|
5 |
Power On/Standby button and system power LED |
|
6 |
Health LED |
|
7 |
NIC status LED |
|
8 |
UID button/LED |
|
9 |
USB 3.0 port |
|
10 |
iLO Service Port |
|
11 |
Standard 8 SAS/SATA/SSD drive bays |
Figure 3 shows the back panel of HPE DL360 Gen10.
Note:
|
1 |
Slot 1 PCIe 3.0 port Option: Rear Drive +1 SFF or 1 uFF SSD (2x M.2 cartridges) |
|
2 |
Slot 2 PCIe 3.0 |
|
3 |
Option: Slot 3 PCIe 3.0 (Requires 2nd processor) |
|
4 |
Power Supply 2 |
|
5 |
Power Supply 1 |
|
6 |
VGA port |
|
7 |
Embedded 4x 1GbE Adapter |
|
8 |
iLO Management Port |
|
9 |
Option: Serial Port |
|
10 |
USB 3.0 Ports |
|
11 |
Option: FlexibleLOM (Shown: 4x 1GbE) |
Features
1. Supporting the second generation Intel Xeon Scalable processor family with up to a 11% per-core performance gain over first generation and with memory speeds up to 2933 MT/s.
2. HPE Persistent Memory offers the flexibility to deploy as dense memory or fast storage featuring Intel Optane DC Persistent Memory and enables per-socket memory capacity of up to 3.0 TB.
3. 800GB 1.6/3.2/6.4TB NVMe Mixed Use SFF SSDs
4. 960GB 1.92/3.84/7.68TB NVMe Read Intensive SFF SSDs
5. 480GB/1.92/3.84TB SATA Mixed Use SFF SSDs
6. HPE StoreFabric SN1610Q 32Gb 1 port Fibre Channel Host Bus Adapter
7. HPE StoreFacbric SN1610Q 32Gb 2 port Fibre Channel Host Bus Adapter
8. Networking Choice (NC) server models provide greater flexibility in the primary networking selection.
9. HPE InfoSight provides a cloud-based analytics tool that predicts and prevents problems before your business is impacted.
10. Enhanced iLO 5 security features such as Server Configuration Lock, iLO Security Dashboard and Workload Performance Advisor.
Get More Information
Do you have any question about the HPE DL360 8 SFF CTO Server P19766-B21?
Contact us now via Live Chat or [email protected].
HPE DL360 8 SFF CTO P19766-B21 Datasheet
|
HPE DL360 Specification |
|
|
Dimensions (H x W x D) |
4.29 x 43.46 x 70.7 cm (1.69 x 17.11 x 27.83 in) |
|
Weight (Approximate) |
Minimum: 13.04 kg (28.74 Ib) (1 Drive, 1 processor, 1 power supply, 2 heatsinks, 1 Smart Array controller, and 5 fans) Maximum: 16.27 kg (35.86 Ib) (10 Drives, 2 processors, 2 power supplies, 2 heatsinks, 1 Smart Array controller and 7 fans) |
|
Input requirement (Per power supply) |
Rated line voltage For 1600 W (Platinum): 200-240 V ac For 800 W (Titanium) power supply: 200-240 V ac For 800 W (Platinum): 100-240 V ac For 800 W (Universal) power supply: 200-277 V ac For 800 W (-48 V dc): (-40) to (-72) V dc 500 W (Platinum) power supply: 100-240 V ac |
|
BTU rating |
Maximum: For 1600 W power supply: 5918 BTU/hr (At 200 V ac) 5888 BTU/hr (At 220 V ac) 5884 BTU/hr (At 240 V ac) For 800 W (Titanium) power supply: 2905 BTU/hr (At 200 V ac) 2899 BTU/hr (At 220 V ac) 2893 BTU/hr (At 240 V ac) For 800 W (Platinum) power supply: 3067 BTU/hr (At 100 V ac) 2958 BTU/hr (At 200 V ac) 2949 BTU/hr (At 240 V ac) For 800 W (Universal) power supply: 2964 BTU/hr (At 200 V ac) 2951 BTU/hr (At 230 V ac) 2936 BTU/hr (At 277 V ac) For 800 W (-48) V dc power supply: 2983 BTU/hr (At (-40) V dc)) 2951 BTU/hr (At (-48) V dc) 2912 BTU/hr (At (-72) V dc) For 500 W (Platinum) power supply: 1902 BTU/hr (At 100 V ac) 1840 BTU/hr (At 200 V ac) 1832 BTU/hr (At 240 V ac) |
|
Power supply output (Per power supply) |
Rated steady-state power: For 1600 W power supply: 1600 W (At 240 V ac) 1600 W (At 240 V dc) for china only For 800 W (Titanium) power supply: 800 W (At 200 V ac) 800 W (At 240 V ac) 800 W (At 240 V dc) for china only For 800 W (Platinum) power supply: 800 W (At 100 V ac) 800 W (At 240 V ac) 800 W (At 240 V dc) input for china only For 800 W (-48) V dc power supply: 800 W (At (-40) V dc) 800 W (At (-72) V dc) For 800 W (Universal) power supply: 800 W (At 200 V ac) 800 W (At 277 V ac) For 500 W (Platinum) power supply: 500 W (At 100 V ac) 500 W (At 240 V ac) 500 W (At 240 V dc) input for china only |
|
Maximum peak power: For 1600 W power supply: 1600 W (At 200 to 240 V ac) 1600 W (At 240 V dc) input for china only For 800 W (Titanium) power supply: 800 W (At 200 V ac) 800 W (At 240 V ac) 800 W (At 240 V dc) for china only For 800 W (Platinum) power supply: 800 W (At 100 V ac) 800 W (At 240 V ac) 800 W (At 240 V dc) input for china only For 800 W (Universal) power supply: 800 W (At 200 V ac) 800 W (At 277 V ac) For 800 W (-48) V dc power supply: 800 W (At (-40) V dc) 800 W (At (-72) V dc) For 500 W (Platinum) power supply: 500 W (At 100 V ac) 500 W (At 240 V ac) 500 W (At 240 V dc) input for china only |
|
