GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF Product Price & Datasheet

SFP Port Cabling Description
Product	Wavelength (nm)	Fiber Type	Core Size (μm)	Modal Bandwidth (MHz* Km)***	Operating Distance (m)
1000BASE-SX	850	MMF	62.5	160 (FDDI-grade)	220 (722 ft)
			62.5	200 (OM1)	275 (902 ft)
			50	400 (400/400)	500 (1,640 ft)
			50	500 (OM2)	550 (1,804 ft)
			50	2000 (OM3)	1000 (3281 ft)
1000BASE-LX/LH	1310	MMF*	62.5	500	550 (1,804 ft)
			50	400	550 (1,804 ft)
			50	500	550 (1,804 ft)
		SMF	–	–	10,000 (32,821 ft)
1000BASE-EX	1310	SMF	–	–	40,000 (131,234 ft)
1000BASE-ZX (GLC-ZX-SMD)	1550	SMF	–	–	Approximately 70 km depending on link loss
1000BASE-BX-U	1310	SMF	–	–	10,000 (32,821 ft)
1000BASE-BX-D	1490	SMF	–	–	10,000 (32,821 ft)



Cisco GLC-LH-SMD 1000BASE-LX/LH SFP is made for Both Multimode and Single-Mode Fibers. The 1000BASE-LX/LH SFP, compatible with the IEEE 802.3z 1000BASE-LX standard, operates on standard single-mode fiber-optic link spans of up to 10 km and up to 550 m on any multimode fibers. When used over legacy multimode fiber type, the transmitter should be coupled through a mode conditioning patch cable. 1300-nm wavelength, extended operating temperature range and DOM support, dual LC/PC connector.

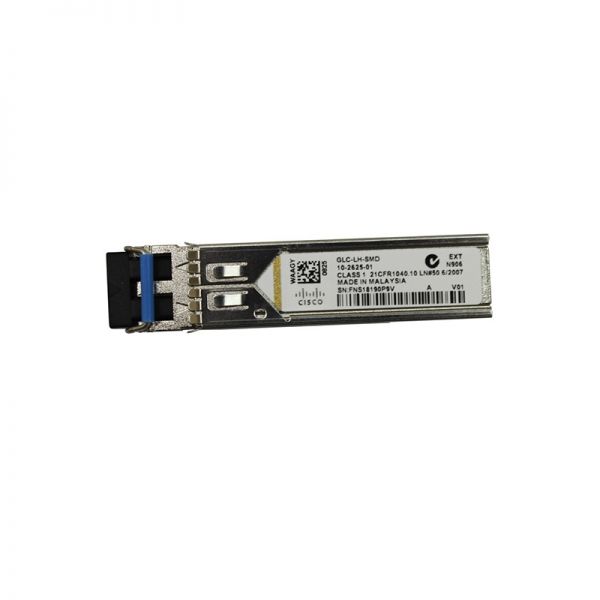

This Figure shows the appearance of GLC-LH-SMD.

Features
① Up to 1.25Gb/s data links
② Hot-pluggable SFP Footprint
③ Compliant with Description for IEEE802.3Z
④ Eye Safety Designed to meet Laser Class1 Compliant with IEC60825-1
⑤ Single +3.3V Power Supply
⑥ RoHS compliance
⑦ 10km links on standard 9/125 micron singlemode fiber
⑧ Operating temperature range:
⑨ Standard 0 to +70 °C
⑩ Industrial -40 to +85 °C

Applications
① Gigabit Ethernet
② 1x Fiber Channel
③ Other optical links
