FS-224E-POE – Fortinet FortiSwitch 200 Series Price & Product Datasheet

Product Model: FS-224E-POE

Retail Price: US$874.00

Email Us To Get Special Price Today: [email protected]

FS-224E-POE deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices.

Quick Specs

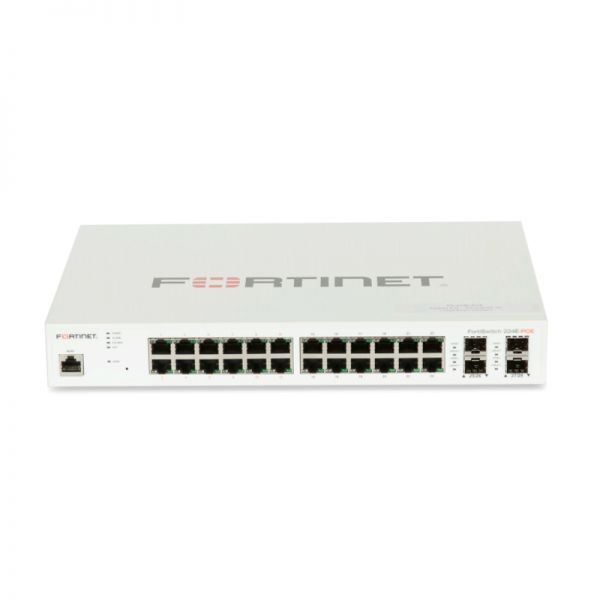

Figure 1 shows the appearance of FS-224E-POE.

Table 1 shows the Quick Specs.

Product Code	FS-224E-POE
Total Network Interfaces	24x GE RJ45 ports and 4x GE SFP ports
Power over Ethernet (PoE) Ports	12 (802.3af/802.3at)
PoE Power Budget	180 W
Height x Depth x Width (mm)	44 x 230 x 330
Power Required	100¨C240V AC, 50¨C60 Hz
Operating Temperature	32¨C122°F (0¨C50°C)

Product Details

Figure 2 shows the front panel of FS-224E-POE.

Figure 3 shows the back panel of FS-224E-POE.

FS-224E-POE provides these features:

Security Fabric Integration

Reduces complexity and decreases management cost with network security functions managed through a single console via FortiGate. This integration allows all users to be authenticated against the same user database, regardless of whether they connect to the wired or wireless network, including temporary guest users.

In addition, same security policy can apply to a user or device regardless of?how or where they connect to the?network.

Simplify Network Deployment

The Power over Ethernet (PoE) capability in some models, enables simple installation of wireless Access Points and IP phones in the network.

Highlights

• ● Secure Access switches suitable for wiringcloset and desktop installations
• ● Ideal for converged network environments; enabling voice, data and wireless traffic to be delivered across a single network
• ● Devices are identified and users authenticated prior to being granted access to the network
• ● Centralized security and access management from FortiGate interface
• ● Up to 48 ports in a compact 1 RU form?factor
• ● Stackable up to 300 switches per FortiGate depending on model
• ● Supports Wire-speed switching and Store and Forward forwarding mode

Compare to Similar Items

Table 2 shows the comparison of FS-224E-POE.

Module	FS-224E	FS-224E-POE
Total Network Interfaces	24x GE RJ45 ports and 4x GE SFP ports	24x GE RJ45 ports and 4x GE SFP ports??????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????
Switching Capacity (Duplex)	56 Gbps	56 Gbps
Packets Per Second (Duplex)	83 Mpps	83 Mpps
Power Consumption (Average / Maximum)	17.2 W / 17.3 W	220.18 W / 223.57 W
Redundant Power	Redundant AC	Optional FRPS-740
Heat Dissipation	59.095 BTU/h	74.29554 BTU/h
Power Required	100¨C240V AC, 50¨C60 Hz	100¨C240V AC, 50¨C60 Hz

?
