Product Model: FG-80F
Product Special Price: US$999.00
Email Us To Get Special Price Now: [email protected]
FG-80F Datasheet
| FG-80F Description | |
| Interfaces and Modules | FG-80F |
| GE RJ45/SFP Shared Media Pairs | 2 |
| GE RJ45 Internal Ports | 6 |
| GE RJ45 FortiLink Ports (Default) | 2 |
| GE RJ45 PoE/+ Ports | – |
| GE RJ45 PoE/+ FortiLink Ports (Default) | – |
| Bypass GE RJ45 Port Pair | – |
| Wireless Interface | – |
| USB Ports 3.0 | 1 |
| Console (RJ45) | 1 |
| Internal Storage | – |
| Trusted Platform Module (TPM) | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Signed Firmware Hardware Switch | – |
| System Performance-Enterprise Traffic Mix | |
| IPS Throughput 2 | 1 . 4 Gbps |
| NGFW Throughput 24 | 1Gbps |
| Threat Protection Throughput 2,5 | 900 Mbps |
| System Performance and Capacity | |
| IPv4 Firewall Throughput(1518 / 512 /64 byte, UDP) | 10 / 10 / 7 Gbps |
| Firewall Latency (64 byte, UDP) | 3.23 μs |
| Firewall Throughput (Packet per Second) | 10.5 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 45 000 |
| Firewall Policies | 5000 |
| IPsec VPN Throughput (512 byte)’ | 6.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2500 |
| SSL-VPN Throughput | 950 Mbps |
| Concurrent SSL-VPN Users(Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput(IPS,avg HTTPS)3 | 715 Mbps |
| SSL Inspection CPS (IPS, avg.HTTPS)3 | 700 |
| SSL Inspection Concurrent Session(IPS,avg HTTPS)3 | 100 000 |
| Application Control Throughput(HTTP 64K)2 | 1.8 Gbps |
| CAPWAP Throughput (HTTP 64K) | 9 Gbps |
The FortiGate 80F series provides an application- centric, scalable, and secure SD-WAN solution in a compact, fanless, desktop form factor for enterprise branch offices and mid-sized businesses.
Quick Specs

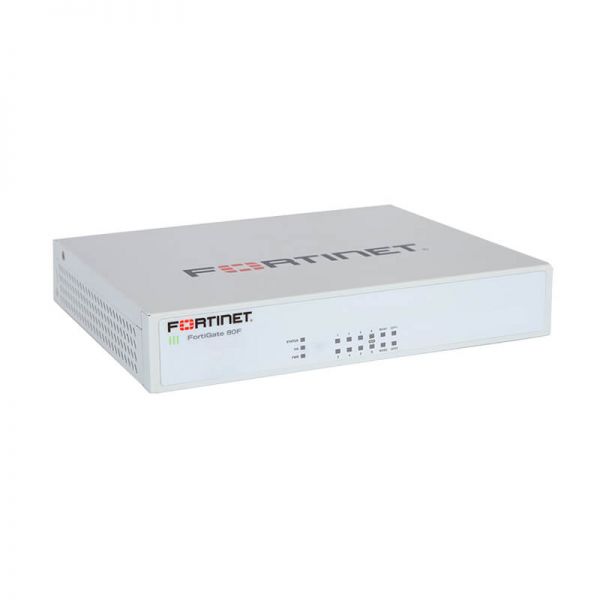

Figure 1 shows the appearance of FG-80F.
Table 1 shows the Quick Specs.
|
Product Code |
FG-80F |
|
Ethernet Technology |
Gigabit Ethernet |
|
Product Family |
FortiGate 80F |
|
Total Number of Ports |
10 |
Product Details
Figure 2 shows the Back panel of FG-80F.
Interfaces
1. 2 x GE RJ45/SFP Shared Media Ports
2. 2 x WAN GE RJ45 Ports, FG-80F-Bypass model only: 1x Bypass GE RJ45 Port Pair (WAN1 and Port1, default configuration)
3. 6 x GE RJ45* Ports
4. 2 x GE RJ45* FortiLink Ports
FG-80F provides these features:
Security
- ● Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
- ● Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
- ● Prevent and detect against known and unknown attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services
Performance
- ● Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
- ● Provides industry-leading performance and protection for SSL encrypted traffic
Certification
- ● Independently tested and validated best security effectiveness and performance
- ● Received unparalleled third-party certifications from NSS Labs
Networking
- ● Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
- ● n Delivers high-density, flexible combination of various high-speed interfaces to enable best TCO for customers for data center and WAN deployments
Management
- ● Includes a management console that is effective, simple to use, and provides comprehensive network automation and visibility
- ● Provides Zero Touch Integration with Fortinet’s Security Fabric’s Single Pane of Glass Management
- ● Predefined compliance checklists analyze the deployment and highlight best practices to improve the overall security posture
Security Fabric
- ● Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing, and automated remediation
Compare to Similar Items
Table 2 shows the comparison of FG-80F.
|
Module |
FG-80F |
FG-81F |
|
Ethernet Technology |
Gigabit Ethernet |
Gigabit Ethernet |
|
Product Family |
FortiGate 80F |
FortiGate 80F |
|
Total Number of Ports |
10 |
10 |
|
Manageable |
Yes |
Yes |
