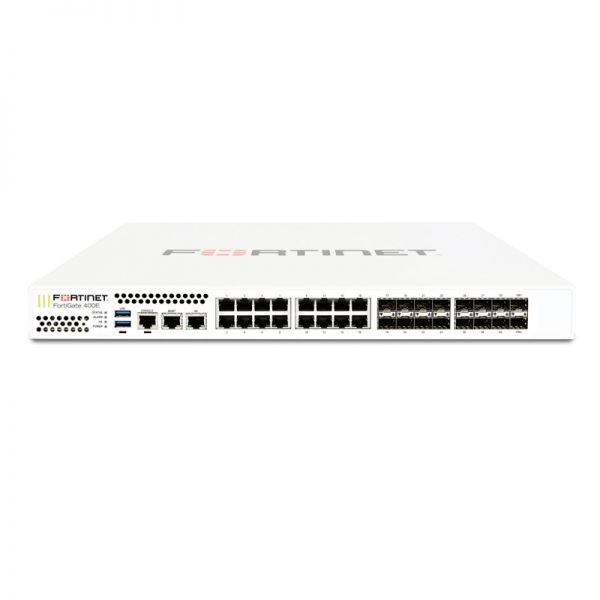

FG-401E – Fortinet Next general Firewalls -Middle range-400E Series Product Price & Datasheet

FG-401E Specification

Interfaces and Modules

Hardware Accelerated GE RJ45 Interfacess

16

Hardware Accelerated GE SFP Slots

16

GE RJ45 Management Ports

2

USB Ports

2

RJ45 Console Port

1

Onboard Storage

2x 240 GB SSD

Included Transceivers

2x SFP (SX 1 GE)

System Performance — Enterprise Traffic Mix

IPS Throughput ²

7.8 Gbps

NGFW Throughput ^{2, 4}

6 Gbps

Threat Protection Throughput ^{2, 5}

5 Gbps

System Performance and Capacity

IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)

32 / 32 / 24 Gbps

IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP)

32 / 32 / 24 Gbps

Firewall Latency (64 byte, UDP)

2.14 μs

Firewall Throughput (Packet per Second)

36Mpps

Concurrent Sessions (TCP)

4 Million

New Sessions/Second (TCP)

450,000

Firewall Policies

10,000

IPsec VPN Throughput (512 byte) 1 000

20 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

2,000

Client-to-Gateway IPsec VPN Tunnels

50,000

SSL-VPN Throughput

4.5 Gbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

5,000

SSL Inspection Throughput (IPS, avg. HTTPS) ³

4.8 Gbps

SSL Inspection CPS (IPS, avg. HTTPS) ³

4,000

SSL Inspection Concurrent Session (IPS, avg. HTTPS) ³

300,000

Application Control Throughput (HTTP 64K) ²

12 Gbps

CAPWAP Throughput (HTTP 64K)

14.8 Gbps

Virtual Domains (Default / Maximum)

10 / 10

Maximum Number of FortiSwitches Supported

72

Maximum Number of FortiAPs (Total / Tunnel)

512 / 256

Maximum Number of FortiTokens

5,000

High Availability Configurations

Active-Active, Active-Passive, Clustering

Dimensions and Power

Height x Width x Length (inches)

1.75 x 17.0 x 15.0

Height x Width x Length (mm)

44.45 x 432 x 380

Weight

16.9 lbs (7.9 kg)

Form Factor

Rack Mount, 1 RU

AC Power Consumption (Average / Maximum)

115 W / 221 W

AC Power Input

100–240V AC, 50/60Hz

AC Current (Maximum)

6A

Heat Dissipation

754 BTU/h

Redundant Power Supplies (Hot Swappable)

Optional

Operating Environment and Certifications

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-31–158°F (-35–70°C)

Humidity

10–90% non-condensing

Noise Level

48 dBA

Airflow

Side and Front to Back

Operating Altitude

Up to 7,400 ft (2,250 m)

Compliance

FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB

Certifications

ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6

Note: All performance values are “up to” and vary depending on system configuration.

1. IPsec VPN performance test uses AES256-SHA256.

2. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled.

3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites.

4. NGFW performance is measured with Firewall, IPS and Application Control enabled.

5. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled.
