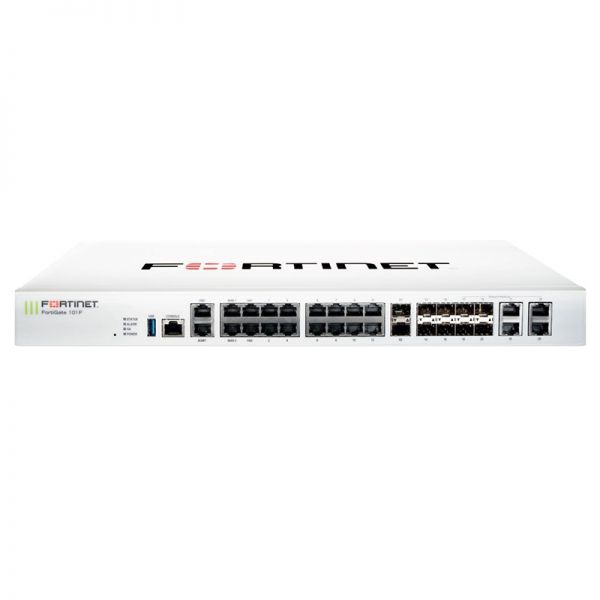

FG-101F-BDL-950-12 – Fortinet FortiGate NGFW Middle-range Series Product Price & Datasheet

FG-101F-BDL-950-12 specification
Miscellaneous
Compliant Standards	UL, BSMI, ICSA IPSec certified, ICSA Firewall certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, IPv6 Ready, RCM, ICSA SSL-VPN, ICSA IPS
Networking
Form Factor	External
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Network / Transport Protocol	IPSec
Performance	VPN throughput (IPSec): 11.5 Gbps ¦ NGFW throughput: 800 Mbps ¦ SSL inspection throughput: 1 Gbps ¦ IPS throughput: 1.6 Gbps ¦ Firewall throughput: 20 Gbps ¦ Threat protection throughput: 700 Mbps
Capacity	Maximum overlay tunnels: 2500
Status Indicators	Power, status, alarm, HA
Features	Firewall protection, switching, routing, IPv6 support, IPSec Virtual Private Network (VPN), anti-malware protection, web threat protection
Encryption Algorithm	SSL, 256-bit AES, 256-bit SHA, TLS 1.3
Environmental Parameters
Min Operating Temperature	32 °F
Max Operating Temperature	104 °F
Humidity Range Operating	10 – 90% (non-condensing)
General
Device Type	Security appliance
Bundled Services	1 year UTM Protection Bundle
Height (Rack Units)	1U
Width	17 in
Depth	10 in
Height	1.7 in
Processor / Memory / Storage
Processors Installed	1 x Fortinet FortiASIC SOC4
Hard Drive	SSD 480 GB x 1
Expansion / Connectivity
Interfaces	2 x 10Gb Ethernet – SFP+ ¦ 20 x 1000Base-T – RJ-45 ¦ 1 x 1000Base-T (management) – RJ-45 ¦ 1 x network – RJ-45 (DMZ) ¦ 1 x console – RJ-45 ¦ 1 x USB 3.0 – Type A ¦ 10 x Ethernet 1000 – SFP (mini-GBIC)
Power
Power Device	Internal power supply
Installed Qty	2
Max Supported Qty	2
Voltage Required	AC 120/230 V (50 – 60 Hz)
Power Consumption Operational	39.1 Watt

The FortiGate delivers next generation firewall capabilities for mid-sized to large enterprises, with the flexibility to be deployed at the campus or enterprise branch.

Quick Specs

Table 1 shows the Quick Specs.

Product Code	FG-101F-BDL-950-12
Power Device	Internal power supply
Installed Qty	2
Max Supported Qty	2
Voltage Required	AC 120/230 V (50 – 60 Hz)
Power Consumption Operational	39.1 Watt

Product Details

FG-101F-BDL-950-12 provides these features:

Security

• ● Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
• ● Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
• ● Prevent and detect against known and unknown attacks using continuous threat intelligence from AI powered FortiGuard Labs security services

Performance

• ● Delivers industry��s best threat protection performance and ultra-low latency using purpose built-security processor (SPU) technology
• ● Provides industry-leading performance and protection for SSL encrypted traffic

Certification

• ● Independently tested and validated best security effectiveness and performance
• ● Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin and AV Comparatives

Networking

• ● Best of Breed SD-WAN capabilities to enable application steering using WAN path control for high quality of experience
• ● Delivers advanced networking capabilities, high-performance, and scalable IPsec VPN capabilities to consolidate networking and security

Management

• ● Includes management console that��s effective, simple to use, and provides comprehensive network automation & visibility.
• ● Provides Zero Touch Integration with Security Fabric��s Single Pane of Glass Management
• ● Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture

Security Fabric

• ● Enables Fortinet and Fabric-ready partners�� products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation
• ● Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products

Compare to Similar Items

Table 2 shows the comparison of FG-101F-BDL-950-12.

Module	FG-101F-BDL-950-12	FG-601E
Power Device	Internal power supply	Internal power supply
Voltage Required	AC 120/230 V (50 – 60 Hz)	AC 120/230 V (50 – 60 Hz)
Power Consumption Operational	39.1 Watt	129 Watt
