Product Model: FAP-223E
Retail Price: US$285.00
Email Us To Get Special Price Today: [email protected]
FortiAPTM access points are managed centrally by the integrated WLAN controller of any FortiGate? security appliance or through the free FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet¡¯s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.
Quick Spec

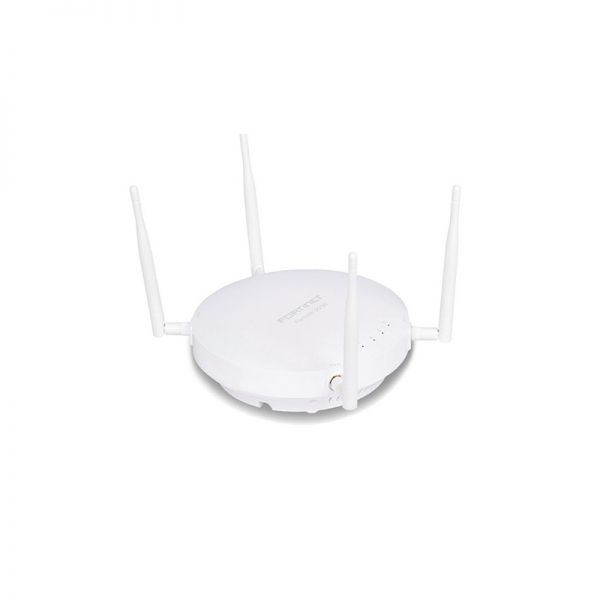

Figure 1 shows the appearance of FAP-223E.
Table 1 shows the quick spec.
|
Product Code |
FAP-223E |
|
Hardware Type |
Indoor AP |
|
Number of Radios |
2 + 1 BLE |
|
Number of Antennas |
4 Internal + 1 Internal BLE |
|
Antenna Type and Peak Gain |
Dipole: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz |
|
Frequency Bands (GHz) |
2.400¨C2.4835, 5.150¨C5.250, 5.250¨C5.350, 5.470¨C5.725, 5.725¨C5.850 |
|
Radio 1 Capabilities |
2.4 GHz b/g/n (2×2:2 stream) 20/40 MHz (256 QAM) |
|
Radio 2 Capabilities |
5 GHz a/n/ac (2×2:2 stream) 20/40/80 MHz (256 QAM) |
|
Maximum Data Rate |
Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps |
|
Bluetooth Low Energy Radio |
Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power |
Product Details
Figure 2 shows the front panel of FAP-223E.
Fortinet FAP-223E?provides these highlights:
* 802.11ac Wave 2
* Dual Radio 2.4 and 5 GHz
* 4 Internal/External Antennas
* 2×2 MU-MIMO
* Up to 400 + 867 Mbps
Before Purchasing
Do you have any question about the FAP-223E
Contact us – Email Live Chat or [email protected]
FAP-223E Datasheet
FAP-223E Specification |
|
|
Hardware |
|
|
Hardware Type |
Indoor AP |
|
Number of Radios |
2 + 1 BLE |
|
Number of Antennas |
4 Internal + 1 Internal BLE |
|
Antenna Type and Peak Gain |
Dipole: 4 dBi for 2.4 GHz, 5 dBi for 5 GHz |
|
Frequency Bands (GHz)* |
2.400¨C2.4835, 5.150¨C5.250, 5.250¨C5.350, 5.470¨C5.725, 5.725¨C5.850 |
|
Radio 1 Capabilities |
2.4 GHz b/g/n (2×2:2 stream) 20/40 MHz (256 QAM) |
|
Radio 2 Capabilities |
5 GHz a/n/ac (2×2:2 stream) 20/40/80 MHz (256 QAM) |
|
Maximum Data Rate |
Radio 1: up to 400 Mbps Radio 2: up to 867 Mbps |
|
Bluetooth Low Energy Radio |
Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power |
|
Interfaces |
1x 10/100/1000 Base-T RJ45 |
|
Power over Ethernet (PoE) |
IEEE 802.3af |
|
Simultaneous SSIDs |
16 (14 if background scanning enabled) |
|
EAP Type(s) |
EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST |
|
User/Device Authentication |
WPA?, WPA2?, and WPA3? with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist |
|
Maximum Tx Power |
2.4 GHz: 23 dBm / 200 mW (2 chains combined)** 5 GHz: 24 dBm / 251 mW (2 chains combined)** |
|
Kensington Lock |
Yes |
|
IEEE Standards |
802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3az |
|
SSID Types Supported |
Local-Bridge, Tunnel, Mesh |
|
Per Radio Client Capacity |
Up to 512 |
|
Cellular Co-existence |
Yes |
|
LED Off Mode Yes |
Yes |
|
Advanced 802.11 Features |
|
|
802.11ac Wave 2 MU-MIMO |
Yes |
|
Transmit Beam Forming (TxBF) |
Yes |
|
Low-Density Parity Check (LDPC) Encoding |
Yes |
|
Maximum Likelihood Demodulation (MLD) |
Yes |
|
Maximum Ratio Combining (MRC) |
Yes |
|
Wireless Monitoring Capabilities |
|
|
Rogue Scan Radio |
Background, Full-time |
|
WIPS / WIDS Radio Modes |
Background, Full-time |
|
Packet Sniffer Mode |
Yes |
|
Spectrum Analyzer |
Yes Yes |
|
Dimensions |
|
|
Length x Width x Height |
6.3 x 6.3 x 1.85 inches (160 x 160 x 47 mm) |
|
Weight |
1.1 lbs (0.5 kg) |
|
Package (shipping) Weight |
5.3 lbs (2.4 kg) |
|
Mounting Options |
Ceiling, T-Rail and Wall |
|
Included Accessories |
Mount kits for Ceiling, T-Rail, and Wall, 4 dipole antennas |
|
Environment |
|
|
Power Supply |
SP-FAP200-PA-XX, GPI-115, or GPI-130 |
|
Power Consumption (Max.) |
12.36 W |
|
Humidity |
5¨C90% non-condensing |
|
Operating / Storage Temperature
|
-4¨C113¡ãF (-20¨C45¡ãC) / -40¨C158¡ãF (-40¨C70¡ãC) -4¨C113¡ãF (-20¨C45¡ãC) / -40¨C158¡ãF (-40¨C70¡ãC) |
|
Directives |
Low Voltage Directive ? RoHS |
|
UL2043 Plenum Material |
Yes |
|
Mean Time Between Failures |
>30 Years |
|
IP Rating |
¡ª |
|
Surge Protection Built In |
¡ª |
|
Hit-less PoE Failover |
No |
|
Certifications |
|
|
Wi-Fi Alliance Certified |
Yes |
|
DFS |
FCC, IC, CE, Japan, Taiwan, Korea |
|
Warranty |
|
|
Limited Lifetime Warranty Yes |
Yes |
|
* Frequency selection and power may be restricted to abide by regional regulatory compliance laws. |
|
