Product Model: EX3400-24T
Retail Price: US$881.00
Email Us To Get Special Price Today: [email protected]

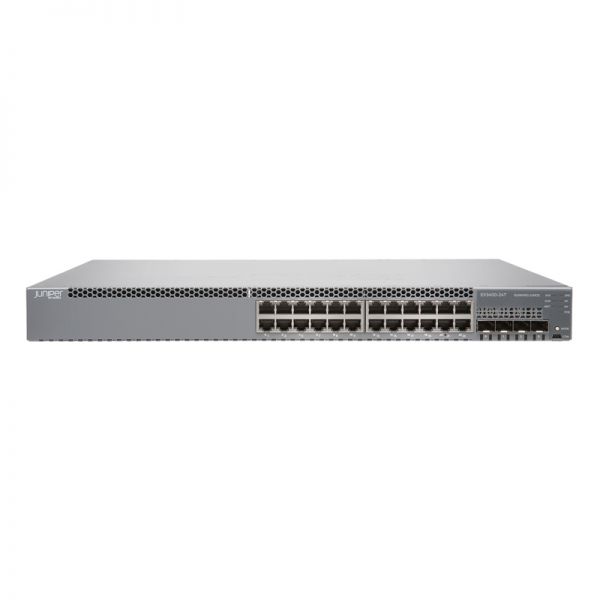

EX3400-24T is a Juniper EX3400 switch with 24-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports (optics not included). EX3400 Ethernet Switches are a cost-effective solution for today¡¯s most demanding converged data, voice, and video enterprise access networks. The compact, fixed-configuration 1U devices offer levels of performance and management previously available only with high-end access switches.
Quick Spec
Table 1 shows the quick spec.
|
SKU |
EX3400-24T |
|
Ports |
24-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
|
Backplane speed |
160 Gbps |
|
Data rate |
288 Gbps |
|
Throughput |
214 Mpps (wire speed) |
|
Dimensions (W x H x D) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
Product Details
Figure 1 shows the front panel of EX3400-24T.
Note:
|
¢Ù |
RJ-45 ports |
¢Ü |
Factory Reset/Mode button |
|
¢Ú |
Uplink ports |
¢Ý |
Port status mode LEDs |
|
¢Û |
Mini-USB console port |
¢Þ |
Chassis status LEDs |
Figure 2 shows the rear panel of EX3400 AC chassis.
Note:
|
¢Ù |
Management Ethernet port |
¢ß |
AC power supply |
|
¢Ú |
Protective earthing terminal |
¢à |
Serial Number ID Label |
|
¢Û |
ESD point |
¢á |
QSFP+ uplink ports |
|
¢Ü |
Fan modules |
¢â |
RJ-45 console port |
|
¢Ý |
CLEI code label |
? |
USB port |
|
¢Þ |
Empty slot for power supply covered by a blank panel |
|
|
Compare to Similar Items
Table 2 shows the comparison.
|
SKU |
EX3400-24T |
EX3400-24P |
EX3400-48T |
EX3400-48P |
|
Ports |
24-port 10/100/1000BASE-T with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
24-port 10/100/1000BASE-T (24 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
48-port 10/100/1000BASE-T, 4 x 1/10GbE SFP/SFP+, 2 x 40GbE QSFP+ |
48-port 10/100/1000BASE-T (48 PoE+ ports) with 4 SFP+ and 2 QSFP+ uplink ports (optics not included) |
|
Backplane speed |
160 Gbps |
160 Gbps |
160 Gbps |
160 Gbps |
|
Data rate |
288 Gbps |
288 Gbps |
336 Gbps |
336 Gbps |
|
Throughput |
214 Mpps (wire speed) |
214 Mpps (wire speed) |
250 Mpps (wire speed) |
250 Mpps (wire speed) |
|
Dimensions (W x H x D) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
Before Purchasing
Do you have any question about the EX3400-24T?
Contact us – Email Live Chat or [email protected].
EX3400-24T Datasheet
| EX3400-24T Specification | |
| Form factor | Fixed 1 U access |
| Port density | 1GbE and SFP+/QSFP+ uplink port options |
| Wired Assurance | Yes |
| Campus Fabrics | Virtual Chassis |
| Cloud Managed | Yes |
| Dimensions (W x H x D) | 17.4 x 1.7 x 13.8 in (43.7 x 4.4 x 35 cm) |
| 1 rack unit | |
| Backplane speed | 160 Gbps |
| Data rate | EX3400-24P/24T/24T-DC: 288 Gbps |
| EX3400-48P/48T: 336 Gbps | |
| Throughput | EX3400-24P/24T/24T-DC: 214 Mpps (wire speed) |
| EX3400-48P/48T: 250 Mpps (wire speed) | |
| Resiliency | Redundant, field-replaceable power supplies |
| Redundant trunk groups that provide port redundancy and simplify switch configuration | |
| Traffic monitoring | sFlow |
| Quality-of-service (QoS) queues/port | 8 unicast/4 multicast |
| MAC addresses | 32,000 |
| Jumbo frames | 9216 bytes |
| IPv4 unicast/multicast routes | 36,000/4,000 |
| IPv6 unicast/multicast routes | 18,000/2,000 |
| Number of VLANs | 4,096 |
| ARP entries | 16,000 |
