EX3400-24T-DC – Juniper EX3400 Series Ethernet Switches Price & Product Datasheet

Product Model: EX3400-24T-DC

Retail Price: US$2,162.00

Email Us To Get Special Price Today: [email protected]

Juniper Networks EX3400 Ethernet Switch delivers a highperformance, flexible, and costeffective solution for today¡¯s most demanding converged data, voice, and video enterprise access environments.

Quick Specs

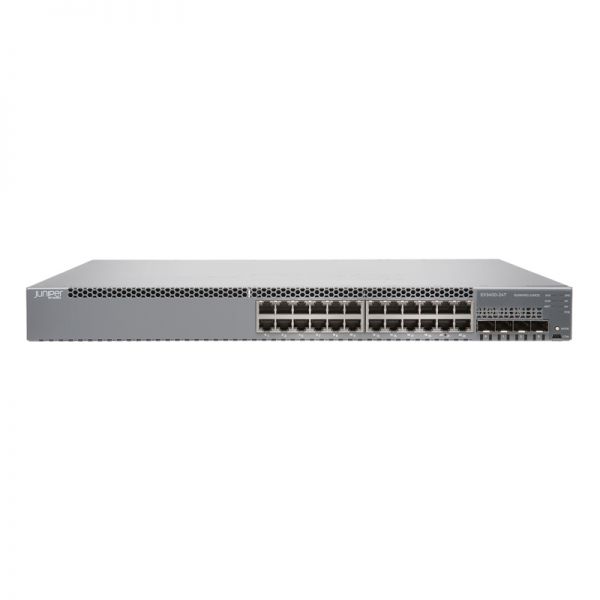

Figure 1 shows the appearance of EX3400-24T-DC.

Table 1 shows the Quick Specs.

Product Code	EX3400-24T-DC
Performance ?	Switching capacity (64-byte packet size): 288 Gbps, Throughput: 214 Mpps
Ports Qty	24
Advanced Switching	Layer 3
Manageable	Yes

Product Details

Figure 2 shows the front panel of EX3400-24T-DC.

EX3400-24T-DC provides these features:

• ● Junos Fusion Enterprise allows large numbers of EX3400 switches to be configured as satellite devices that connect to an EX9200 core aggregation switch to create a single logical device.
• ● 24-port and 48-port models with and without Power over Ethernet (PoE/PoE+) are for campus wiring closet deployments.
• ● Data center-optimized cooling options offer both front-to-back and back-to-front airflows, making the EX3400 suitable for GbE data center access deployments.
• ● Two redundant, field-replaceable power supplies each provide up to 920 watts of power.
• ● 24-port data center models are included for metro deployments.
• ● Four dual-mode (GbE/10GbE) small form-factor pluggable transceiver (SFP/SFP+) uplink ports and two 40GbE QSFP+ ports are available.
• ● Uplink ports can be configured as Virtual Chassis interfaces and connected via standard 10GbE/40GbE optic interfaces (40GbE uplink ports are preconfigured by default as Virtual Chassis ports).
• ● Comprehensive Layer 2 functionality with RIP and static routing is provided.
• ● A compact, 13.8-inch deep 1 U form factor supports flexible deployment options.
• ● An easy-to-manage solution includes centralized software upgrades and a single management interface.
• ● Support is available for the same consistent modular Juniper Networks Junos operating system control plane feature implementation used by all other Juniper fixed-configuration Juniper Networks EX Series Ethernet Switches.
• ● Support Is provided for Layer 3 (OSPF v2, IGMP v1/v2/v3, PIM, VRRP, Q-in-Q, BFD, virtual router) via an enhanced feature license (optional license required).
• ● Support is available for IPv6 management, including neighbor discovery, stateless auto configuration, telnet, SSH, DNS, system log, NTP, ping, traceroute, ACL, CoS static routing, and RIPng.
• ● IPv6 routing features (OSPFv3, virtual router support for unicast, VRRPv6, PIM, MLDv1/v2) are supported via an enhanced feature license.
• ● Energy Efficient Ethernet (EEE) capability is provided.

Compare to Similar Items

Table 2 shows the comparison of EX3400-24T-DC.

Module	EX3400-24T-DC	EX3400-24T
Performance ?	Switching capacity (64-byte packet size): 288 Gbps, Throughput: 214 Mpps	Switching capacity (64-byte packet size): 288 Gbps, Throughput: 214 Mpps
Ports Qty	24	24
Advanced Switching	Layer 3	Layer 3
Manageable	Yes	Yes
