Product Model: ES1B06SACA0N
Retail Price: US$15,018.00
Email Us To Get Special Price Today: [email protected]

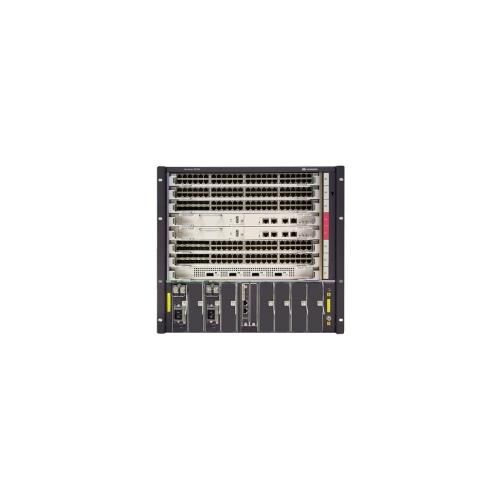

Discover the Huawei ES1B06SACA0N, a high-performance ICT product designed for enterprise networking needs. This AC bundle includes all essential components like assembly chassis, main board, power supplies, and interface cards. Ideal for network engineers and procurement teams, it ensures reliable connectivity for various business environments.
Huawei ES1B06SACA0N Product Highlights
- High-performance networking
- Comprehensive AC bundle
- Scalable architecture
- Diverse interface options
- Optimized for enterprise use
Product Datasheet Comparison
| Model | Huawei ES1B06SACA0N | Huawei S5720-28X-SI-AC | HP 5130-24G-4SFP+ | Cisco Catalyst 9300 | Juniper EX4300 | Arista 7050S-64 | Extreme Summit X460-G2 |
|---|---|---|---|---|---|---|---|
| Main Board | SRUA Main Board | Integrated | Integrated | Modular | Modular | Modular | Integrated |
| Power Supply | 800W AC*2 | 350W | 850W | 715W | 350W | 750W | 750W |
| 10/100/1000BASE-T Ports | 48 Ports | 24 Ports | 24 Ports | 48 Ports | 24 Ports | 48 Ports | 24 Ports |
| 10GBASE-X Ports | 2 Ports | 4 Ports | 4 Ports | 8 Ports | 4 Ports | 4 Ports | 4 Ports |
| Power Redundancy | Yes | No | Yes | Yes | Yes | Yes | Yes |
Huawei ES1B06SACA0N Product Application Scenarios
- Enterprise network core
- Data center connectivity
- Large campus network
Optional Add-ons
| Model | Description |
|---|---|
| LS-S7910-FAN | Fan Assembly for S7700 |
| LS-S7700-SCUN | Switch Control Unit |
| LS-X100-XFP | XFP Transceiver Module |
Before Purchasing
Discover unbeatable prices and fast shipping for the Huawei ES1B06SACA0N. Access the detailed ES1B06SACA0N datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].
ES1B06SACA0N Datasheet
ES1B06SACA0N Specifications |
|
| Chassis Type | Assembly Chassis |
| Main Board | SRUA Main Board (1 unit) |
| Power Supply | 800W AC Power (2 units) |
| 10/100/1000BASE-T Interface Card | 48-Port, FA, RJ45 (2 units) |
| 10GBASE-X Interface Card | 2-Port, EA, XFP (1 unit) |
| Layer Supported | Layer 3 |
| Switching Capacity | 5.12 Tbps |
| Packet Forwarding Rate | 1440 Mpps |
| Number of Slots | 6 slots |
| Redundancy | Support for Redundant Components |
| High Availability | Yes |
| Operating Temperature | 0¡ãC to 40¡ãC |
| Storage Temperature | -40¡ãC to 70¡ãC |
| Humidity | 5% to 95% (non-condensing) |
| Dimensions (WxDxH) | 44.5×47.0x73.0 cm |
| Voltage Range | 100V-240V AC |
| Power Consumption | 800 Watts |
| Connector Type | RJ45, XFP |
| Compliance Certifications | CE, FCC, RoHS |
| Warranty | 1 Year |
