Product Model: ES-8-150W
Retail Price: US$345.00
Email Us To Get Special Price Today: [email protected]
The ES-8-150W is a fully managed, high-performance, PoE+ Gigabit switch. It delivers powerful performance and intelligent switching with its 10 independent switching ports. A DC input option is included for flexibility.
Quick Specs

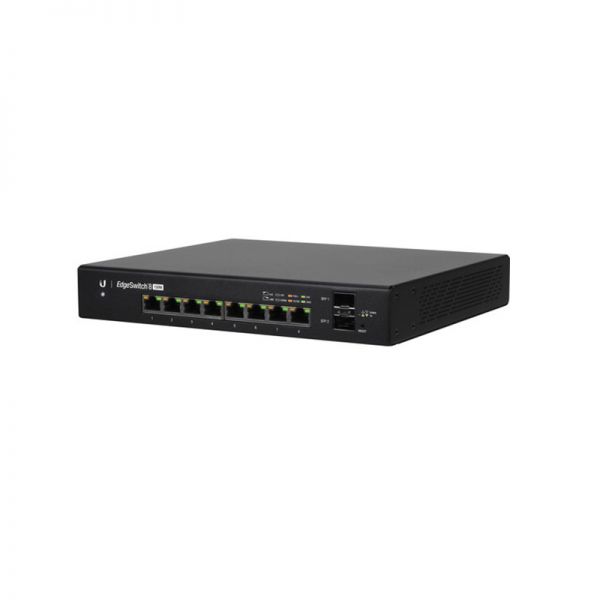

Figure 1 shows the appearance of ES-8-150W.
Table 1 shows the Quick Specs.
|
Product Code |
ES-8-150W |
|
Dimensions |
204 x 43 x 235 mm |
|
Total Non-Blocking Line Rate |
10 Gbps |
|
Max. Power Consumption |
20W (Excludes PoE Output) |
|
Power Supply |
Internal AC/DC 150W |
Product Details
Figure 2 shows the front panel of ES-8-150W.
|
¢Ù? ? |
8 PoE Gigabit RJ45 Ports |
|
¢Ú |
SFP Ports |
Figure 3 shows the back panel of ES-8-150W.
ES-8-150W provides these features:
Gigabit Connectivity
The compact EdgeSwitch features a versatile port configuration: eight Gigabit Ethernet ports that support PoE+ and two SFP ports for fiber connectivity. It can be placed on a desktop or mounted on a wall.
Convenient PoE+ Support
Sharing a total of 150W, eight Gigabit Ethernet ports offer auto-sensing IEEE 802.3af/at PoE/PoE+ or 24V passive PoE to simplify your infrastructure.
Optical Fiber Backhaul
The EdgeSwitch provides fiber connectivity options for your growing networks. Two SFP ports provide uplinks of up to 1 Gbps.
Powerful Performance
The EdgeSwitch delivers robust switching performance with its total, non-blocking throughput of up to 10 Gbps.
Switching Capacity
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Compare to Similar Items
Table 2 shows the comparison of ES-8-150W.
|
Module |
ES-8-150W |
ES-24-250W |
|
Switching Capacity |
20Gbps |
52Gbps |
|
Max consumption (without PoE) |
20W |
30W |
|
Power input |
100-240VAC/54VDC |
100-240VAC |
|
Max consumption (include PoE) |
150W |
250W/500W |
|
Max PoE Wattage Per Port |
17W(24V) / 34.2W(54V) |
17W(24V) / 34.2W(54V) |
Get?More?Information
Do you have any?question about?the?ES-8-150W
Contact us – Email Live Chat or [email protected].
ES-8-150W Datasheet
ES-8-150W Specification |
|
|
Dimensions |
204 x 43 x 235 mm |
|
Total Non-Blocking Line Rate |
10 Gbps |
|
Max. Power Consumption |
20W (Excludes PoE Output) |
|
Power Method |
|
|
AC |
AC/DC Integrated PSU, Universal Input |
|
DC |
DC External, (Self-Correcting Polarity Protection) Terminal Block Input |
|
Power Supply |
Internal AC/DC 150W |
|
Operating Voltage |
|
|
AC |
100 to 240VAC, 50-60 Hz |
|
DC |
42 to 56VDC |
|
LEDs |
|
|
System |
Status |
|
RJ45 Data Ports |
PoE; Link/Speed/Activity |
|
SFP Data Ports |
Link/Speed/Activity |
|
Networking Interfaces |
(8) 10/100/1000 Mbps RJ45 Ports |
|
Management Interface |
Ethernet In-Band, UART Console Out-of-Band |
|
PoE Interfaces |
(8) IEEE 802.3at/af 2-Pair (+1, 2; -3, 6) |
|
ESD/EMP Protection |
¡À 24kV Air, ¡À 24kV Contact |
|
Operating Temperature |
|
|
Internal AC/DC @ 150W |
-25 to 45¡ã C (-13 to 113¡ã F) |
|
Internal AC/DC @ 100W |
-25 to 55¡ã C (-13 to 131¡ã F) |
|
External DC |
-25 to 60¡ã C (-13 to 140¡ã F) |
|
Operating Humidity |
5 to 95% Noncondensing |
