Product Model: ES-24-Lite
Retail Price: US$242.00
Email Us To Get Special Price Today: [email protected]
Layer 2/3 switch with (24) Gigabit RJ45 ports, (2) SFP ports, and a 25W power supply. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Quick Specs

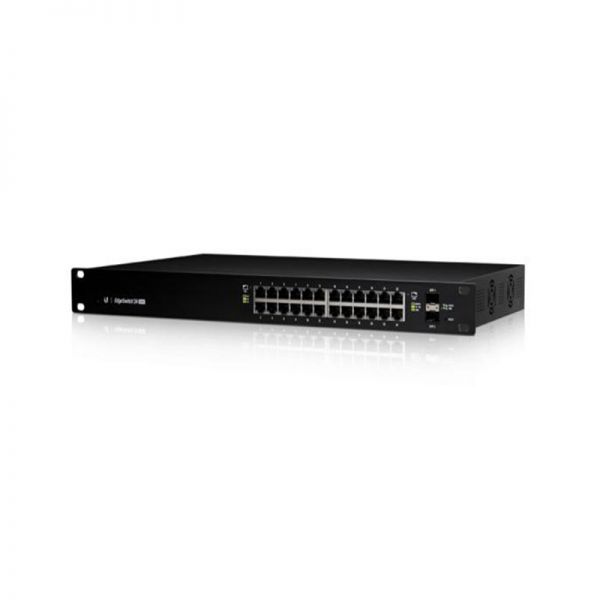

Figure 1 shows the appearance of ES-24-Lite.
Table 1 shows the Quick Specs.
|
Product Code |
ES-24-Lite |
|
Power Supply |
AC/DC, Internal, 25W DC |
|
Dimensions |
443 x 43 x 221 mm |
|
Operating Temperature |
-5 to 40° C (23 to 104° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Max. AC Power Consumption |
25W |
Product Details
Figure 2 shows the front panel of ES-24-Lite.
Figure 3 shows the back panel of ES-24-Lite.
ES-24-Lite provides these features:
- ● (24) Gigabit RJ45 Ports
- ● (2) SFP Ports
- ● Serial Console Port
- ● Non-Blocking Throughput: 26 Gbps
- ● Switching Capacity: 52 Gbps
- ● Forwarding Rate: 38.69 Mpps
- ● Maximum Power Consumption: 25W
- ● Rack- or Wall-Mountable
- ● DC Input Option (Redundant or Stand-Alone)
Compare to Similar Items
Table 2 shows the comparison of ES-24-Lite.
|
Module |
ES-24-Lite |
USW-Pro-24-POE |
|
Power Supply |
AC/DC, Internal, 25W DC |
AC/DC, Internal, 450W |
|
Dimensions |
443 x 43 x 221 mm |
442.4 x 285.4 x 43.7 mm |
|
Operating Temperature |
-5 to 40° C (23 to 104° F) |
-5 to 40° C (23 to 104° F) |
|
Operating Humidity |
5 to 95% Noncondensing |
10 to 90% Noncondensing |
|
Max. AC Power Consumption |
25W |
50W(Excluding PoE Output) |
Get?More?Information
Do you have any?question about?the ES-24-Lite
Contact us – Email Live Chat or [email protected].
ES-24-Lite Datasheet
ES-24-Lite Specification |
|
|
Dimensions |
443 x 43 x 221 mm |
|
Total Non-Blocking Throughput |
26 Gbps |
|
Switching Capacity |
52 Gbps |
|
Forwarding Rate |
38.69 Mpps |
|
Max. AC Power Consumption |
25W |
|
Power Method |
|
|
AC |
100-240VAC/50-60 Hz, Universal Input |
|
Power Supply |
AC/DC, Internal, 25W DC |
|
LEDs Per Port |
|
|
Serial Console Port |
N/A |
|
RJ45 Data Ports |
Speed/Link/Activity |
|
SFP+/SFP Data Ports |
Speed/Link/Activity |
|
Networking Interfaces |
(24) 10/100/1000 Mbps RJ45 Ethernet Ports |
|
Management Interface |
(1) RJ45 Serial Port, Ethernet In/Out Band |
|
Certifications |
CE, FCC, IC |
|
Rackmount |
Yes, 1U High |
|
ESD/EMP Protection |
Air: ¡À24 kV, Contact: ¡À24 kV |
|
Operating Temperature |
-5 to 40¡ã C (23 to 104¡ã F) |
|
Operating Humidity |
5 to 95% Noncondensing |
|
Shock and Vibration |
ETSI300-019-1.4 Standard |
