Product Model: ES-24-250W
Retail Price: US$553.00
Email Us To Get Special Price Today: [email protected]
The EdgeSwitch ES-24-250W is 24-Port, Managed PoE+ Gigabit switch with 250W non-blocking throughput switching performance, Gigabit Ethernet RJ45 and SFP+SFP Ports and Auto-Sensing IEEE 802.3af/at PoE. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides layer-3 routing capabilities.
Quick Specs

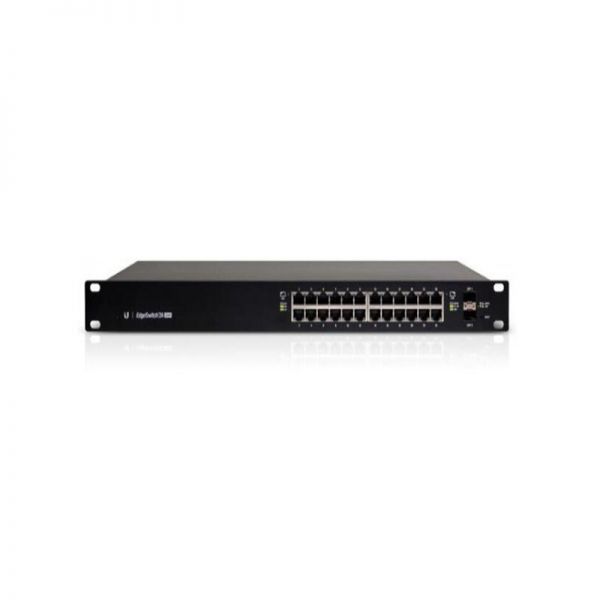

Figure 1 shows the appearance of ES-24-250W.
Table 1 shows the Quick Specs.
|
Product Model |
ES-24-250W |
|
Total Non-Blocking Throughput |
26 Gbps |
|
Switching Capacity |
52 Gbps |
|
Forwarding Rate |
38.69 Mpps |
|
Max PoE+ Wattage per Port by PSE |
34.2W |
|
Max. Passive PoE Wattage per Port |
17W |
|
Dimensions |
485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24″) |
Product Details
Figure 2 shows the front panel of ES-24-250W.
Figure 3 shows the back panel of ES-24-250W.
ES-24-250W provides these features:
- ● (24) Gigabit RJ45 Ports
- ● (2) SFP Ports
- ● Serial Console Port
- ● Non-Blocking Throughput: 26 Gbps
- ● Switching Capacity: 52 Gbps
- ● Forwarding Rate: 38.69 Mpps
- ● Maximum Power Consumption: 250W
- ● Supports POE+ IEEE 802.3at/af and 24V Passive PoE
- ● Rackmountable
Compare to Similar Items
Table 2 shows the comparison of ES-24-250W.
|
Module |
ES-24-250W |
ES-16-150W |
|
Total Non-Blocking Throughput |
26 Gbps |
18 Gbps |
|
Gigabit RJ45 Ports |
24 |
16 |
|
SFP+ Ports |
N/A |
N/A |
|
SFP Ports |
2 |
2 |
|
Max. Power Consumption |
250W |
150W |
Get More Information
Do you have any question about the ES-24-250W
Contact us now via Live Chat or [email protected].
ES-24-250W Datasheet
ES-24-250W specification |
||
|
Dimensions |
485 x 43.7 x 285.4 mm (19.09 x 1.72 x 11.24″) |
|
|
Total Non-Blocking Throughput |
26 Gbps |
|
|
Switching Capacity |
52 Gbps |
|
|
Forwarding Rate |
38.69 Mpps |
|
|
Max. Power Consumption |
Includes PoE Output |
Excludes PoE Out put |
|
250W |
30W |
|
|
Power Method |
100-240VAC/50-60 Hz, Universal Input |
|
|
Power Supply |
AC/DC, Internal, 250W DC |
|
|
LEDs Per Port |
RJ45 Data Ports |
|
|
PoE, Speed/Link/Activity |
||
|
Networking Interfaces
|
(24) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1 Gbps SFP Ethernet Ports |
|
|
Management Interface |
(1) RJ45 Serial Port, Ethernet In/Out Band |
|
|
Rackmount |
Yes, 1U High |
|
|
ESD/EMP Protection |
Air: ±24 kV, Contact: ±24 kV |
|
|
Operating Temperature |
-5 to 40° C (23 to 104° F) |
|
|
Operating Humidity |
5 to 95% Noncondensing |
|
|
PoE Interfaces |
POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 24VDC Passive PoE (Pins 4, 5+; 7, 😎 |
|
|
Max PoE+ Wattage per Port by PSE |
34.2W |
|
|
Voltage Range 802.3at Mode |
50–57V |
|
|
Max. Passive PoE Wattage per Port |
17W |
|
|
24V Passive PoE Voltage Range |
20-27V |
|
