Product Model: UBNT ES-16XP
Retail Price: US$455.00
Email Us To Get Special Price Today: [email protected]
EdgeSwitch XP delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE.
Quick Specs

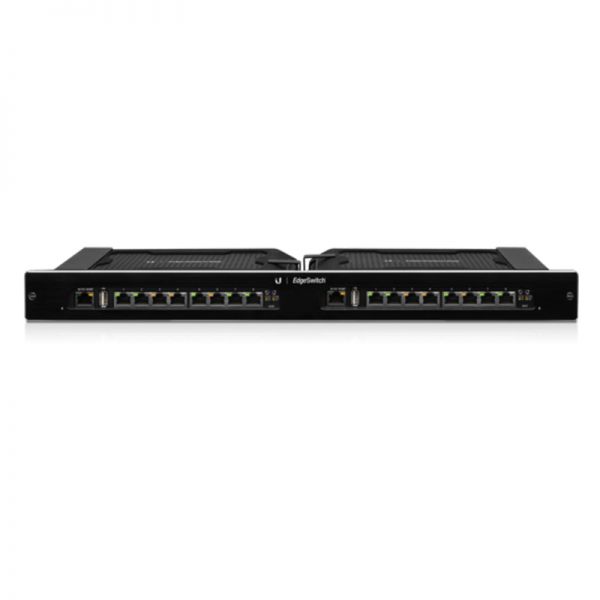

Figure 1 shows the appearance of ES-16XP.
Table 1 shows the Quick Specs.
|
Product Code |
ES-16XP |
|
Power Input |
100-240VAC |
|
Max. Power Consumption |
150W |
|
PoE Out Voltage Range |
45-48 VDC / 22-24VDC |
|
Operating Humidity |
90% Noncondensing |
|
Operating Temperature |
-25 to 55° C |
|
Dimensions |
480 x 44.5 x 186 mm |
Product Details
Figure 2 shows the front panel of ES-16XP.
ES-16XP provides these features:
- ● 16 Gigabit PoE Ports
- ● 24V/48V Configurable Passive PoE
- ● 300 W Power
- ● EdgeSwitch XP Configuration Interface
- ● 1U Rack-Mount Form Factor
Compare to Similar Items
Table 2 shows the comparison of ES-16XP.
|
Module |
ES-16XP |
USW-Pro-24-POE |
|
Power Input |
100-240VAC |
100-240VAC/50-60 Hz |
|
PoE Out Voltage Range |
45-48 VDC / 22-24VDC |
100 to 240VAC |
|
Operating Humidity |
90% Noncondensing |
-5 to 40° C (23 to 104° F) |
|
Operating Temperature |
-25 to 55° C |
10 to 90% Noncondensing |
|
Dimensions |
480 x 44.5 x 186 mm |
442.4 x 285.4 x 43.7 mm |
Get?More?Information
Do you have any?question about?the ES-16XP
Contact us – Email Live Chat or [email protected].
UBNT ES-16XP Datasheet
ES-16XP specification |
|
|
EdgeSwitch 16XP |
|
|
Dimensions |
480 x 44.5 x 186 mm |
|
Hardware Configuration |
(2) 8-Port EdgeSwitch 8XP Devices |
|
Mounting |
19″ 1U Rack-Mount |
|
EdgeSwitch 8XP |
|
|
Power Input |
100-240VAC |
|
Max. Power Consumption |
150W |
|
PoE Out Voltage Range |
45-48 VDC / 22-24VDC |
|
Max. PoE Wattage Per Data Port |
11.5W (24V) |
|
ESD Rating |
¡À24 kV Air/Contact |
|
PoE Method |
Passive |
|
Button |
Reset |
|
USB Port |
2.0 Type A (Reserved for Future Use) |
|
Processor |
MIPS 24K, 400 MHz |
|
System Memory |
64 MB |
|
Code Storage |
8 MB |
|
PoE Configurable Per Port |
|
|
Management Port |
N/A |
|
Data Ports |
Off/24V/48V |
|
LEDs Per Port |
|
|
Management Port |
Power/Link |
|
Data Ports |
PoE, Speed/Link/Activity |
|
Networking Interfaces |
|
|
Management Port |
(1) 10/100 Ethernet Port |
|
Data Ports |
(8) 10/100/1000 Ethernet Ports |
|
Operating Humidity |
90% Noncondensing |
|
Operating Temperature |
-25 to 55¡ã C |
