ES-16-XG – Ubiquiti Enterprise Switches Series Price & Datasheet

Product Model: ES-16-XG

Retail Price: US$783.00

Email Us To Get Special Price Today:  [email protected]

The ES-16-XG is a fully managed, carrier-class 10 Gigabit aggregation switch with twelve 10G SFP+ ports and four 10G RJ45 ports. The ES-16-XG provides up to 160 Gbps total, non-blocking line rate for concurrent, full-capacity support of up to sixteen 10G switches and devices.

Quick Specs

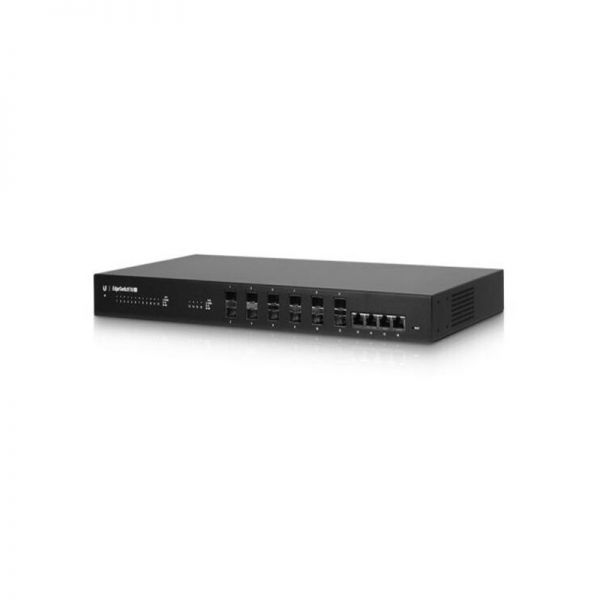

Figure 1 shows the appearance of ES-16-XG.

Table 1 shows the Quick Specs.

Product Model	ES-16-XG
Total Non-Blocking Line Rate	160 Gbps
Max. DC Power Consumption	36W (excludes SFP/SFP+ module)
Power Supply	AC/DC, Internal, 56W DC
Supported Voltage Range	100 to 240VAC 25 to 16VDC
Dimensions	443 x 221 x 43 mm (17.44 x 8.70 x 1.69″)

Product Details

Figure 2 shows the front panel of ES-16-XG.

Figure 3 shows the back panel of ES-16-XG.

ES-16-XG provides these features:

Advanced Switching Technologies

Build and expand your network the with Ubiquiti Networks EdgeSwitch XG, part of the EdgeMAX line of products. The EdgeSwitch XG is a fully managed, 10G fiber switch that enhances network capacity and provides high-bandwidth services to growing networks.

The EdgeSwitch XG offers an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.

Switching Performance

The EdgeSwitch XG offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

For its total, non-blocking throughput, the EdgeSwitch XG supports up to 160 Gbps.

10G High-Capacity Links

The EdgeSwitch XG offers maximum performance and low latency as an aggregation switch.

For fiber connectivity, it features 12 SFP+ ports. For copper connectivity, the EdgeSwitch XG offers four RJ-45 ports that support 10GBASE-T, the standard for 10 Gbps connections using Cat6 (or higher) cabling and RJ-45 connectors.

Comprehensive User Interface

Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface.

For advanced users, an industry-standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.

Powerful Functionality

The EdgeSwitch XG uses a sophisticated operating system that provides basic switching features and a variety of advanced features including:

• ● MSTP/RSTP/STP
• ● VLAN, Private VLAN, Voice VLAN
• ● Link Aggregation
• ● DHCP Snooping, IGMP Snooping
• ● TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• ● DiffServ, CoS
• ● Static Routing, Policy-Based Routing
• ● DHCP Server Functionality

Compare to Similar Items

Table 2 shows the comparison of ES-16-XG.

Module	ES-16-XG	ES-24-Lite
Max. DC Power Consumption	36W (excludes SFP/SFP+ module)	25W
Power Supply	AC/DC, Internal, 56W DC	AC/DC, Internal, 25W DC
Dimensions	443 x 221 x 43 mm (17.44 x 8.70 x 1.69″)	443 x 43 x 221 mm (17.44 x 1.69 x 8.70″)
Operating Temperature	-5 to 40° C (23 to 104° F)	-5 to 40° C (23 to 104° F)
Operating Humidity	5 to 95% Noncondensing	5 to 95% Noncondensing
