Product Model: DS-7316HUHI-K4
Retail Price: US$472.00
Email Us To Get Special Price Today: [email protected]

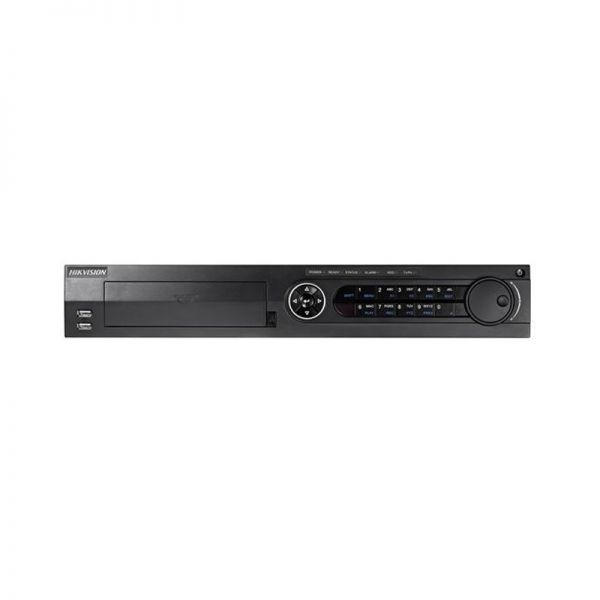

DS-7316HUHI-K4 is the Hikvision Turbo HD DVR.
Quick Spec
Table 1 shows the quick spec.
|
Model |
DS-7316HUHI-K4 |
|
Video/Audio Input |
|
|
Audio Input |
4-ch |
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Analog and HD-TVI video input |
16-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
|
Supported camera types |
Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Support AHD input: 5MP,4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz Support CVI input: 4 MP, 720p25, 720p30, 1080p25, 1080p30 support CVBS input |
|
Audio Compression |
G.711u |
|
Audio Input Interface |
4-ch, RCA (2.0 Vp-p, 1 KΩ) |
|
Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
|
Video/Audio Output |
|
|
HDMI2 Output |
1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz |
|
HDMI/VGA Output |
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
|
Recording resolution |
8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
|
Frame Rate |
Main stream: 8 MP@8fps; 5 MP@12fps; 4 MP@ 15fps; 3 MP@18fps; 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
|
Video Bit Rate |
32 Kbps-10 Mbps |
|
Stream Type |
Video/Video & Audio |
|
Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1 kΩ) (Independent) |
|
Audio Output |
2-ch, RCA (Linear, 1 kΩ) |
Product Details
Hikvision DS-7316HUHI-K4 provides these key features:
• Support H.265 Pro+/H.265 Pro/H.265 video compression
• Support HDTVI/AHD/CVI/CVBS/IP video input.
• Max 8/16/32 IP cameras input (up to 8 MP).
• Max 800 m for 1080p and 1200 m for 720p HDTVI signal.
• Up to 10 TB capacity per HDD.
• Support POS triggered recording and POS information overlay
Figure 1 shows the physical interfaces of DS-7316HUHI-K4.
Note:
|
① |
AUDIO IN, RCA Connector |
⑨ |
HDMI Interface |
|
② |
CVBS AUDIO OUT and VGA AUDIO OUT |
⑩ |
VGA Interface |
|
③ |
LINE IN |
⑪ |
LAN1 and LAN2 Network Interfaces |
|
④ |
VIDEO OUT |
⑫ |
RS-485 Serial Interface, Keyboard Interface, ALARM IN and ALARM OUT |
|
⑤ |
RS-232 Serial Interface |
⑬ |
GND |
|
⑥ |
eSATA Interface |
⑭ |
100 to 240 VAC Power Input |
|
⑦ |
VIDEO IN |
⑮ |
Power Switch |
|
⑧ |
USB Interface |
|
|
Get More Information
Do you have any question about the DS-7316HUHI-K4
Contact us now via Live Chat or [email protected].
DS-7316HUHI-K4 Datasheet
DS-7316HUHI-K4 Specification |
|
|
Video/Audio Input |
|
|
Audio Input |
4-ch |
|
Video Compression |
H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
|
Analog and HD-TVI video input |
16-ch,BNC interface (1.0Vp-p, 75 Ω)connection |
|
Supported camera types |
Support HDTVI input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Support AHD input: 5MP,4MP,1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz Support CVI input: 4 MP, 720p25, 720p30, 1080p25, 1080p30 support CVBS input |
|
Audio Compression |
G.711u |
|
Audio Input Interface |
4-ch, RCA (2.0 Vp-p, 1 KΩ) |
|
Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using audio input) |
|
Video/Audio Output |
|
|
HDMI2 Output |
1-ch,4K(3840 × 2160)/30Hz,2K(2560 × 1440)/60Hz,1920×1080/60Hz,1280 × 1024/60Hz,1280 × 720/60Hz, 1024 × 768/60Hz |
|
HDMI/VGA Output |
1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
|
Recording resolution |
8 MP/5 MP/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF |
|
Frame Rate |
Main stream: 8 MP@8fps; 5 MP@12fps; 4 MP@ 15fps; 3 MP@18fps; 1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30fps (N) |
|
Video Bit Rate |
32 Kbps-10 Mbps |
|
Stream Type |
Video/Video & Audio |
|
Two-way Audio |
1-ch, RCA (2.0 Vp-p, 1 kΩ) (independent) |
|
Audio Output |
2-ch, RCA (Linear, 1 kΩ) |
|
Dual Stream |
Support |
|
Playback Resolution |
8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF |
|
Synchronous Playback |
16-ch |
|
Network management |
|
|
Remote connections |
128 |
|
Network protocols |
TCP/IP, PPPoE, DHCP, Hik-connect Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, SNMP |
|
Hard Disk Driver |
|
|
Interface Type |
4 SATA Interfaces |
|
Capacity |
Up to 10 TB capacity for each disk |
|
External Interface |
|
|
Network Interface |
2; 10M / 100M / 1000M self-adaptive Ethernet interfaces |
|
USB Interface |
2 USB 2.0 Interface on the front panel& 1 USB 3.0 Interface on the rear panel |
|
Serial Interface |
1 RS-232 serial interface 1 RS-485 serial interface, full-duplex,1 RS-485 keyboard interface |
|
Alarm Input |
16-ch |
|
Alarm Output |
4-ch |
|
General |
|
|
Power Supply |
100 to 240 VAC |
|
Consumption |
≤ 65W(without hard disks) |
|
Working Temperature |
-10 ℃ to +55 ℃ (+14 ℉ to +131 ℉) |
|
Working Humidity |
10% to 90% |
|
Dimensions |
445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch) |
