Product Model: DQS-5000-32S/AF
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]
D-Link’s DQS-5000-32S/AF Switch is a compact, high performance switch that features full line-rate 10-Gigabit Ethernet switching and low latency at Layer 2 or Layer 3. With its open architecture and high port density, this switch is ideal in a data center for Top-of-Rack (ToR) applications or as part of a 10GbE/40GbE leaf-spine architecture.
Quick Specs
Table 1 shows the Quick Specs
|
SKU |
DQS-5000-32S/AF |
|
40G SFP+ ports |
32 |
|
USB 2.0 port |
1 |
|
mini-USB port |
1 |
|
RJ-45 Management port |
1 |
|
Switch Capacity |
2.56 Tbps |
|
Max. Packet Forwarding Rate |
1,428 Mpps |
|
Maximum Heat Dissipation |
1385.27 BTU/hr |
|
Maximum Power Consumption |
406 W |
|
MTBF |
85937hours |
Product Details
D-Link’s DQS-5000-32S/AF shows the following features:
¢Ù32 x 40G QSFP+ ports
¢ÚWire-speed, ultra-low latency switching
¢ÛSupports Open Network Install Environment (ONIE) for zero-touch installation of network OS
¢ÜSDN-enabled with OpenFlow 1.3 support
¢ÝDual AC/DC hot-swappable power supply modules for 1+1 redundancy and load sharing
¢ÞModular n+1 hot-swappable fan design

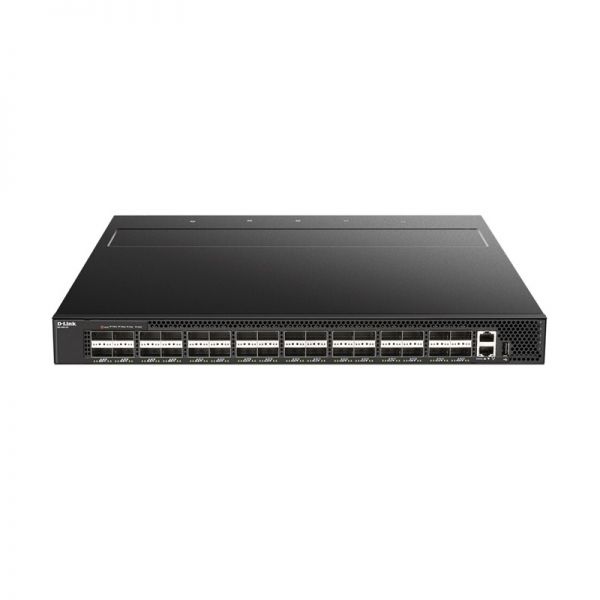

Figure 1 shows the front panel of DQS-5000-32S/AF.
Note:
|
¢Ù??? ? |
40G QSEP+ Ports |
|
¢Ú??? ? |
Management Port |
|
¢Û |
USB 2.0 Type A Port |
|
¢Ü |
Console Port |
Figure 2 shows the back panel of DQS-5000-32S/AF.
Note:
|
¢Ù |
Power Supply Slot 1/2 |
|
¢Ú |
PSU Status LED |
|
¢Û |
Fan Module Slots(x4) |
|
¢Ü |
Fan Status LED |
|
¢Ý |
AIR Flow Indicator |
|
¢Þ |
Grounding Node |
Compare to Similar Items
Table 2 shows the comparison.
|
Product Name |
DQS-5000-32S/AF |
DXS-5000-54S/AF |
|
Interface |
32 x 40G QSFP+ ports 1 x USB 2.0 port 1 x RJ-45 port 1 x RJ-45 Management port |
48 x 10G SFP+ ports 6 x 40G QSFP+ ports 1 x USB 2.0 port 1 x mini-USB port 1 x RJ-45 Management port |
|
Switch Capacity |
2.56 Tbps |
1.44 Tbps |
|
Max. Packet Forwarding Rate |
1,428 Mpps |
1,071 Mpps |
|
Maximum Heat Dissipation |
1,385.27 BTU/hr |
1,006.58 BTU/hr |
|
Maximum Power Consumption |
406 W |
295 W |
|
MTBF |
85,937 hours |
205,000 hours |
Before Purchasing
Do you have any question about the DQS-5000-32S/AF
Contact us – Email Live Chat or [email protected].
DQS-5000-32S/AF Datasheet
DQS-5000-32S/AF Specification |
|
|
40G QSFP+ ports |
32 |
|
USB 2.0 port |
1 |
|
RJ-45 port |
1 |
|
RJ-45 Management port |
1 |
|
Switch Capacity |
2.56 Tbps |
|
Max. Packet Forwarding Rate |
1,428 Mpps |
|
Fans |
4 x fans |
|
Acoustics |
Max: 69.8 dB Min: 59.5 dB |
|
Dimensions (W x D x H) |
440 x 406 x 44 mm (17.32 x 16 x 1.73 inch) |
|
Operating Temperature |
0 to 45 ºC (32 to 113 ºF) |
|
Packet Buffer Memory |
12 MB |
|
MAC Address Table |
288K |
|
Operating Humidity |
5% to 95% RH, non-condensing |
|
Max. Forwarding Rate |
1,428 Mpps (1.428 Bpps) |
|
OOB Management Port |
1 x 10/100/1000BASE-T RJ-45 port |
|
Console Port |
1 x RJ-45 console port |
|
Power Input |
1+1 redundant power supply design Input: 100 to 240 V AC, 50/60 Hz |
|
Heat Dissipation (Max.) |
1385.27 BTU/hr |
|
Maximum Heat Dissipation |
1,385.27 BTU/hr |
|
Maximum Power Consumption |
406 W |
|
MTBF |
85,937 hours |
