Product Model: DQS-5000-32Q28/AF
Retail Price: Price expired
Email Us To Get Special Price Today: [email protected]

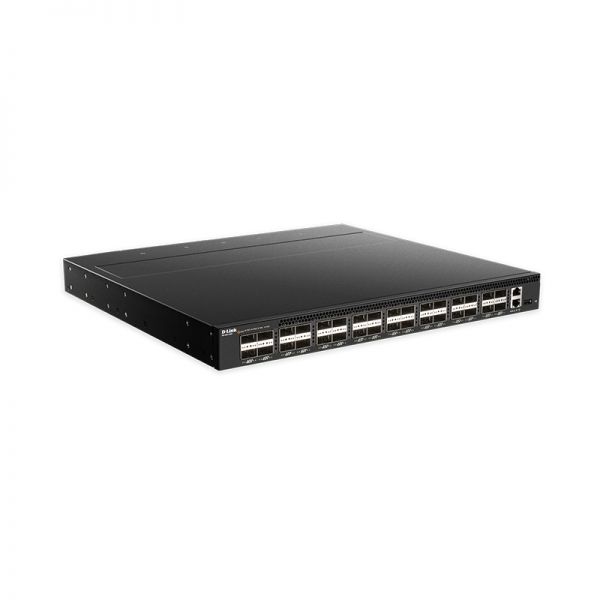

D-Link’s DQS-5000-32Q28/AF Switch is a compact, high performance switch that features full line-rate 10-Gigabit Ethernet switching and low latency at Layer 2 or Layer 3. It is designed to be deployed as Top-ofRack (ToR) or leaf-spine switches in data center applications.
Quick Specs
Table 1 shows the Quick Specs
|
SKU |
DQS-5000-32Q28/AF |
|
100G QSFP28 ports |
32 |
|
USB 2.0 port |
1 |
|
RJ-45 port |
1 |
|
RJ-45 Management port |
1 |
|
Switch Capacity |
6.4 Tbps |
|
Max. Packet Forwarding Rate |
2,980 Mpps |
|
Max. Forwarding Rate |
2,980 Mpps (2.980 Bpps) |
|
Packet Buffer Memory |
16 MB |
|
MAC Address Table |
40K |
|
Power Input |
1+1 redundant power supply design Input: 100 to 240 V AC, 50/60 Hz |
Product Details
D-Link’s DQS-5000-32Q28/AF provides the following features:
¢Ù32 x 100G QSFP28 ports
¢ÚWire-speed, ultra-low latency switching
¢ÛSupports Open Network Install Environment (ONIE) for zero-touch installation of network OS
¢ÜSDN-enabled with OpenFlow 1.3 support
¢ÝDual AC/DC hot-swappable power supply modules for 1+1 redundancy and load sharing
¢ÞModular n+1 hot-swappable fan design
Figure 1 shows the front panel of DQS-5000-32Q28/AF.
Note:
|
¢Ù??? ? |
100G SEP+ Ports |
|
¢Ú??? ? |
Management Port |
|
¢Û |
USB 2.0 Type A Port |
|
¢Ü |
Console Port |
Figure 2 shows the back panel of DQS-5000-32Q28/AF.
Note:
|
¢Ù |
Power Supply Slot 1/2 |
|
¢Ú |
PSU Status LED |
|
¢Û |
Fan Module Slots(x4) |
|
¢Ü |
Fan Status LED |
|
¢Ý |
AIR Flow Indicator |
|
¢Þ |
Grounding Node |
Compare to Similar Items
Table 2 shows the comparison.
|
Product Name |
DQS-5000-32Q28/AF |
DQS-5000-54SQ28/AF |
|
Interface |
32 x 100G QSFP28 ports 1 x USB 2.0 port 1 x RJ-45 port 1 x RJ-45 Management port |
48 x 25G SFP28 ports 6 x 100G QSFP28 ports 1 x USB 2.0 port 1 x mini-USB port 1 x RJ-45 Management port |
|
Switch Capacity |
6.4 Tbps |
3.6 Tbps |
|
Max.Packet Forwarding Rate |
2,980 Mpps |
2,380 Mpps |
|
Maximum Heat Dissipation |
1,433.04 BTU/hr |
1,347.74 BTU/hr |
|
Maximum Power Consumption |
420 W |
395 W |
|
MTBF |
206,685 hours |
205,500 hours |
Before Purchasing
Do you have any question about the DQS-5000-32Q28/AF
Contact us – Email Live Chat or [email protected].
DQS-5000-32Q28/AF Datasheet
DQS-5000-32Q28/AF Specification |
|
|
100G QSFP28 ports |
32 |
|
USB 2.0 port |
1 |
|
RJ-45 port |
1 |
|
RJ-45 Management port |
1 |
|
Switch Capacity |
6.4 Tbps |
|
Max. Packet Forwarding Rate |
2,980 Mpps |
|
Max. Forwarding Rate |
2,980 Mpps (2.980 Bpps) |
|
Packet Buffer Memory |
16 MB |
|
MAC Address Table |
40K |
|
Power Input |
1+1 redundant power supply design Input: 100 to 240 V AC, 50/60 Hz |
|
Operating Temperature |
0 to 45 ºC (32 to 113 ºF) |
|
Operating Humidity |
5% to 95% RH, non-condensing |
|
Dimensions (W x D x H) |
440 x 406 x 44 mm (17.32 x 16 x 1.73 inch) |
|
Acoustics |
Max: 71.8 dB Min: 57.2 dB |
|
Fans |
4 x fans |
|
Heat Dissipation (Max.) |
1433.04 BTU/hr |
|
Console Port |
1 x RJ-45 console port |
|
Switching Capacity |
6.4 Tbps |
|
OOB Management Port |
1 x 10/100/1000BASE-T RJ-45 port |
|
Maximum Heat Dissipation |
1,433.04 BTU/hr |
|
Maximum Power Consumption |
420 W |
|
MTBF |
206,685 hours |
