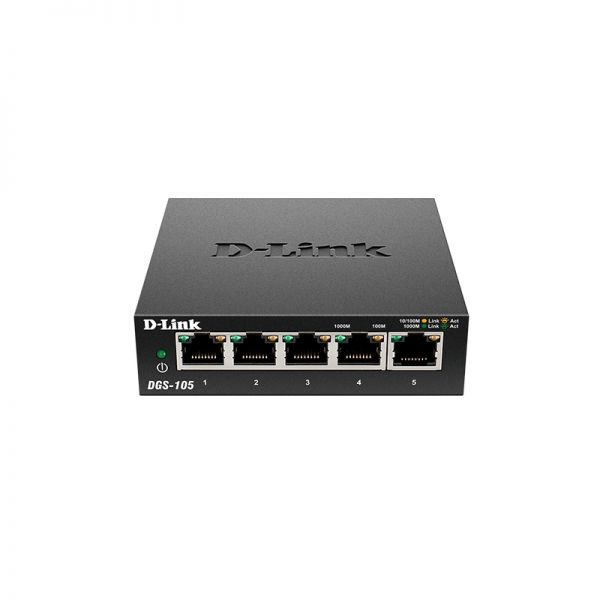

DGS-105-CN – D-Link Gigabit Unmanaged Switches Price & Product Datasheet

Product Model: DGS-105-CN

Retail Price: US$34.00

Email Us To Get Special Price Today: [email protected]

The 5-Port DGS-105-CN Gigabit Unmanaged Switches are ideally suited for Small Office Home Office (SOHO) Small Medium Business (SMB) and Small Medium Enterprise (SME) environments. With a durable design, silent operation, and plug-and-play functionality, the DGS-105 switches can be easily set up and be placed in almost any location where network connectivity is required. Support for IEEE 802.3az Energy-Efficient Ethernet (EEE), Layer 2 Quality of Service (QoS), and Gigabit Ethernet connection speeds provide advanced features in a compact package.

Quick Specs

Table 1 shows the Quick Specs.

SKU	DGS-105-CN
1000Base-T Interface	5
Auto MDI/MDIX	Yes
Switching Capacity	10 Gbps
Max. Packet Forwarding Rate	7.44 Mpps
Dimension	100 x 98 x 28 mm
Power Input	AC??100 ~ 240 V

Product Details

Here are the highlights of DGS-105-CN.

?? High Speed Networking

Five Gigabit Ethernet ports allow fast file transfers and maximize network bandwidth

?? Quality of Service

Layer 2 Quality of Service (QoS) provides traffic prioritization on the local network ensuringsmooth VoIP calls and responsive applications

?? Built to Last

Rugged metal housing and Limited Lifetime

Warranty

?? Environmentally Friendly

IEEE 802.3az Energy-Efficient-Ethernet (EEE) reduces power consumption when ports are not in use, conserving energy and lowering costs

There are some features of DGS-105.

?? Fast Connectivity

1. Five (DGS-105) Gigabit LAN ports for high-speed wired connections

2. Plug-and-play installation for convenience

3. Cable diagnostics notifies users of cable conditionsthrough diagnostic LEDs

?? Multicast Features

L2 multicast functions including IGMP snooping optimize multicast data streams for bandwidth intense applications like IPTV

?? Green Ethernet Features

1. Reduces power on a port when no link is detected

2. Adjusts power on a port by detecting the length ofthe connected cable

Eco-Friendly Design

1. Energy Star compliant

2. RoHS compliant

Compare to Similar Items

Table 2 shows the comparison.

SKU	DGS-105-CN	DGS-108	DES-105	DES-108
Port Type	Gigabit	Gigabit	Fast Ethernet	Fast Ethernet
Number of Ports	5	8	5	8
Form Factor	Desktop	Desktop	Desktop	Desktop
Housing	Metal	Metal	Metal	Metal
Fan	Fanless	Fanless	Fanless	Fanless
Switching Capacity	10 Gbps	16 Gbps	1 Gbps	1.6 Gbps
QoS (802.1p)	Yes	Yes	Yes	Yes
IEEE 802.3az (EEE)	Yes	Yes	Yes	Yes
Power	External	External	External	External
Warranty	Limited Lifetime	Limited Lifetime	Limited Lifetime	Limited Lifetime
