Product Model: DES-1100-24
Retail Price: US$79.00
Email Us To Get Special Price Today: [email protected]

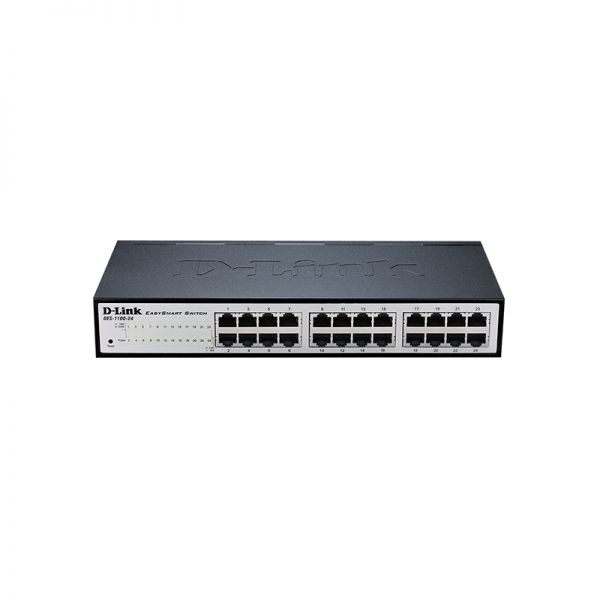

The D-Link DES-1100-24 is a highly efficient smart switch featuring 24 100M electrical ports. This desktop-type smart switch is designed for versatility, allowing installation on a rack and supporting Web management. It provides robust network management functionality for small to medium-sized businesses, making network administration simple and effective.
Quick Spec
| Brand | D-Link |
| Model | DES-1100-24 |
| Ports | 24 100M Electrical Ports |
| Management | Web-based |
| Installation | Desktop or Rack-mountable |
Product Datasheet
- ● 24 fast Ethernet ports with 100Mbps speed.
- ● Web-based management interface for easy configuration.
- ● Can be used as a desktop or installed on a rack for flexible deployment.
- ● Energy-efficient design ensures reduced power consumption.
- ● VLAN support enhances network security and segmentation.
Product Applications
- ● Ideal for small to medium-sized businesses requiring a reliable network switch for daily operations.
- ● Perfect for educational institutions needing a cost-effective, manageable network solution.
- ● Suitable for remote office setups that need an easily deployable and maintainable network switch.
Supported Options
| Rack Mount Kit | RK-123 |
| Power Adapter | PA-101 |
| Ethernet Cable Pack | EC-24P |
Compare to Similar Items
| Model | Differences |
| D-Link DES-105 | 5 ports, unmanaged switch, no rack-mount option |
| D-Link DES-1210-28 | 28 ports, advanced management, PoE support |
| TP-Link TL-SF1024 | 24 ports, unmanaged switch, no web management |
Before Purchasing
For more information about the D-Link DES-1100-24, please contact us through Live Chat or at [email protected]. Check D-Link DES-1100-24 price and DES-1100-24 datasheet, buy D-Link DES-1100 switch with the best price and fast shipping. Free Live Chat support is available.
Specification
DES-1100-24 Datasheet
DES-1100-24 Specification |
|
| Port-based Bandwidtd Control | Yes |
| Two Rate tdree Color Marker (trTCM) | Yes |
| Class of Service (CoS) | Yes |
| Head-of-line (HOL) Blocking Prevention | Yes |
| Store & Forwarding Forwading | Yes |
| Comply witd RoHS 6 | Yes |
| 100Base-TX Interface | 24 |
| Auto MDI/MDIX | Yes |
| 10/100BASE-TX ports | 24 |
| CPU Speed | 50Mhz |
| DRAM Size | 8MB |
| Flash Memory Size | 1MBytes |
| Packet Buffer Size | 1.75Mbits |
| FAN | Fanless |
| Loopback Detection (LBD) | Yes |
| MAC Address Table Size | 8K |
| IGMP Snooping | Yes |
| Max IGMP Snooping Groups | 32 |
| 802.1AX Link Aggregation | Yes |
| 802.3ad Link Aggregation | Yes |
| Max Port Per Link Aggregation Group | 4 |
| Web-based GUI | Yes |
| Port Mirroring | Yes |
| Switch Capacity | 4.8 Gbps |
| Max. Packet Forwarding Rate | 3.57 Mpps |
| Power Input | AC: 100-240V |
| Number of Queue | 2 |
| Strict Priority Queue (SPQ) | Yes |
| Queue Handling | Yes |
| Broadcast/Multicast/Unicast Storm Control | Yes |
| 802.1Q VLAN | Yes |
| Auto Surveillance VLAN | Yes (Surveillance VLAN) |
| VLAN Groups | 32 |
| Port-based VLAN | Yes |
| Dimension | 280 mm x 125 mm x 44mm |
| Operation Temperature | 0-40°C |
| Storage Temperature | -10-70°C |
| Operation Humidity | 10%-95% RH |
| Storage Humidity | 5% ~ 95% RH |
| Operating Altitude | 2000m |
| Maximum Power Consumption | 7.68 W |
| Standby Power Consumption | 2.87Watts |
| Maximum Heat Dissipation | 26.20 BTU/h |
| Acoustic | 0 dBs |
| MTBF | 562,066 hours |
