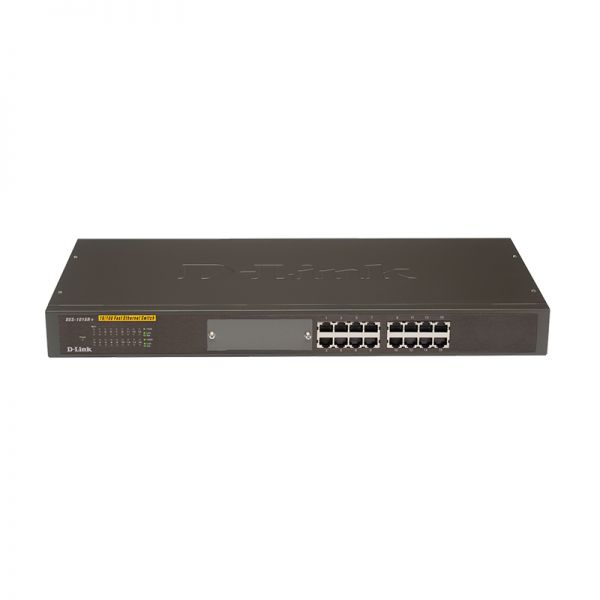

Product Model: DES-1016R
Retail Price: US$46.00
Email Us To Get Special Price Today: [email protected]
DES-1016R switch is designed to enhance workgroup performance while providing a high level of flexibility. Powerful yet easy to use, these devices allow users to simply plug any port to either a 10Mbps or 100Mbps network to multiply bandwidths, boost response time and satisfy heavy load demands.
Quick Specs
Table 1 shows the Quick Specs.
|
SKU |
DES-1016R |
|
100Base-TX Interface |
16 |
|
Auto MDI/MDIX |
Yes |
|
Max. Packet Forwarding Rate |
0.148 Mpps |
|
Dimension |
441 x 207 x 44 mm |
|
Maximum Power Consumption |
39 watts |
|
Packet Buffer Size |
256KB |
|
Power Input |
AC??100 ~ 240 V |
|
MAC Address Table Size |
4K |
Product Details
Here are some highlights of DES-1924R.
1.16 10/100Mbps ports
These ports detect the network speed and auto-negotiate between 100BASE-TX and 10BASE-T, as well as full- and half-duplex.
2.Auto-adjustment of MDI/MDIX Cross Over
All 10/100Mbps ports auto-adjust MDI/MDIX twisted pair cable cross-over, eliminating the need for crossover cables or uplink buttons. You simply plug any port to a server, a workstation or a hub, using the usual straight-through twisted-pair cable.
3.Optional 100Mbps Fibre Ports
An open slot is provided on the front panel to let you install an optional Fast Ethernet fibre module. This module provides 2 100Mbps fibre ports for 2 server connections or switch-to-switch cascading over the reliable fibre cables, which can be up to 2km long.
4.Flow Control Protects Against Data Loss
This function works with flow control supported Fast Ethernet adapters (installed in servers) connected to the switch in dedicated bandwidth configuration. It can also be applied to switch-to-switch cascading.
5.Easy Expansion
As all 10/100Mbps ports support auto-negotiation of MDI/MDIX twisted-pair cable cross-over, you simply connect 2 switches together without having to find a cross-over cable or to make sure the ports are uplink ports. At 200Mbps full-duplex speed, all ports provide a fast switch-to-switch dedicated bandwidth.
Compare to Similar Items
Table 2 shows the comparison.
|
SKU |
DES-1016R |
DES-1024R |
DES-105 |
DES-108 |
|
Port Type |
Gigabit |
Gigabit |
Fast Ethernet |
Fast Ethernet |
|
Number of Ports |
16 |
24 |
5 |
8 |
|
Auto MDI/MDIX |
Yes |
Yes |
Yes |
Metal |
|
Fan |
1 |
1 |
Fanless |
Fanless |
|
Max.Packet Forwarding Rate |
0.148 Mpps |
0.1488 Mpps |
1 Gbps |
1.6 Gbps |
|
IEEE 802.3az (EEE) |
Yes |
Yes |
Yes |
Yes |
|
Power Input |
AC??100 ~ 240 V |
AC??100 ~ 240 V |
AC??100 ~ 240 V |
AC??100 ~ 240 V |
|
Warranty |
Limited Lifetime |
Limited Lifetime |
Limited Lifetime |
Limited Lifetime |
Before Purchasing
Do you have any question about the DES-1016R
Contact us – Email Live Chat or [email protected].
DES-1016R Datasheet
DES-1016R Specification |
|
|
100Base-TX Interface |
16 |
|
Auto MDI/MDIX |
Yes |
|
Max. Packet Forwarding Rate |
0.148 Mpps |
|
Dimension |
441 x 207 x 44 mm |
|
Operation Temperature |
0 ~ 50°C |
|
Storage Temperature |
-30 ~ 60°C |
|
Operation Humidity |
5% – 95% |
|
Maximum Power Consumption |
39 watts |
|
Packet Buffer Size |
256KB |
|
FAN |
1 |
|
Power Input |
AC£º100 ~ 240 V |
|
Energy Efficiency Ethernet (EEE) |
Yes |
|
Power Saving By Link Status |
Yes |
