Product Model: DEM-431XT
Retail Price: US$115.00
Email Us To Get Special Price Today: [email protected]

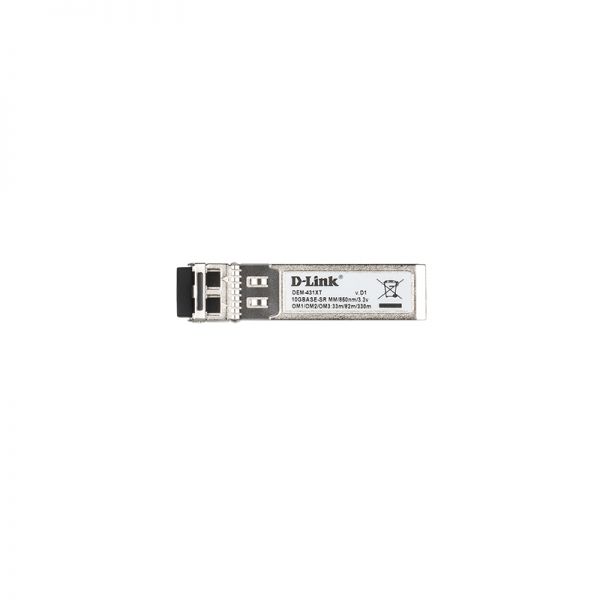

The D-Link DEM-431XT 10G SFP+ optical module is a high-performance, reliable module designed to offer a seamless connection in your network. This multi-mode optical transceiver supports a wavelength of 850nm and is capable of transmitting data over distances of up to 300 meters using an LC connector. Ideal for compact optical interfaces, this module ensures your network operates at optimal speed and efficiency.
Quick Spec
| Brand | D-Link |
| Model | DEM-431XT |
| Type | 10G SFP+ Optical Module |
| Mode | Multi-Mode |
| Maximum Distance | 300 meters |
| Wavelength | 850nm |
| Connector | LC |
Product Datasheet
- ● 10G high-speed data transmission
- ● Supports multi-mode fiber
- ● Compact SFP+ form factor
- ● LC duplex connector interface
- ● 850nm wavelength for enhanced performance
Product Applications
- ● Data centers: Ideal for high-speed data transfers and connections
- ● Enterprise networks: Enhances network performance with 10G speed
- ● Campus networks: Offers reliable and long-distance data transmission
Supported Options
| 10G SFP+ Direct Attach Cable | DEM-CB100S |
| 10G SFP+ Single-Mode Module | DEM-432XT |
| SFP+ to RJ45 Module | DEM-410T |
Compare to Similar Items
| Model | DEM-431XT | DEM-432XT | DEM-410T |
| Type | 10G SFP+ Optical Module | 10G SFP+ Single-Mode Module | SFP+ to RJ45 Module |
| Mode | Multi-Mode | Single-Mode | – |
| Maximum Distance | 300 meters | 10 kilometers | 100 meters |
| Wavelength | 850nm | 1310nm | – |
| Connector | LC | LC | RJ45 |
Before Purchasing
For more information about the D-Link DEM-431XT 10G SFP+ optical module and its pricing, please contact us through Live Chat or email us at [email protected].
Specification
DEM-431XT Datasheet
DEM-431XT Specifications | |
| Brand | D-Link |
| Model | DEM-431XT |
| Product Type | 10G SFP+ optical module |
| Connector Type | LC duplex connector |
| Data Rate | 10 Gbps |
| Mode Type | Multi-mode |
| Maximum Distance | 300 meters |
| Wavelength | 850 nm |
| Form Factor | SFP+ |
| Compatibility | D-Link switches and routers |
| Temperature Range | 0??C to 70??C (32??F to 158??F) |
| Power Consumption | 1W (typical) |
| Input Voltage | 3.3 V |
| Optical Output Power | -6.5 to -1 dBm |
| Receiver Sensitivity | -11.1 dBm |
| EMC Standards | FCC, CE, VCCI |
| Safety Standards | Class 1 Laser Safety |
| RoHS Compliance | Yes |
| MTBF | 1,500,000 hours |
| Dimensions (HxWxD) | 8.5 x 13.4 x 56.5 mm |
| Warranty | Limited Lifetime Warranty |
