Product Model: DEM-310GT
Retail Price: US$89.00
Email Us To Get Special Price Today: [email protected]

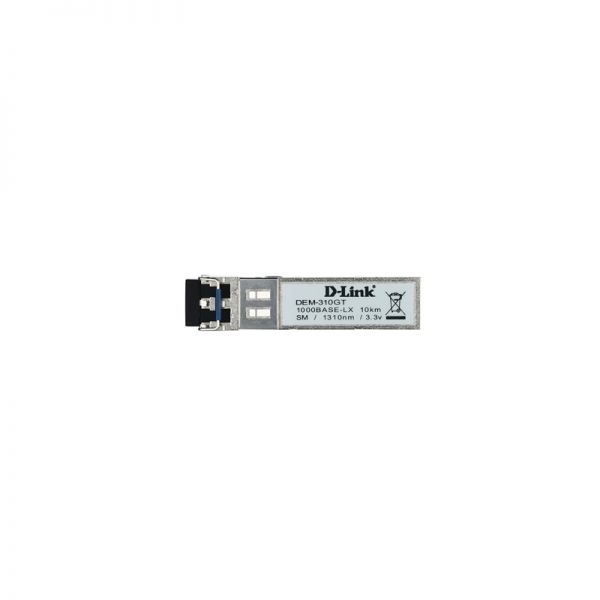

The DEM-310GT is a high-performance 1310 nm single-mode SFP transceiver supporting full-duplex Gigabit speeds for distances of up to 10 km. The unit features a metal housing to reduce EMI and to increase durability.
Quick Specs
Table 1 shows the Quick Specs.
|
Product Name |
DEM-310GT |
|
Transceiver Type |
SFP |
|
Fiber Media Support |
Single-Mode |
|
Speed |
1.25 Gbps |
|
Distance |
10 km |
|
Cable Type |
Single-mode 9 um fiber |
|
Power Supply |
3.3V |
Product Details
D-Link Compatible DEM-310GT Features:
??Maximum distance of up to 10 km
??Hot-pluggable
??Single-mode fiber
??1000BASE-LX (IEEE 802.3z standard)
??Duplex LC connector
??MSA, RoHS-compliant
D-Link Compatible DEM-310GT Applications:
??Gigabit Ethernet
??1x Fiber Channel
??Other optical links
Compare to Similar Items
Table 2 shows the comparison.
|
Product Name |
DEM-310GT |
DEM-311GT |
|
Transceiver Type |
SFP |
SFP |
|
Fiber Media Support |
Single-Mode |
Multi-Mode |
|
Speed |
1.25 Gbps |
1 Gbps |
|
Distance |
10 km |
550 m |
|
Compliant Standard |
IEEE802.3z 1000BASE-LX |
IEEE802.3z 1000BASE-SX |
|
Wave length |
1310 nm |
850 nm |
|
Power Supply |
3.3V |
3.3V |
Before Purchasing
Do you have any question about the DEM-310GT
Contact us – Email Live Chat or [email protected].
DEM-310GT Datasheet
DEM-310GT Specification |
|
|
EMI |
FCC Class B, ICES-003 Class B, CE Class B, VCCI Class B |
|
Safety |
FDA/CDRH, TUV, cUL |
|
Hot Pluggable |
Yes |
|
RoHS Compliant |
Yes |
|
MSA Compliant |
Yes |
|
Hardware version |
F1 |
|
connector |
Duplex LC Connector |
|
single/bi Direction |
single-direction |
|
Wave length |
1310 nm |
|
Output Optical Power (TX Optical Power) |
MAX.: -3 dBm |
|
Interface |
MIN.: – 21 dBm |
|
Input Optical Power (RX Optical Power) |
MAX.: – 3 dBm |
|
Cable Type |
– single-mode 9/125um fiber: reach 10km – multi-mode 50/125um fiber: reach 2km – multi-mode 62.5/125um fiber: reach 550m |
|
Sensitivity |
-21 dBm |
|
Power |
3.3V |
|
Max Input Current |
300mA |
|
Power Budget (MIN Power Budget) |
11.5 dB |
|
MAX Power Budget |
18dB |
|
Heat Generated |
1.78kJ/h |
|
Operation Temperature |
0-70°C |
|
Storage Temperature |
-40-85°C |
|
Humidity (Operating) |
10% ~ 90% |
|
Dimension ( W x D x H ) |
13.4mm x 56.4mm x 10.35mm |
|
Humidity (Storage) |
5% ~ 90% |
|
Weight |
16.5g |
|
Speed |
1Gbps |
|
Compliant Standard |
IEEE-802.3z 1000BASE-LX |
|
Fiber Media support |
Single-Mode |
|
Transceiver Type |
SFP |
|
Fiber Channel FC-PI standard |
100-SM-LC-L |
|
Distance |
10KM |
