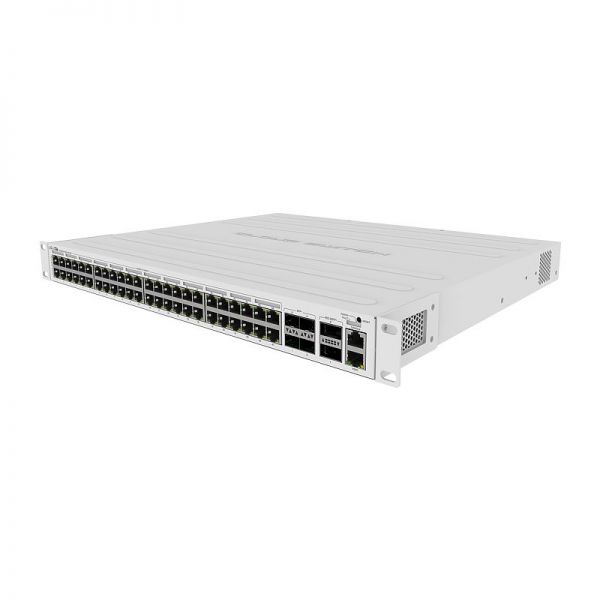

Product Model: Mikrotik CRS354-48P-4S-plus-2Q-plus-RM
Retail Price: US$1,017.45
Email Us To Get Special Price Today: [email protected]
Introducing the Mikrotik CRS354-48P-4S-plus-2Q-plus-RM, the powerhouse of network switches, designed for those in need of reliable power over Ethernet along with exceptional performance. This 48 port champion marks a significant leap in networking technology, offering robustness and versatility with its PoE-out functionality. Ideal for businesses looking to upgrade their network infrastructure, it promises seamless connectivity and enhanced network control.
Quick Spec
| Parameter | Data |
|---|---|
| Ports | 48 PoE-out ports, 4 SFP+ ports, 2 QSFP+ ports |
| Power Supply | 2x IEC C14 power jack (110/220V) |
| Max PoE out per port | Up to 30W |
| Switch Chip Model | 98DX8216 |
| Operating System | RouterOS / SwitchOS (Dual Boot) |
Product Datasheet
- ● Dual-boot capability to switch between RouterOS and SwitchOS
- ● Up to 30W of power per port with advanced PoE management
- ● Total non-blocking throughput: 168 Gbps
- ● Layer 3 functionality in RouterOS for routing applications
- ● 2x 100G QSFP+ ports for ultra-high-speed uplinks
Product Applications
Designed for versatility, the Mikrotik CRS354-48P-4S-plus-2Q-plus-RM serves several application scenarios:
- ● Large-scale office networks requiring power and data over Ethernet to support VoIP phones, wireless access points, and surveillance cameras.
- ● Data center environments where high-speed uplink connections and PoE-out functionalities are imperative for efficient operations.
- ● Educational institutions or hotels needing robust network management capabilities for hundreds of wired and wireless connections.
Supported Options
| Accessory | Model |
|---|---|
| Rackmount Kit | CKM-CRS354 |
| SFP+ Module | S+85DLC03D |
| QSFP+ Module | Q+85MP01D |
Compare to Similar Items
| Model | Differences |
|---|---|
| CRS354-48G-4S+2Q+RM | Non-PoE, fewer SFP+ and QSFP+ ports |
| CRS328-24P-4S+RM | Lesser ports, 24 PoE-out ports, no QSFP+ ports |
| CRS326-24G-2S+RM | Non-PoE, no QSFP+ ports, 24 Ethernet ports, 2 SFP+ ports |
Before Purchasing
For further details about the Mikrotik CRS354-48P-4S-plus-2Q-plus-RM and inquiries about price, reach out to us via Live Chat or at [email protected]. Our team is ready to assist you with all your networking needs!
Mikrotik CRS354-48P-4S-plus-2Q-plus-RM Datasheet
Mikrotik CRS354-48P-4S-plus-2Q-plus-RM Specifications | |
| Brand | Mikrotik |
| Model Name | CRS354-48P-4S-plus-2Q-plus-RM |
| Device Type | Cloud Router Switch with PoE-out |
| Ports | 48 x 10/100/1000 Ethernet with PoE-out |
| SFP+ Ports | 4 |
| QSFP+ Ports | 2 |
| PoE-Out | Supported on all RJ45 ports |
| Max Power Consumption | 800W |
| Operating System | RouterOS / SwitchOS (Dual Boot) |
| CPU | 98DX8216B0 |
| CPU Nominal Frequency | 800 MHz |
| Memory | 1GB |
| Storage Size | 16MB FLASH |
| Power Supply | 2x IEC C14 jack for 100-240V |
| Serial Port | RJ45 |
| Management Port | 1x Out-of-band Ethernet management port |
| Dimensions | 443 x 183 x 44 mm |
| Operating Temperature | -20??C to 60??C |
| Operating Humidity | 5% to 95% non-condensing |
| L3 Hardware Offloading | Yes |
| Supported Voltage Range | 100-240V |
