Product Model: CISCO888-K9 (USED)
Retail Price: US$296.00
Email Us To Get Special Price Now: Julie@corenet.vip
Combine Internet access via G.SHDSL, security, and wireless services onto a single, secure device. The Cisco 888 Integrated Services Router offers broadband speeds and simplified management to small businesses, enterprise small branches, and teleworker.
Quick Specs
Figure 1 shows the appearance of CISCO888-K9.
Table 1 shows the Quick Specs.
|
Product Code |
CISCO888-K9 |
|
Rack Units |
1 RU |
|
WAN Ports |
1 x 10Base-T/100Base-TX – RJ-45 |
|
LAN Ports |
4 x 10/100 Mbps fast Ethernet managed switch ports with optional Power over Ethernet (PoE) on two switch ports |
|
Management Ports |
1 x console – RJ-45 |
|
USB |
1 x 4 PIN USB Type A |
|
DRAM |
256 MB (installed) / 768 MB (max) – DDR2 SDRAM |
|
Flash Memory |
128 MB |
|
Dimensions |
32.5 cm x 24.9 cm x 4.4 cm |
|
Package Weight |
4.84 Kg |
Product Details

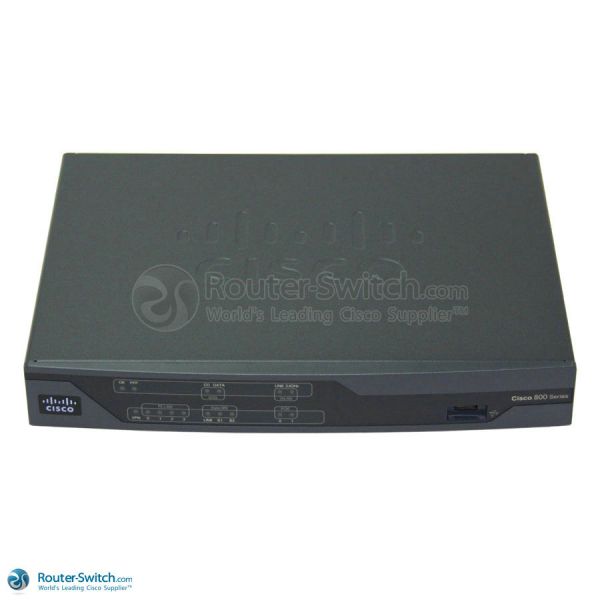

Figure 2 shows the front panel of CISCO888-K9.
Note:
|
① |
LED Area |
|
② |
USB Port for External Device |
· If you need 3G wireless WAN option provided, Cisco 881G series would have a 3G card left beside the USB port, meeting your need.
Figure 3 shows the back panel of CISCO888-K9.
Note:
|
① |
WAN: 1 x 10Base-T/100Base-TX – RJ-45 |
⑤ |
Reset Button |
|
② |
LAN: 4 x 10Base-T/100Base-TX – RJ-45 |
⑥ |
Power Connector |
|
③ |
Management: 1 x console – RJ45 |
⑦ |
Security Cable Lock |
|
④ |
USB: 1 x 4 PIN USB Type A |
⑧ |
Power over Ethernet(Factory Option) |
· Four-port 10/100 Fast Ethernet managed switch with VLAN support; two ports support Power over Ethernet (PoE) for powering IP phones or external access points
· Secure 802.11g/n access-point option based on draft 802.11n standard with support for autonomous or Cisco Unified WLAN architectures
· CON/AUX port for console or external modem
· One USB 1.1 port for security eToken credentials, booting from USB, and loading configuration
More Details:
The Cisco 880 Series provides:
· Firewall
· Content filtering
· VPNs, and WLANs, at broadband speeds to small offices
· Easy deployment
· Centralized management features
Available options on the Cisco 888 Integrated Services Router include:
· Survivable Remote Site Telephony
· Built-in advanced security, including intrusion prevention, GET VPN, and dynamic multipoint VPN (DMVPN)
· Up to 20 VPN tunnels
· Cisco Configuration Professional for simplified management
· WAN connection with multiple access options
· Business continuity with primary and backup connections on the Cisco 880 router, including third-generation wireless and ISDN
· Four 10/100 Mbps fast Ethernet managed switch ports with optional Power over Ethernet (PoE) on two switch ports
· Integrated access points based on the IEEE 802.11n draft 2.0 standard that uses MIMO (multiple-input, multiple-output) to improve coverage for existing and new clients
· Cisco Unified Wireless Management
· Universal software image for easy expansion with software activation
The Accessories
Table 2 shows the recommended accessories of CISCO888-K9
|
Items |
Description |
|
CAB-AC= |
CAB-AC= AC Power Cord (North America), C13, NEMA 5-15P, 2.1m |
|
CAB-ETH-S-RJ45 |
Cisco Router Cable CAB-ETH-S-RJ45 |
Compare to Similar Item
Table 3 shows the comparison between CISCO888-K9 and CISCO891-K9.
|
Models |
CISCO888-K9 |
CISCO891-K9 |
|
Product Type |
Router – 4-port switch (integrated) |
Router + 8-port switch (integrated) |
|
DRAM |
256 MB (installed) / 768 MB (max) – DDR2 SDRAM |
512 MB (installed) / 768 MB (max) – DDR2 SDRAM |
|
Flash Memory |
128 MB |
256 MB (installed) / 256 MB (max) |
Get more information
Do you have any question about the CISCO888-K9 router
Contact us now via Live Chat or Julie@corenet.vip.
Specification
CISCO888-K9 (USED) Datasheet
CISCO888-K9 Specification |
|
|
Product Description |
Cisco 888 G.SHDSL Router with ISDN backup – router |
|
Manufacturer |
Cisco Systems, Inc |
|
Manufacturer Part Number |
CISCO888-K9 |
|
Product Type |
Router + 4-port switch (integrated) |
|
Form Factor |
External |
|
Dimensions (WxDxH) |
32.5 cm x 24.9 cm x 4.4 cm |
|
DRAM Memory |
256 MB (installed) / 768 MB (max) – DDR2 SDRAM |
|
Flash Memory |
128 MB |
|
Routing Protocol |
OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, PIM-SM, GRE |
|
Data Link Protocol |
Ethernet, Fast Ethernet |
|
Network / Transport Protocol |
L2TP, IPSec, PPPoE, PPPoA |
|
Remote Management Protocol |
Telnet, SNMP 3, HTTP, HTTPS |
|
Features |
Cisco IOS Advanced Security , NAT support, power over Ethernet (PoE), VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Stateful Packet Inspection (SPI), content filtering, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, Intrusion Prevention System (IPS), Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Access Control List (ACL) support, Quality of Service (QoS), Link Fragmentation and Interleaving (LFI), DHCP server |
|
Compliant Standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x |
|
Power |
AC 120/230 V ( 50/60 Hz ) |
