Product Model: NCS-57C1-48Q6-SYS
Retail Price: US$9,452.89
Email Us To Get Special Price Now: [email protected]

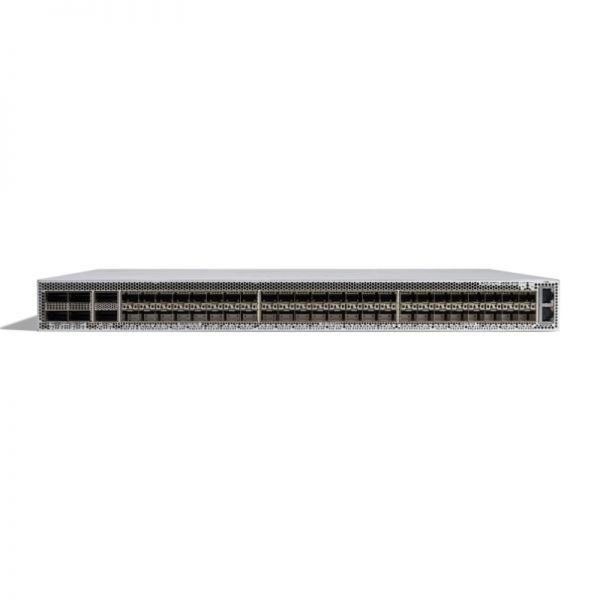

The Cisco NCS-57C1-48Q6-SYS is a cutting-edge networking solution ideal for large enterprises and service providers. This base chassis features flexible consumption options via Smart Licensing, allowing for scalable and adaptive deployment. It is perfect for data-intensive applications needing high performance and reliability.
NCS-57C1-48Q6-SYSProduct Datasheet
- ● Flexible Consumption Licensing
- ● High Performance
- ● Scalable Deployment
- ● Robust Reliability
- ● Service Provider Ready
Product Features Comparison
| Model | Port Density | Form Factor | Throughput | Power Consumption | Smart Licensing |
|---|---|---|---|---|---|
| Cisco NCS-57C1-48Q6-SYS | 48 x 40/100G | 1RU | Up to 6 Tbps | Low | Yes |
| Cisco ASR 9001 | 12 x 10G | 2RU | 240 Gbps | Moderate | No |
| Cisco NCS 5508 | Line card slots | 8RU | 36 Tbps | High | Yes |
| Juniper MX960 | Up to 480 x 10G | 16RU | 9.92 Tbps | High | No |
| Arista 7280QR-C36 | 36 x 40G | 1RU | 2.88 Tbps | Low | No |
| Huawei NE40E-X8A | 64 x 100G | 21RU | 48 Tbps | High | No |
NCS-57C1-48Q6-SYS Product Application Scenarios
- ● Service provider core network
- ● Data center interconnects
- ● Large enterprise WANs
Optional Add-ons
| Model | Description |
|---|---|
| QSFP-4X10G-LR-S | 40GBASE-LR4 QSFP+ Transceiver Module |
| NCS-C2C-FAN | Cooling Fan Module |
| NCS-57C1-DC-PWR | DC Power Supply Module |
Get More Information
Discover unbeatable prices and fast shipping for the Cisco NCS-57C1-48Q6-SYS. Access the detailed NCS-57C1-48Q6-SYS datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].
Specification
NCS-57C1-48Q6-SYS Datasheet
NCS-57C1-48Q6-SYS Specifications | |
| Brand | Cisco |
| Model | NCS-57C1-48Q6-SYS |
| Type | Base Chassis |
| Interface Ports | 48 x 100G QSFP28 |
| Rack Units | 1U |
| Data Transfer Rate | Up to 4.8 Tbps |
| Power Supply | Dual Redundant, 1+1 |
| Cooling | Front-to-Back or Back-to-Front Airflow |
| Operating Temperature | -5??C to 40??C |
| Storage Temperature | -40??C to 70??C |
| Relative Humidity | 5% to 95% non-condensing |
| Smart Licensing | Flexible Consumption Need Smart Lic |
| Dimensions | 44.45 mm (H) x 442.06 mm (W) x 660.4 mm (D) |
| Power Consumption | 800W (maximum) |
| Switching Capacity | Up to 4.8 Tbps |
| Forwarding Rate | Up to 1,488 Mpps |
| Input Voltage | 100 to 240 VAC |
| MTBF | Over 200,000 hours |
| Compliance | RoHS, CE Mark |
| Performance Scaling | Flexible with Modular Line Cards |
| Manageability | CLI, SNMP, NETCONF, Telemetry |
