Product Model: NC55-MPA-4H-HD-S
Retail Price: US$29,941.89
Email Us To Get Special Price Now: [email protected]

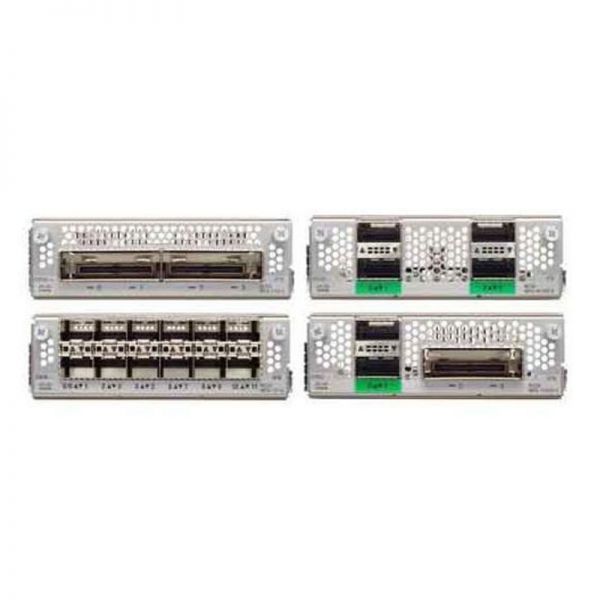

Cisco’s NC55-MPA-4H-HD-S is an advanced component of the NCS 5500 series, featuring 4X100G QSFP28 ports. Its temperature-hardened design provides enhanced durability, making it ideal for demanding network environments. Targeting network engineers and data center professionals, this product ensures high-speed, reliable connectivity for robust networking solutions.
NC55-MPA-4H-HD-SProduct Datasheet
- ● Temp-hardened design
- ● 4x100G QSFP28 ports
- ● NCS 5500 series
- ● Enhanced durability
- ● High-speed connectivity
Product Features Comparison
| Model | Cisco NC55-MPA-4H-HD-S | Cisco NC55-MPA-B | Cisco NC55-MPA-H | Cisco NC55-MPA-24H-B | Cisco NC55-MPA-8H | Cisco NC55-MPA-12H | Cisco NC55-MPA-20H |
|---|---|---|---|---|---|---|---|
| Port Speed | 4x100G QSFP28 | 100G | 100G | 24x100G | 8x100G | 12x100G | 20x100G |
| Temperature Hardened | Yes | No | Yes | No | No | No | No |
| Series | NCS 5500 | NCS 5500 | NCS 5500 | NCS 5500 | NCS 5500 | NCS 5500 | NCS 5500 |
| Form Factor | Modular | Modular | Modular | Modular | Modular | Modular | Modular |
| Usage Scenario | High-traffic networks | General usage | High-traffic networks | Heavy-loaded environments | Medium-loaded networks | Medium-loaded networks | Heavy-loaded environments |
| Durability | Enhanced | Standard | Enhanced | Standard | Standard | Standard | Standard |
NC55-MPA-4H-HD-S Product Application Scenarios
- ● High-traffic network routing
- ● Data center interconnect
- ● Robust enterprise networking
Optional Add-ons
| Accessory | Model | Description |
|---|---|---|
| Transceiver Module | QSFP-100G-SR4-S | 100G QSFP Transceiver Module |
| Cable | QSFP-100G-CU1M | 100G QSFP Direct Attach Copper Cable |
| Network Module | NIM-2T | 2-Port Serial WAN Interface Module |
Get More Information
Discover unbeatable prices and fast shipping for the Cisco NC55-MPA-4H-HD-S. Access the detailed NC55-MPA-4H-HD-S datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].
Specification
NC55-MPA-4H-HD-S Datasheet
NC55-MPA-4H-HD-S Specifications | |
| Brand | Cisco |
| Model | NC55-MPA-4H-HD-S |
| Product Series | NCS 5500 |
| Port Configuration | 4 x 100G QSFP28 |
| Form Factor | Modular Port Adapter (MPA) |
| Temperature Range | Temp-hardened |
| Interface | QSFP28 |
| Operating Temperature | -40??C to 65??C |
| Storage Temperature | -40??C to 70??C |
| Power Consumption | Max 45W |
| Data Rate | 100 Gbps per port |
| Relative Humidity | 5% to 95% non-condensing |
| Dimensions (H x W x D) | 1.72 in x 7.25 in x 11.5 in |
| MTBF | 1,200,000 hours |
| Regulatory Compliance | CE, FCC, UL, RoHS |
| Supported Optics | 100GBASE-SR4, 100GBASE-LR4, 100GBASE-ER4 |
| Cooling | Front-to-back airflow |
| LED Indicators | Port status, power, and link status |
| Management | CLI, SNMP, NETCONF |
| Warranty | 5-year limited |
| Memory | 1GB |
