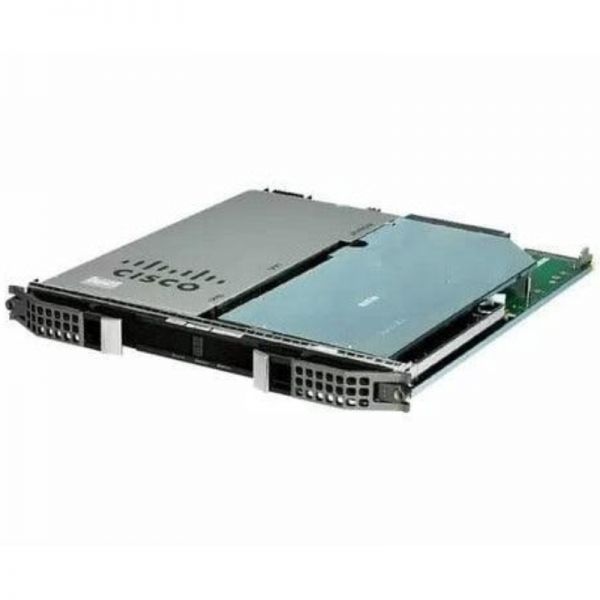

Product Model: CBR-D31-DS-MOD
Retail Price: US$7,341.90
Email Us To Get Special Price Now: [email protected]
Cisco’s CBR-D31-DS-MOD, also known as the D3.1 DS Module, enhances cable broadband solutions with advanced data stream capabilities. Ideal for ISPs and enterprise networks, it ensures high-speed, reliable data transmission and greater bandwidth management, making it perfect for high-volume data environments and demanding network applications.
CBR-D31-DS-MODProduct Datasheet
- ● DOCSIS 3.1 compliant
- ● High data throughput
- ● Advanced modulation support
- ● Seamless integration
- ● Enhanced bandwidth management
Product Features Comparison
| Model | DOCSIS Standard | Downstream QAM Channels | Upstream QAM Channels | Data Throughput | Modulation Support |
|---|---|---|---|---|---|
| CBR-D31-DS-MOD | DOCSIS 3.1 | 32 | 8 | 10 Gbps | 64/256-QAM |
| ARRIS E6000 | DOCSIS 3.0 | 24 | 4 | 8 Gbps | 64-QAM |
| Huawei EA5801 | DOCSIS 3.1 | 32 | 8 | 10 Gbps | 256-QAM |
| Nokia G-240W-C | DOCSIS 3.1 | 32 | 8 | 10 Gbps | 64/256-QAM |
| ZTE ZXHN H198A | DOCSIS 3.1 | 32 | 8 | 10 Gbps | 64-QAM |
CBR-D31-DS-MOD Product Application Scenarios
- ● High-volume ISP data centers
- ● Enterprise network infrastructure
- ● Residential broadband services
Optional Add-ons
| Model | Description |
|---|---|
| CBR-PWR-720W | 720W AC Power Supply |
| CBR-KIT-MOUNT-19IN | 19-Inch Rack Mount Kit |
| CBR-FAN-MOD | Fan Module |
Get More Information
Discover unbeatable prices and fast shipping for the Cisco CBR-D31-DS-MOD. Access the detailed Cisco CBR-D31-DS-MOD datasheet and ensure you’re getting the best deal with our reliable delivery service. Need assistance? Our free live chat support is here to help. For more information about the product and pricing, contact us via live chat or email us at [email protected].
Specification
CBR-D31-DS-MOD Datasheet
CBR-D31-DS-MOD Specifications | |
| Model | CBR-D31-DS-MOD |
| Brand | Cisco |
| Type | DS Module |
| Technology Standard | DOCSIS 3.1 |
| Max Downstream Channels | 32 |
| Downstream Frequency Range | 108 MHz to 1218 MHz |
| Input Impedance | 75 Ohms |
| Power Consumption | 45 Watts |
| Form Factor | Plug-in Module |
| Dimensions (H x W x D) | 1.2 in x 5.4 in x 10.2 in |
| Operating Temperature | 0??C to 50??C (32??F to 122??F) |
| Storage Temperature | -20??C to 70??C (-4??F to 158??F) |
| Humidity Range | 5% to 85%, non-condensing |
| Signal Level | -15 dBmV to +15 dBmV |
| Noise Figure | Less than 8 dB |
| Connector Type | F-type Female |
| FCC Compliance | Yes |
| RoHS Compliance | Yes |
| Warranty | 1 Year Limited |
| Included Accessories | Installation Guide |
