Product Model: C6880-X-LE
Retail Price: US$32,855.00
Email Us To Get Special Price Today: [email protected]
Cisco Catalyst 6800 switch chassis, 5RU, Super 2T Engine, no PS, no Fan Tray.
The Cisco Catalyst 6880-X Series offers primary features and benefits, including:
* Support of Catalyst Instant Access is available on 15.1(2) SY2 and later releases.
Quick Specs

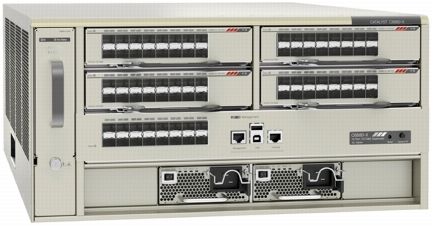

Figure 1 shows the appearance of C6880-X-LE.
Table 1 shows the Quick Specs.
|
Product Code |
C6880-X-LE |
|
Number of port card slots |
4 |
|
Switching Capacity |
Up to 2Tbps |
|
Inches |
8.75x 17.35 x 23 |
|
Centimeters |
22.23 X 44.07 X 58.42 |
|
Rack units (RU) |
4.85 |
The Modules, Cards, Licenses
Table 2 shows the recommended elements for the C6880-X-LE.
|
Category |
Model |
Description |
|
SFP 10G Options ? |
SFP-10G-SR-S |
10GBASE-SR SFP Module, Enterprise-Class |
|
SFP-10G-ZR |
Cisco 10GBASE-ZR SFP10G Module for SMF |
|
|
SFP-10G-LR |
10GBASE-LR SFP+ Module for SMF 10 Gbps |
|
|
GLC Options |
GLC-ZX-SMD |
1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
|
GLC-BX-D |
1000BASE-BX SFP, 1490NM |
|
|
Line Cards ? |
C6880-X-16P10G |
Cisco Catalyst 6880-X Multi Rate Port Card (XL Tables) More |
|
Accessories ? |
CAB-CONSOLE-RJ45 |
Console Cable 6ft with RJ45 and DB9F |
Compare to Similar Items
Table 3 shows the comparison of C6880-X and C6880-X-LE.
|
Attribute |
C6880-X-LE |
C6880-X |
|
MAC entries |
128K |
128K |
|
Routes |
256K (IPv4) 128K (IPv6) |
2048K (IPv4) 1024K (IPv6) |
|
ACL entries |
64K shared for QoS/Security |
256K shared for QoS/Security |
|
NetFlow entries |
512K (per module slot) Up to 2.5M per system |
1024K (per module slot) Up to 5M per system |
|
Multicast routes |
128K (IPv4) 128K (IPv6) |
128K (IPv4) 128K (IPv6) |
|
IPv4 routing |
In hardware Up to 300 Mpps |
In hardware Up to 300 Mpps |
|
IPv6 routing |
In hardware Up to 150 Mpps |
In hardware Up to 150 Mpps |
|
L2 bridging |
In hardware Up to 300 Mpps |
In hardware Up to 300 Mpps |
|
Jumbo frame support |
Up to 9216 bytes (For bridged and routed pkts.) |
Up to 9216 bytes (For bridged and routed pkts.) |
|
VLAN |
4K |
4K |
|
Bridge domains |
16K |
16K |
|
MPLS |
In hardware (up to 8192 VRFs at 300 Mpps) |
In hardware (up to 8192 VRFs at 300 Mpps) |
|
Logical interfaces |
128K |
128K |
|
EtherChannel hash |
8 bits |
8 bits |
|
VPLS |
In hardware (up to 150 Mpps) |
In hardware (up to 150 Mpps) |
|
GRE |
In hardware (up to 150 Mpps) |
In hardware (up to 150 Mpps) |
|
NAT |
Hardware assisted |
Hardware assisted |
|
Onboard memory |
2GB* |
4GB |
|
Ingress buffers |
1.25MB per 10G port in 2:1 mode 2.5MB per 10G port in 1:1 mode (10MB per Port ASIC) |
1.25MB per 10G port in 2:1 mode 2.5MB per 10G port in 1:1 mode (10MB per Port ASIC) |
|
Egress buffers |
24MB per 10G port in 2:1 mode 48MB per 10G port in 1:1 mode (192MB per MUX FPGA) |
24MB per 10G port in 2:1 mode 48MB per 10G port in 1:1 mode (192MB per MUX FPGA) |
|
Oversubsription |
16P 10G at 2:1 in oversubscription mode (default) for base module and port cards 8P 10G at 1:1 in performance mode (configurable) for base module and port cards |
|
Before Purchasing
Do you have any?question about?the?C6880-X-LE
Contact us – Email Live Chat or [email protected].
C6880-X-LE Datasheet
C6880-X Specification |
|
|
Number of port card slots |
4 |
|
Switching Capacity |
Up to 2Tbps |
|
Performance |
The chassis is capable of supporting up to 220 Gbps per port card slot. The 16 port 10G port cards and the base module will support 80 Gbps. |
|
Maximum Port Density Per Chassis |
Up to 80 x 10 Gigabit Ethernet ports Up to 80x 1 Gigabit Ethernet ports |
|
Maximum Port Density (VSS) |
Up to 158x 10 Gigabit Ethernet ports Up to 158x 1 Gigabit Ethernet ports |
|
Power Supply Compatibility |
AC: 3000W, DC: 3000W |
|
Module Compatibility |
All modules based on the software release in the system |
|
Reliability and Availability |
|
|
Online Insertion and Removal (OIR) |
OIR supported for redundant power supplies and port cards. |
|
Physical dimensions (H x W x D) |
|
|
Inches |
8.75x 17.35 x 23 |
|
Centimeters |
22.23 X 44.07 X 58.42 |
|
Rack units (RU) |
4.85 |
|
Weight |
|
|
Chassis with 2 power supplies and fan tray |
64 lbs/29.03 kgs |
|
Chassis with 2 power supplies, fan tray with four port cards |
88 lbs/39.92 kgs |
|
Input Voltage |
100 to 240 VAC -48 to -60 VDC |
|
Safety |
UL 60950 Second Edition CAN/CSA-C22.2 No. 60950 Second Edition EN 60950 Second Edition IEC 60950 Second Edition AS/NZS 60950 |
|
EMC |
FCC Part 15 (CFR 47) Class A VCCI Class A EN55022 Class A CISPR 22 Class A CE marking AS/NZS 3548 Class A ETS300 386 EN55024 EN61000-6-1 EN50082-1 |
|
NEBS/ETSI |
GR-1089-Core NEBS Level 3 ETS 300 019 Storage Class 1.1 ETS 300 019 Transportation Class 2.3 ETS 300 019 Stationary Use Class 3.1 |
|
ATIS Pb free and Energy efficiency |
ATIS-0600020.2010 Pb Free circuit packs ATIS-0600015-2009 General Energy Efficiency Requirements (TEER) ATIS-0600015.03-2009 Switch and Router Energy Efficiency ATIS-0600015.01-2009 Server Energy Efficiency VZ.TPR.9205 Verizon Energy Efficiency Requirements for Telecommunication Equipment (TEEER) |
|
Network Management |
ETHERLIKE-MIB (RFC 1643) IP-MIB and IP-FORWARD-MIB for IPv6 IF-MIB (RFC 1573) Bridge MIB (RFC 1493) CISCO-STACK-MIB CISCO-VTP-MIB CISCO-CDP-MIB RMON MIB (RFC 1757) CISCO-PAGP-MIB CISCO-STP-EXTENSIONS-MIB CISCO-VLAN-BRIDGE-MIB CISCO-VLAN-MEMBERSHIP-MIB ENTITY-MIB (RFC 2037) HC-RMON RFC1213-MIB (MIB-II) SMON-MIB |
|
Operating Environment |
|
|
Operating Temperature |
32°F to 104°F (0 to 40°C) |
|
Storage Temperature |
-4 to 149°F (-20 to 65°C) |
|
Thermal Transition |
0.5°C per minute (hot to cold) 0.33°C per minute (cold to hot) |
|
Relative Humidity |
Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
|
Operating Altitude |
Certified for operation: 0 to 6500 ft (0 to 2000 m) Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m) |
