Product Model: C6807-XL
Retail Price: US$9,133.00
Email Us To Get Special Price Today: [email protected]
Catalyst 6807-XL 7-slot chassis, 10RU (spare).This C6807-XL is similar with the C6807-XL=. The C6807-XL= is a spare one.
Quick Specs

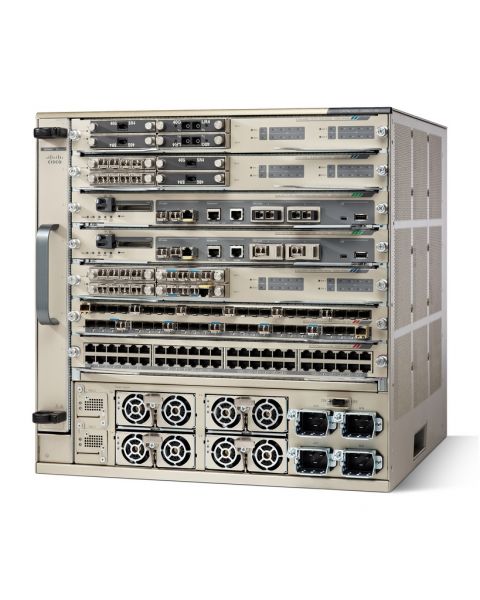

Figure 1 shows the appearance of C6807-XL.
Table 1 shows the Quick Specs.
|
Product Code |
C6807-XL |
|
Number of slots |
7 |
|
Number of Supervisor Engine Slots |
2 |
|
Number of Module Slots |
5 |
|
redundant supervisor engines |
Yes |
|
system bandwidth capacity? |
up to 11.4 terabits per second (Tbps)? |
|
?per-slot bandwidth for all slots |
440 Gbps? |
|
Rack units (RU) |
10 |
|
Power Supply Compatibility |
AC: 3000W (up to 4 power supplies) |
|
Operating temperature (T-T) |
32 – 104 ?°F |
|
redundant power supply modules |
Yes(AC input) |
|
Input Voltage |
100 to 240 VAC -48 to -60 VDC |
|
Physical Dimensions (H x W x D) |
¡¤Inches£º17.45 x 17.37 x 18.1 ¡¤Centimeters£º44.3 x 44.1 x 46 |
|
Weight |
¡¤Chassis Only (lbs)£º62 ¡¤Fully Configured (lbs)£º185 |
Product Details
Figure 2 shows the Cisco Catalyst 6807-XL Front Panel.
Note:
|
¢Ù |
Fan tray |
|
¢Ú |
Supervisor engine slot |
|
¢Û |
Supervisor engine slot |
|
¢Ü |
System ground connector |
|
¢Ý |
Power supply converter (PSC), labeled PSC1 and PSC2 |
|
¢Þ |
Power supply modules (PSMs), labeled 1 through 4 |
|
¢ß |
Power entry modules (PEMs), labeled AC1 through AC4 |
|
¢à |
Module slots (line cards) 1, 2, 5,6, and 7 |
¡¤Fan Tray, Sup6T and 2 Power Supplies are provided in the C6807-XL, other module are not included in the C6807-XL; they are ordered separately.
The Power
Table 2 shows the recommended elements for the C6807-XL.
|
Category |
Model |
Description |
|
Power |
C6800-XL-3KW-AC |
Catalyst 6807-XL 3000W Power Supply |
Compare to Similar Items
Table 3 shows the comparison of C6807-XL and C6880-X-LE.
|
Product Code |
C6807-XL |
C6880-X-LE |
|
Product Type |
Switch Chassis |
Switch Chassis |
|
Rack units |
10RU |
5RU |
|
Supervisor engines |
Super 2T Engine |
Super 2T Engine |
|
redundant power supply modules |
Yes(AC input) |
Yes |
|
Input Voltage |
100 to 240 VAC -48 to -60 VDC |
110 V AC? |
Before Purchasing
Do you have any question about the Cisco C6807-XL
Contact us – Email Live Chat or [email protected].
C6807-XL Datasheet
C6807-XL= Specification |
|
|
Number of Slots |
7 |
|
Number of Supervisor Engine Slots |
2 |
|
Number of Module Slots |
5 |
|
Supervisor Compatibility |
C6800-SUP6T C6800-SUP6T-XL VS-S2T-10G VS-S2T-10G-XL |
|
Module Compatibility |
C6800-32P10G C6800-32P10G-XL C6800-16P10G C6800-16P10G-XL C6800-8P10G C6800-8P10G-XL WS-X6904-40G-2T WS-X6904-40G-2TXL WS-X6908-10G-2T WS-X6908-10G-2TXL WS-X6816-10G-2T WS-X6816-10G-2TXL WS-X6816-10T-2T WS-X6816-10T-2TXL WS-X6848-SFP-2T WS-X6848-SFP-2TXL WS-X6824-SFP-2T WS-X6824-SFP-2TXL WS-X6848-TX-2T WS-X6848-TX-2TXL WS-X6704-10GE (with CFC or DFC4) WS-X6748-GE-TX (with CFC or DFC4) WS-X6748-SFP (with CFC or DFC4) WS-X6724-SFP (with CFC or DFC4) WS-X6716-10G-3C (with DFC4) WS-X6716-10G-3CXL (with DFC4XL) WS-X6716-10T-3C (with DFC4) WS-X6716-10T-3CXL (with DFC4XL) NAM3 ASA-SM WiSM2 ACE30 |
|
Performance |
The chassis is capable of up to 440 Gbps per slot The performance of the individual modules is available in the module data sheets. |
|
Power Supply Compatibility |
AC: 3000W (up to 4 power supplies) |
|
Reliability and Availability |
|
|
Online Insertion and Removal (OIR) |
OIR of the following components: supervisor engines, line card modules, power supplies, and fan tray |
|
MIBs |
Check the supervisor engine data sheet |
|
Network Management |
Check the supervisor engine data sheet |
|
Physical Dimensions (H x W x D) |
|
|
Inches |
17.45 x 17.37 x 18.1 |
|
Centimeters |
44.3 x 44.1 x 46 |
|
Rack units (RU) |
10 |
|
Weight |
|
|
Chassis Only (lbs) |
62 |
|
Fully Configured (lbs) |
185 |
|
Input Voltage |
100 to 240 VAC -48 to -60 VDC |
|
Safety |
UL 60950 Second Edition CAN/CSA-C22.2 No. 60950 Second Edition EN 60950 Second Edition IEC 60950 Second Edition AS/NZS 60950 |
|
EMC |
FCC Part 15 (CFR 47) Class A VCCI Class A EN55022 Class A CISPR 22 Class A CE marking AS/NZS 3548 Class A ETS300 386 EN55024 EN61000-6-1 EN50082-1 |
|
ETSI |
ETS 300 019 Storage Class 1.1 ETS 300 019 Transportation Class 2.3 ETS 300 019 Stationary Use Class 3.1 |
|
Operating Environment |
|
|
Operating Temperature |
32°F to 104°F (0 to 40°C) |
|
Storage Temperature |
-4 to 149°F (-20 to 65°C) |
|
Thermal Transition |
0.5°C per minute (hot to cold) 0. 33°C per minute (cold to hot) |
|
Relative Humidity |
Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% |
|
Operating Altitude |
Certified for operation: 0 to 6500 ft (0 to 2000 m) Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m) |
